B-63944EN-1/02 PROGRAMMING 5.COMPENSATION FUNCTION

- 167 -

- Positive/negative cutter compensation value and tool center path

If the compensation value is negative (–), distribution is made for a

figure in which G41's and G42's are all replaced with each other on

the program. Consequently, if the tool center is passing around the

outside of the workpiece, it will pass around the inside, and vice versa.

Fig. 5.3 (d) shows one example.

Generally, the compensation value is programmed to be positive (+).

When a tool path is programmed as in <1>, if the compensation value

is made negative (–), the tool center moves as in <2>, and vice versa.

Consequently, the same program permits cutting both male and female

shapes, and any gap between them can be adjusted by the selection of

the compensation value.

Applicable if start-up and cancel is A type. (See the descriptions

about the start-up of cutter compensation.)

<1>

<2>

Programmed path

Tool center path

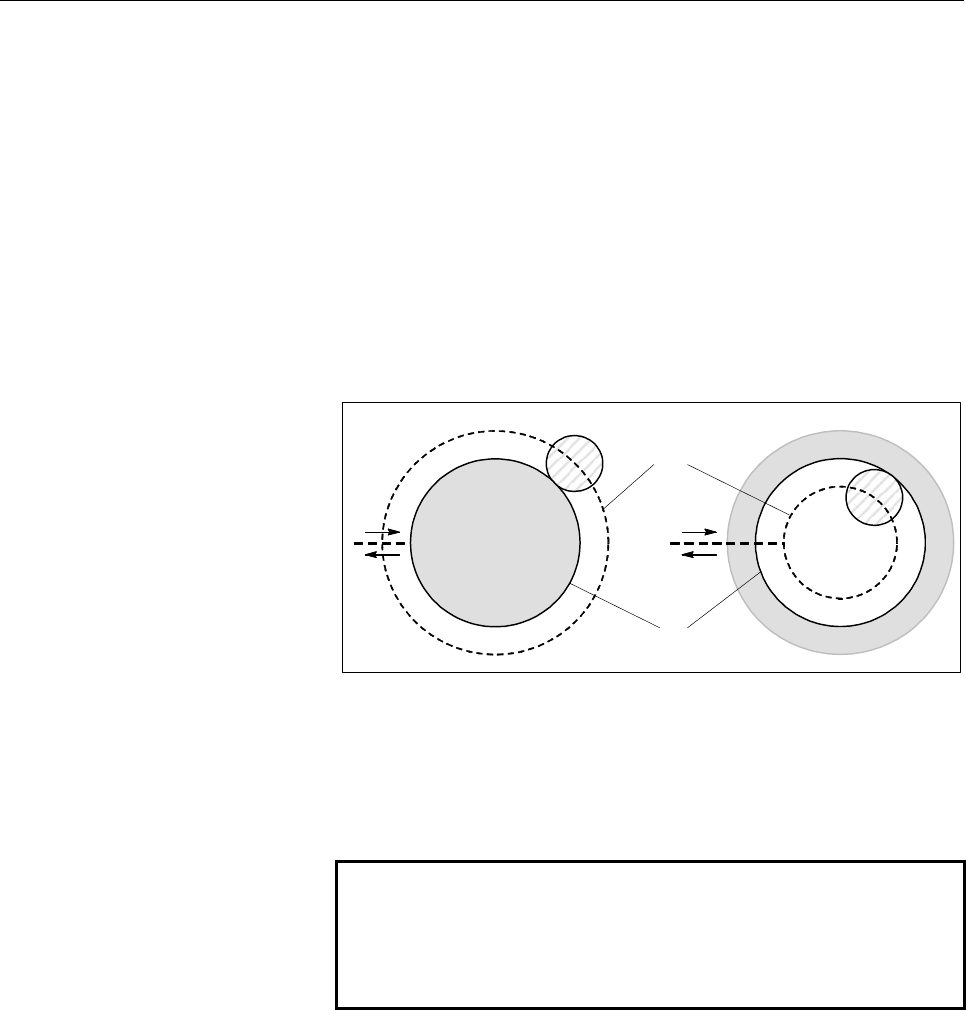

Fig. 5.3 (d) Tool center paths when positive and negative cutter

compensation values are specified

- Cutter compensation value setting

Assign a cutter compensation values to the T codes on the MDI panel.

NOTE

The cutter compensation value for which the T code

corresponds to 0 always means 0.

It is not possible to set the cutter compensation

value corresponding to T0.
