B-63944EN-1/02 PROGRAMMING 4.FUNCTIONS TO SIMPLIFY PROGRAMMING

- 63 -

Cuts the workpiece at the cutting feedrate and escapes to the direction

of 45 degrees. (Operation 19)

Then, moves to the height of point D in rapid traverse. (Operation

20)

Then, moves to the position the amount of g before point D.

(Operation 21)

Finally, moves to point D in cutting feed.

The clearance g to the cutting feed start position is set in parameter No.

5134.

For the last pocket, after cutting the bottom, the tool escapes to the

direction of 45 degrees and returns to the start point in rapid traverse.

(Operations 34 and 35)

CAUTION

1 This CNC differs from the FANUC Series

16i/18i/21i in cutting of a pocket.

The tool first cuts the nearest pocket to the start

point. After cutting of the pocket terminates, the

tool moves to the nearest but one pocket and starts

cutting.

2 When the figure has a pocket, generally specify a

value of 0 for ∆w (finishing allowance). Otherwise,

the tool may dig into the wall on one side.

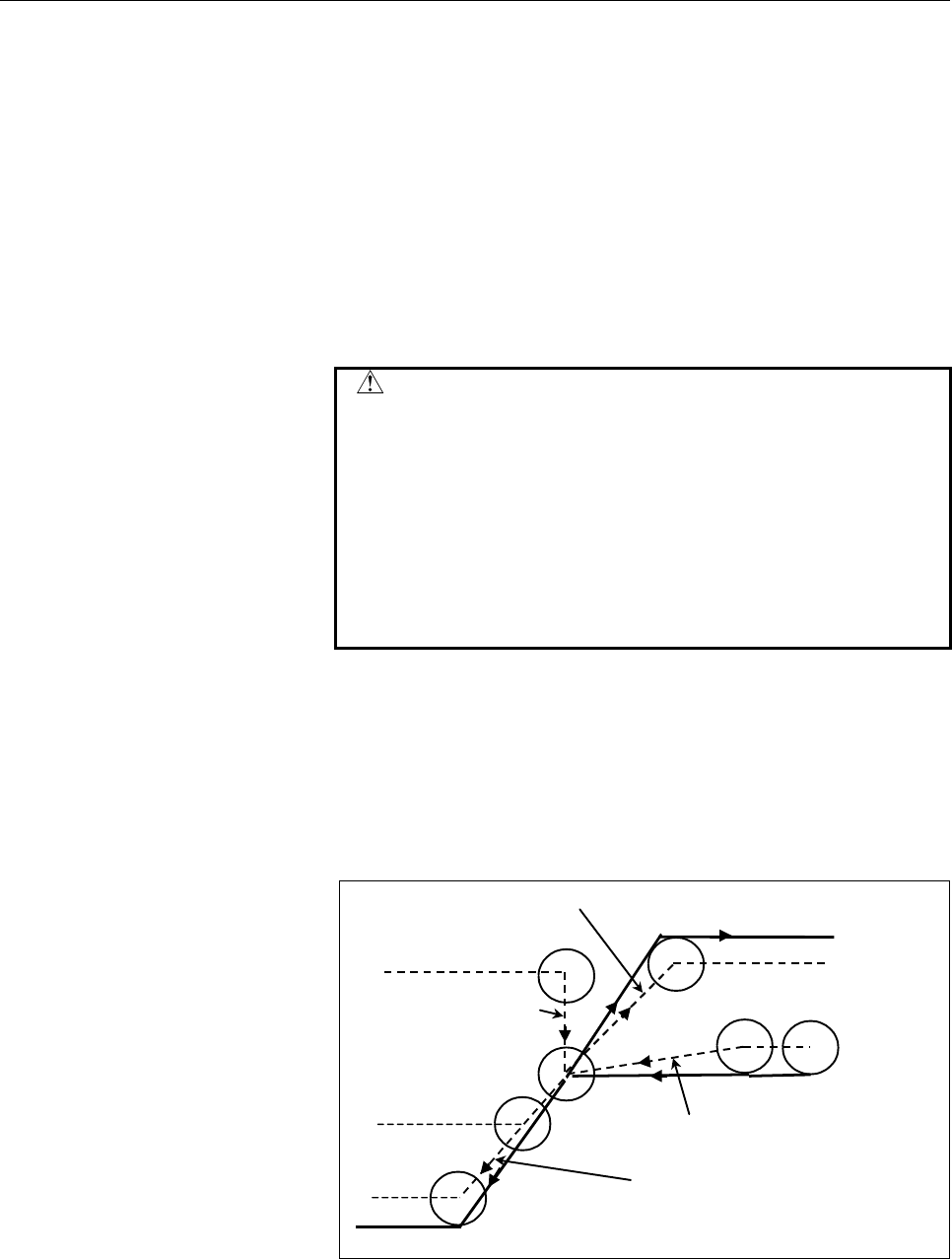

- Tool nose radius compensation

When this cycle is specified in the tool nose radius compensation

mode, offset is temporarily canceled during movement to the start

point. Start-up is performed in the first block. Offset is temporarily

canceled again at the return to the cycle start point after termination of

cycle operation. Start-up is performed again according to the next

move command. This operation is shown in the figure below.

Cycle start point

Start-up

Offset cancel

Start-up

Offset cancel
