5.COMPENSATION FUNCTION PROGRAMMING B-63944EN-1/02

- 222 -

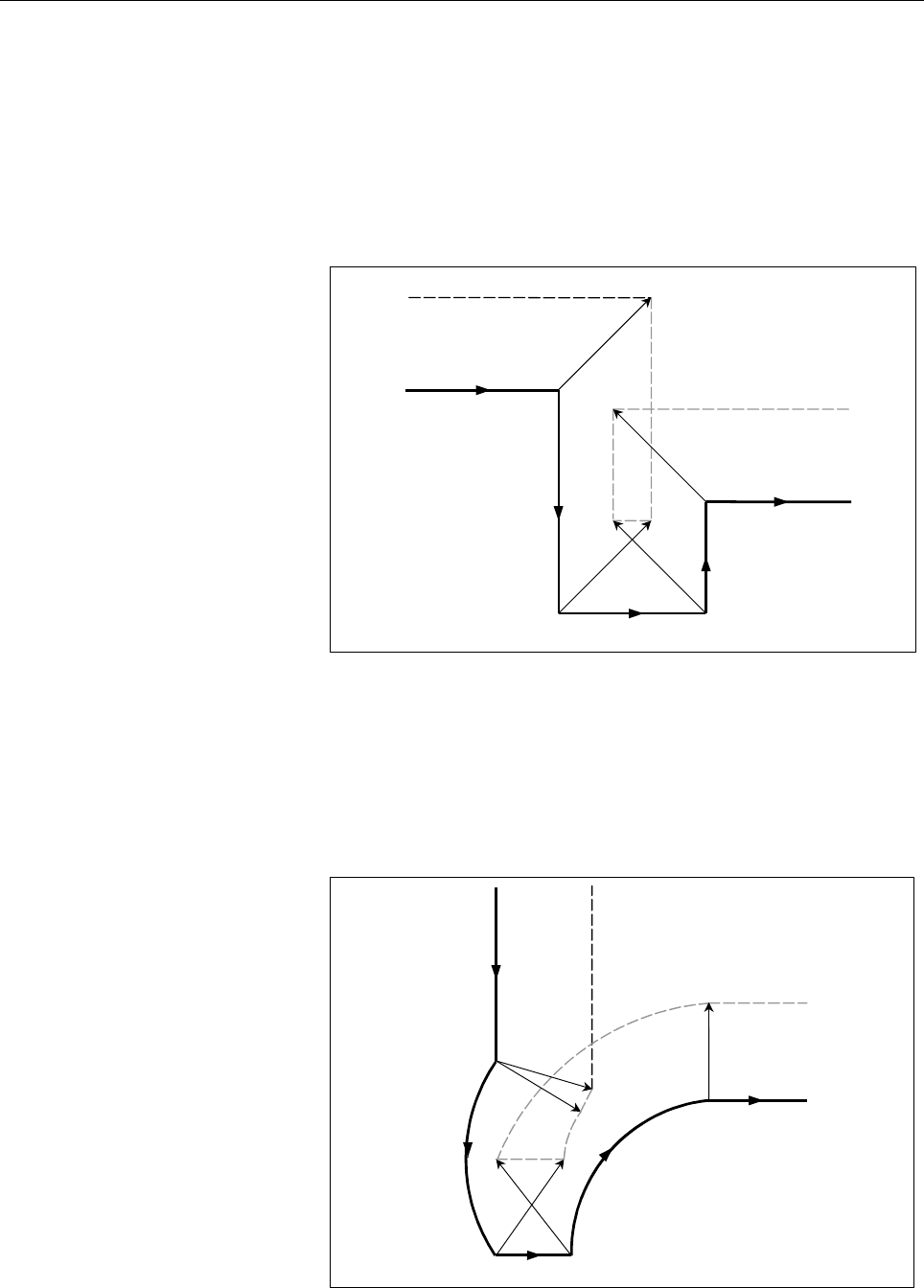

- If no interference avoidance vector exists

If the parallel pocket shown in the figure is to be machined, the

end-point vector of block 1 and the end-point vector of block 2 are

judged to interfere, and an attempt is made to calculate, as an

interference avoidance vector, the intersection vector of the

post-compensation path of block 1 and the post-compensation path of

block 3. In this case, because blocks 1 and 3 are parallel to each

other, no intersection exists. In this case, an alarm will occur

immediately before block 1 and the tool will stop.

Block 1

Block 2

Block 3

Programmed path

Tool center path

Stopped

If the circular pocket shown in the figure is to be machined, the

end-point vector of block 1 and the end-point vector of block 2 are

judged to interfere, and an attempt is made to calculate, as an

interference avoidance vector, the intersection vector of the

post-compensation path of block 1 and the post-compensation path of

block 3. In this case, because blocks 1 and 3 are circular, no

post-compensation intersection exists. In this case, an alarm will

occur immediately before block 1 and the tool will stop, as in the

previous example.

Programmed path

Tool center path

Block

Block 2

Block 3

Stopped
