B-63944EN-1/02 PROGRAMMING 5.COMPENSATION FUNCTION

- 189 -

- When the center of the arc is identical with the start point or the end position

If the center of the arc is identical with the start point or end point,

alarm PS0041 is displayed, and the tool will stop at the start point of

the preceding block of the arc.

(G41)

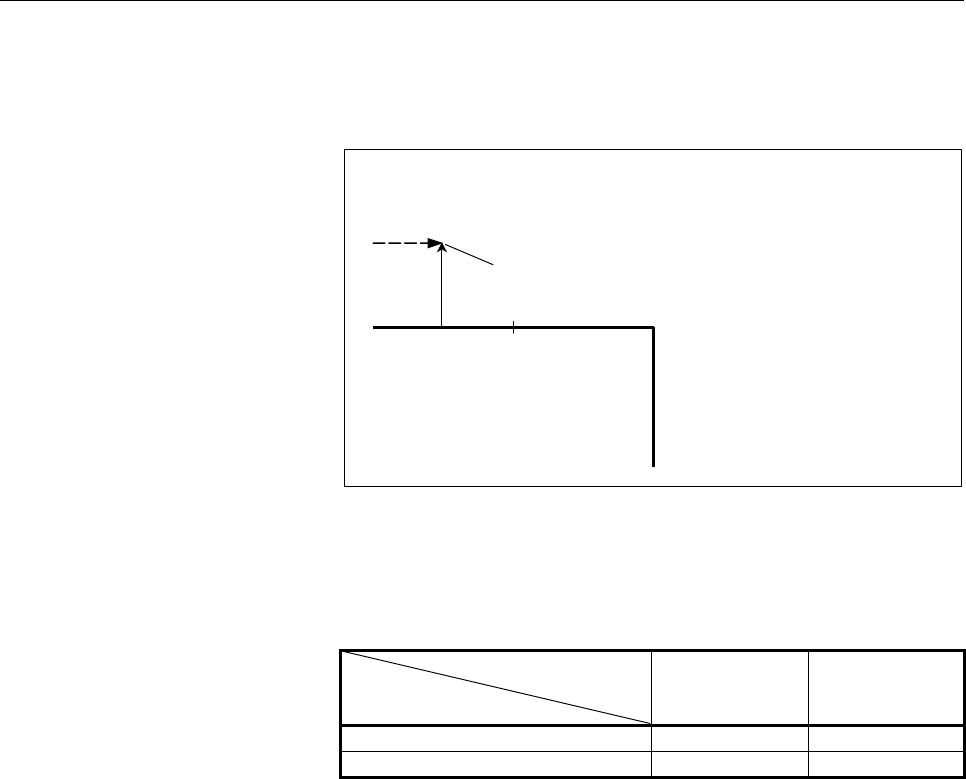

N5 G01 W50.0 ;

N6 W50.0 ;

N7 G02 W100.0 I0 K0 ;

N8 G01 U-100.0 ;

larm is displayed and the

tool stops

Programmed path

Tool nose radius center path

N6 N7

- Change in the offset direction in the offset mode

The offset direction is decided by G codes (G41 and G42) for cutter or

tool nose radius compensation and the sign of the compensation value

as follows.

Sign of compensation

G code

+ -

G41 Left side offset Right side offset

G42 Right side offset Left side offset

The offset direction can be changed in the offset mode. If the offset

direction is changed in a block, a vector is generated at the

intersection of the tool nose radius center path of that block and the

tool nose radius center path of a preceding block.

However, the change is not available in the start-up block and the

block following it.
