B-63944EN-1/02 PROGRAMMING 5.COMPENSATION FUNCTION

- 159 -

- Tool movement when the moving direction of the tool in a block which includes a

G40 (offset cancel) command is different from the direction of the workpiece

When you wish to retract the tool in the direction specified by X(U)

and Z(W) canceling the tool nose radius compensation at the end of

machining the first block in the figure below, specify the following :

G40 X(U) _ Z(W) _ I _ K _ ;

where I and K are the direction of the workpiece in the next block,

which is specified in incremental mode.

(G42)

G40 U_ W_ I_ K

;

G40

I, K

U, W

Moving direction of tool

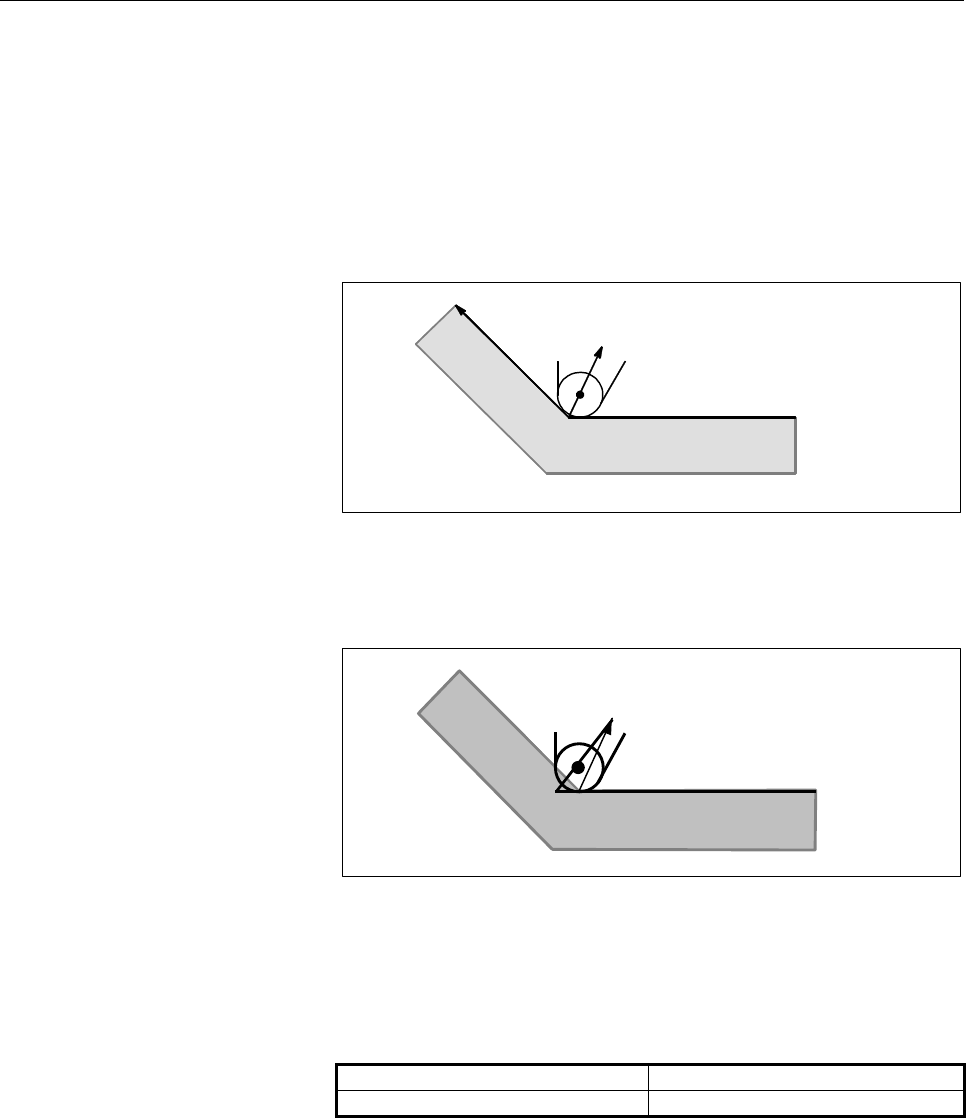

Fig. 5.2.4 (i) If I and K are specified in the same block as G40

Thus, this prevents the tool from overcutting, as shown in Fig. 5.2.4

(j).

G40 U_ W

;

(G42)

G40

U,W

ctual move command

Fig. 5.2.4 (j) Case in which overcutting occurs in the same block as G40

The workpiece position specified by addresses I and K is the same as

that in the preceding block.

Specify I_K_; in the same block as G40. If it is specified in the same

block as G02 or G03, it is assumed to be the center of the arc.

G40 X_ Z_ I_ K_ ; Tool nose radius compensation

G02 X_ Z_ I_ K_ ; Circular interpolation

If I and/or K is specified with G40 in the cancel mode, the I and/or K

is ignored. The numeral is followed I and K should always be

specified as radius values.

G40 G01 X_ Z_ ;

G40 G01 X_ Z_ I_ K_ ; Offset cancel mode (I and K are ineffective.)
