2.SETTING AND DISPLAYING DATA OPERATION B-63944EN-1/02

- 372 -

3-1 If one screen cannot fully display the second geometry offset

values of the Y-axis, press the [SWITCH] soft key to switch

the screen display.

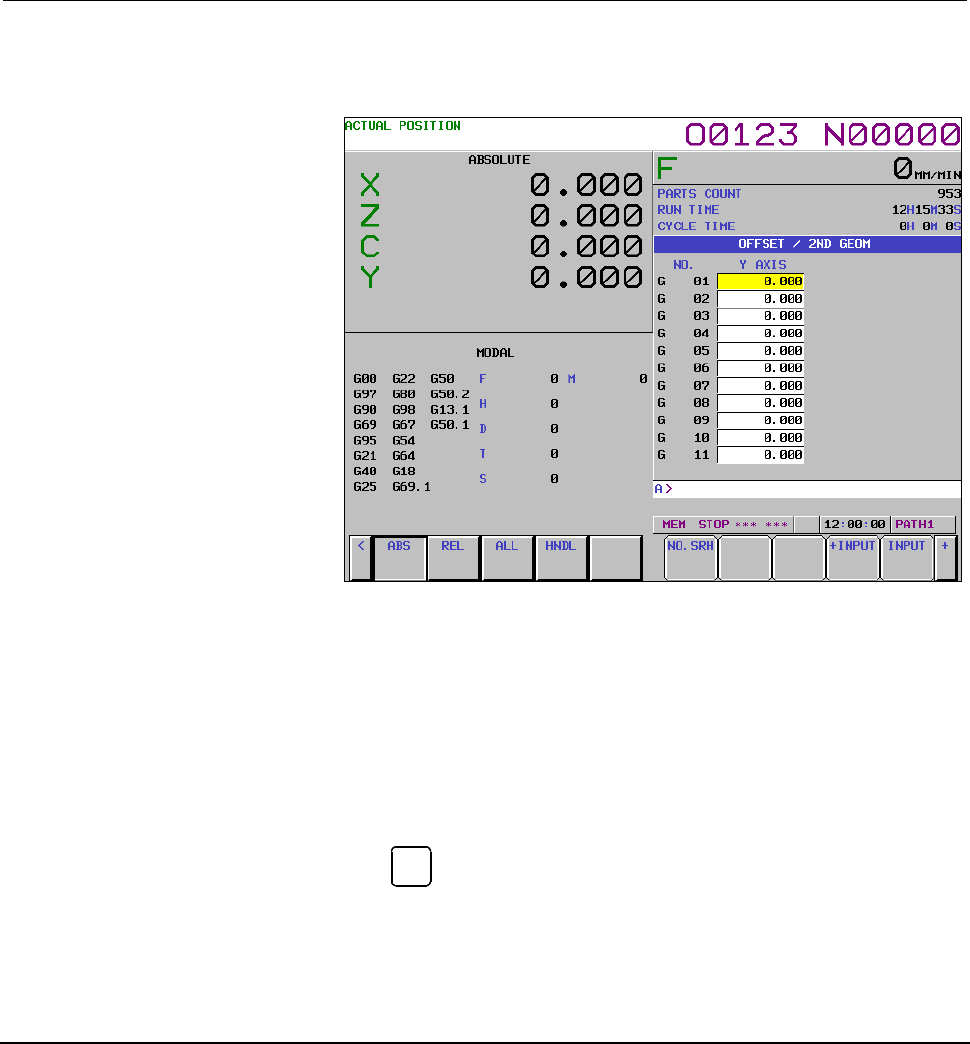

Fig. 2.1.6 (b)

4 By using one of the methods described below, move the cursor to

the second geometry offset value of a desired second geometry

offset number.

• By using the page keys and cursor keys, move the cursor to

the desired offset value position.

• Key in the desired offset number then press the [NO.SRH]

soft key.

5 Input a desired second geometry offset value then press the

INPUT

key or the [INPUT] soft key. The input second geometry

offset value is set. When an additional offset to the second

geometry offset value currently displayed is input, press the

[+INPUT] soft key. In this case, the result of addition is set as

the second geometry offset value.

6 Repeat steps 4 and 5 to set all parameters to be modified.

Explanation

- Input of a second geometry offset value

The value input in the key input buffer is set as the second geometry

offset value where the cursor is currently placed.

- +Input of a second geometry offset value

The value input in the key input buffer is added to the second

geometry offset value where the cursor is currently placed.

- Number search for a second geometry offset value

The value input in the key input buffer is used as a second geometry

offset number to move the cursor to the corresponding position.
