B-63944EN-1/02 PROGRAMMING 5.COMPENSATION FUNCTION

- 219 -

5.4.6.3 Interference check avoidance function

Overview

If a command is specified which satisfies the condition under which

the interference check alarm function generates an interference alarm,

this function suppresses the generation of the interference alarm, but

causes a new compensation vector to be calculated as a path for

avoiding interference, thereby continuing machining. For the path

for avoiding interference, insufficient cutting occurs in comparison

with the programmed path. In addition, depending on the specified

figure, no path for avoiding interference can be determined or the path

for avoiding interference may be judged dangerous. In such a case,

an alarm stop will occur. For this reason, it is not always possible to

avoid interference for all commands.

Explanation

- Interference avoidance method

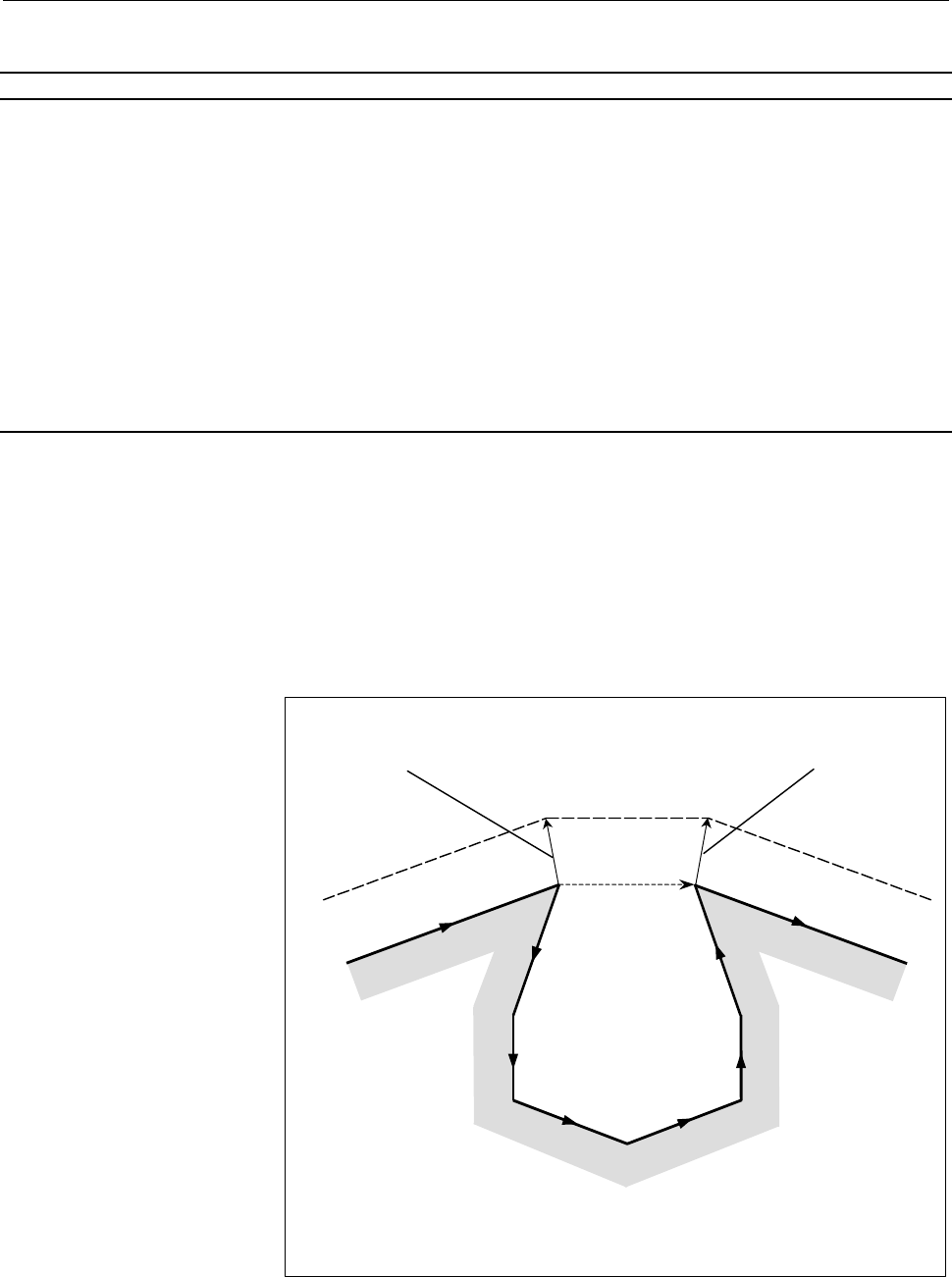

Let us consider a case in which an interference occurs between the

compensation vector between (block 1 - block 2) and the

compensation vector between (block N-1 - block N). The direction

vector from the end point of block 1 to the end point of block N-1 is

called a gap vector. At this time, a post-compensation intersection

vector between (block 1 - gap vector) and a post-compensation

intersection vector between (gap vector - block N) is determined, and

a path connecting them is created.

Movement o f block

Post-compensation intersection vector

between block

and gap vector

Post-compensation intersection vector

between gap vector and block

Post-compensation

ath

Programmed path

Block

Gap vector

Block

In this case, the post-compensation end points of blocks

coincide with the end

point of block

. Thus, after compensation, blocks

will be blocks without tool

movement.

Block

If the post-compensation intersection vector of (block 1 - gap vector)

and the post-compensation intersection vector of (gap vector - block
