4.FUNCTIONS TO SIMPLIFY PROGRAMMING PROGRAMMING B-63944EN-1/02

- 104 -

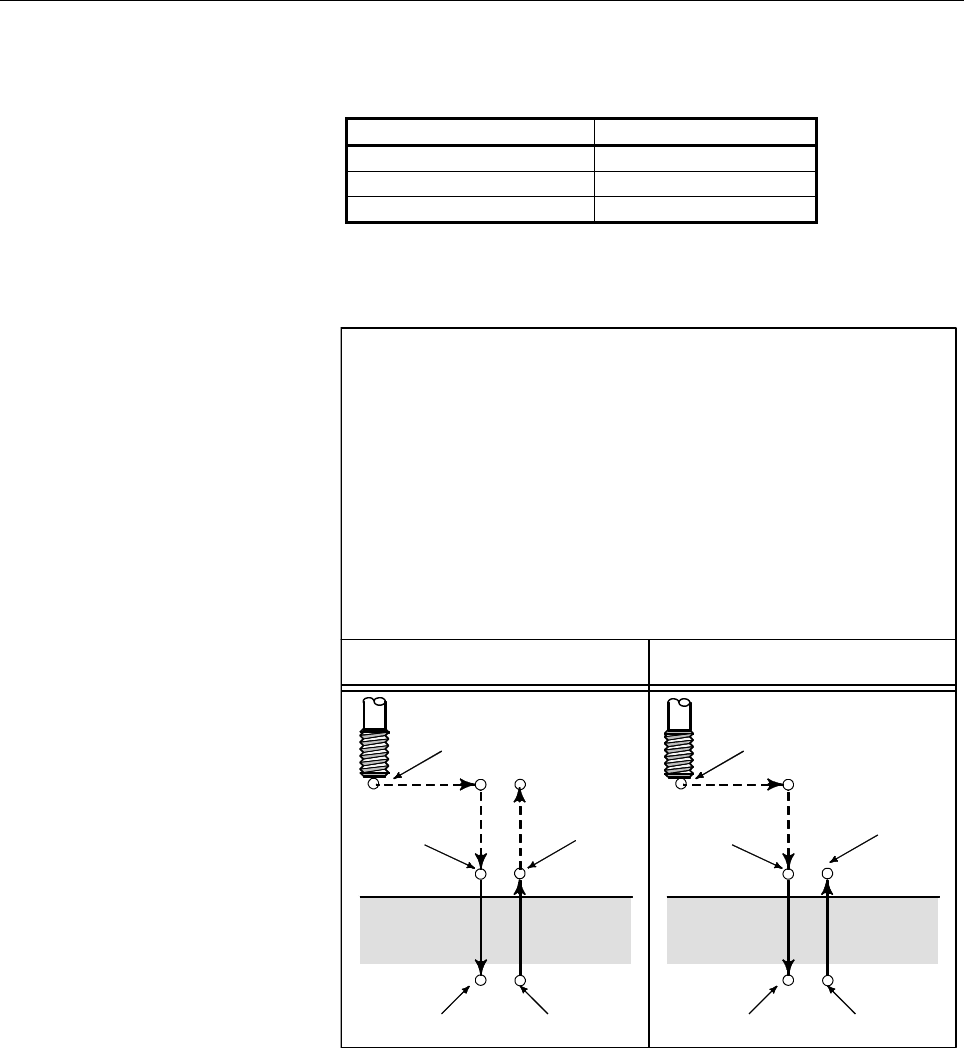

In side face rigid tapping (G88), the plane first axis is used as the

drilling axis and the other axes are used as positioning axes.

Plane selection Drilling axis

G17 Xp-Yp plane Yp

G18 Zp-Xp plane Xp

G19 Yp-Zp plane Zp

Xp: X axis or its parallel axis

Yp: Y axis or its parallel axis

Zp: Z axis or its parallel axis

(Series 15 format)

G84.2 X (U)_ C (H)_ Z (W)_ R_ P_ F_ L_ S_ ;

X_ C_ or Z_ C_ : Hole position data

Z_ or X_ : The distance from point R to the bottom of the hole

R_ : The distance from the initial level to point R level

P_ : Dwell time at the bottom of a hole

F_ : Cutting feedrate

L_ : Number of repeats (When it is needed.)

S_ : Spindle speed

C-axis clamp cannot be performed during specification of the Series 15 format.

G84.2

(

G98

)

G84.2(G99)

Initial level

Point R

Spindle stop

Spindle CW

Point Z

Point R level

Operation 2

Operation 1

Operation 6

Operation 3

Operation 4

Operation 5

Spindle stop

Spindle CCW

Point R

Spindle CW

Point Z

Point R level

Spindle stop

Spindle CCW

Spindle stop
