4.FUNCTIONS TO SIMPLIFY PROGRAMMING PROGRAMMING B-63944EN-1/02

- 122 -

Explanation

By G01 specified for chamfering or corner R, the tool must be moved

only along one of the two axes on the selected plane. The command

in the next block must move the tool only along the other axis on the

selected plane.

Example:

When the A-axis is set as an axis parallel to the basic X-axis (by

setting parameter No. 1022 to 5), the following program

performs chamfering between cutting feed along the A-axis and

that along the Z-axis:

G18 A0 Z0

G00 A100.0 Z100.0

G01 A200.0 F100 K30.0

Z200.0

The following program causes an alarm. (Because chamfering

is specified in the block to move the tool along the X-axis, which

is not on the selected plane)

G18 A0 Z0

G00 A100.0 Z100.0

G01 X200.0 F100 K30.0

Z200.0

The following program also causes an alarm. (Because the

block next to the chamfering command moves the tool along the

X-axis, which is not on the selected plane)

G18 A0 Z0

G00 A100.0 Z100.0

G01 Z200.0 F100 I30.0

X200.0

A radius value is specified at I, J, K, R, and C.

In an incremental programming, use point b in the figure in "Format"

as the start point in the block next to a chamfering or corner R block.

That is, specify the distance from point b. Do not specify the

distance from point c.

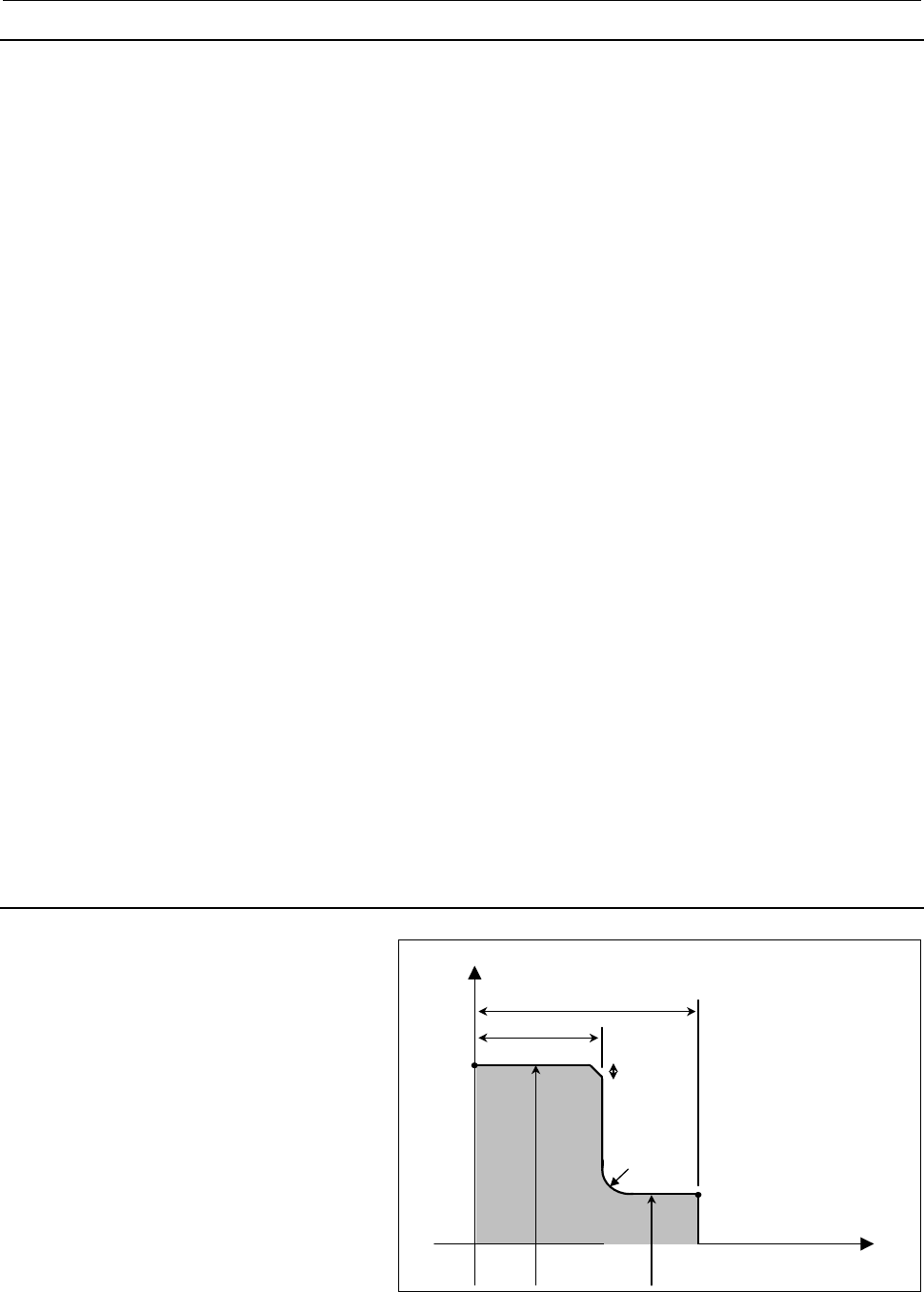

Example

270.0

K3.0

Cutting start point

End point

530.0

860

268

N003

N004

N002

N001 G18 ;

N002 G00 X268.0 Z530.0 ;

N003 G01 Z270.0 R6.0 ;

N004 X860.0 K-3.0 ;

N005 Z0 ;
