FANUC Series 30i/31i/32i -A, 31i -A5

CANNED GRINDING CYCLE

(FOR GRINDING MACHINE)

Explanations

When the multistage skip option is used, a gauge number can be specified. The method of

gauge number selection is the same as the method of multistage skip function. When the

multistage skip option is not used, the conventional skip signal is valid.

The same specifications as G71 is applied except for gauge number specification.

• Operation performed when the skip signal is input

When the cycle of G72 is performed, a skip signal can be input to terminate the cycle. When

a skip signal is input, the current operation sequence is interrupted or completed, then the

cycle is terminated.

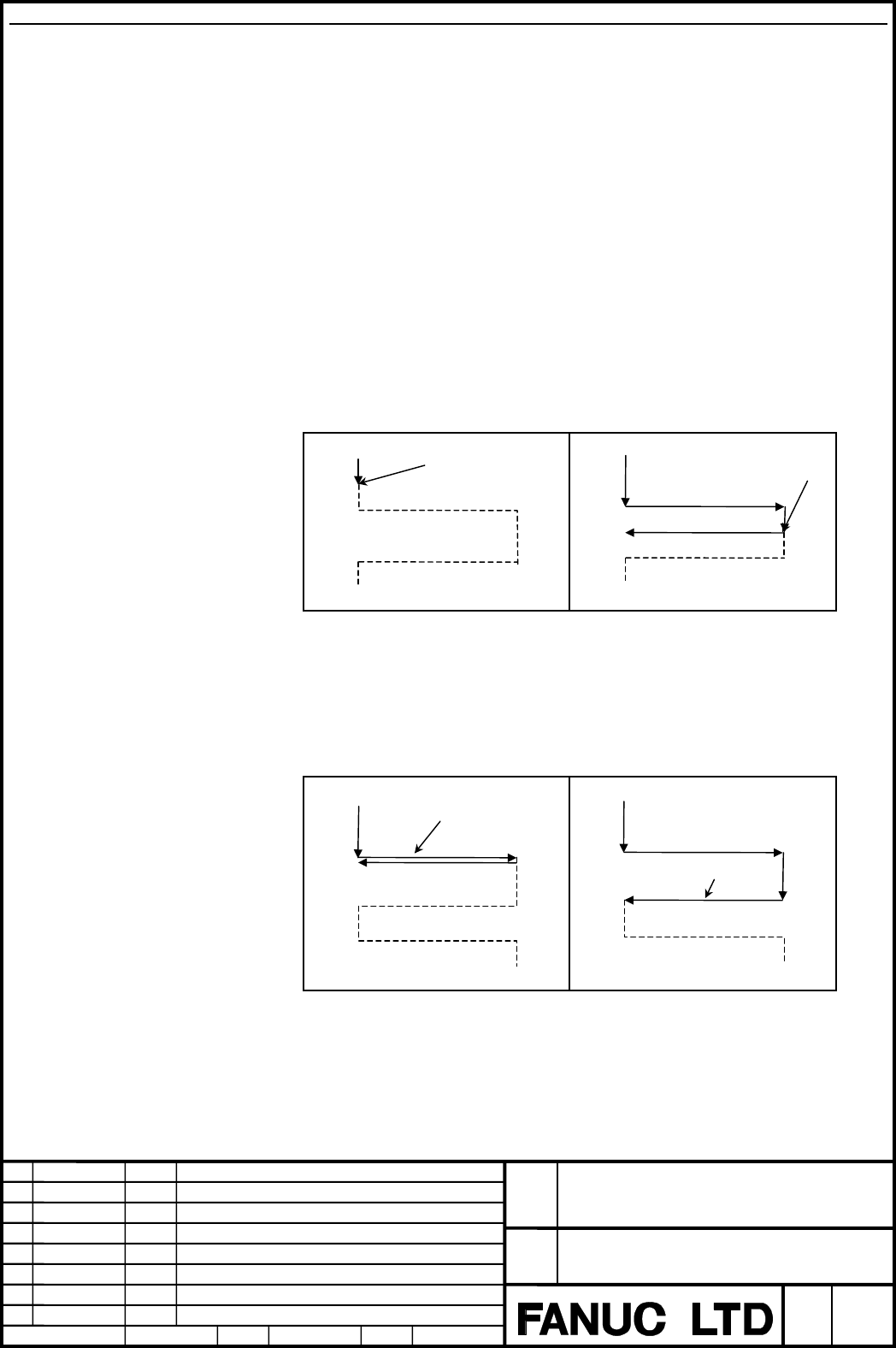

The following shows how the system operates when the skip signal is input during each

operation sequence.

• When the skip signal is input during operation sequence (1) or (4) (cutting

feed specified by A or B), cutting is stopped immediately and the tool returns

to the α coordinate at which the cycle started.

• When the skip signal is input during operation sequence (2) or (5) (dwell),

dwell is stopped immediately and the tool returns to the α coordinate at

which the cycle started.

• When the skip signal is input during operation sequence (3) or (6) (grinding

movement), the tool returns to the α coordinate at which the cycle started

after the movement specified by W is completed.

(End)

Skip Signal

(End)

Skip Signal

(End)
