5.COMPENSATION FUNCTION PROGRAMMING B-63944EN-1/02

- 240 -

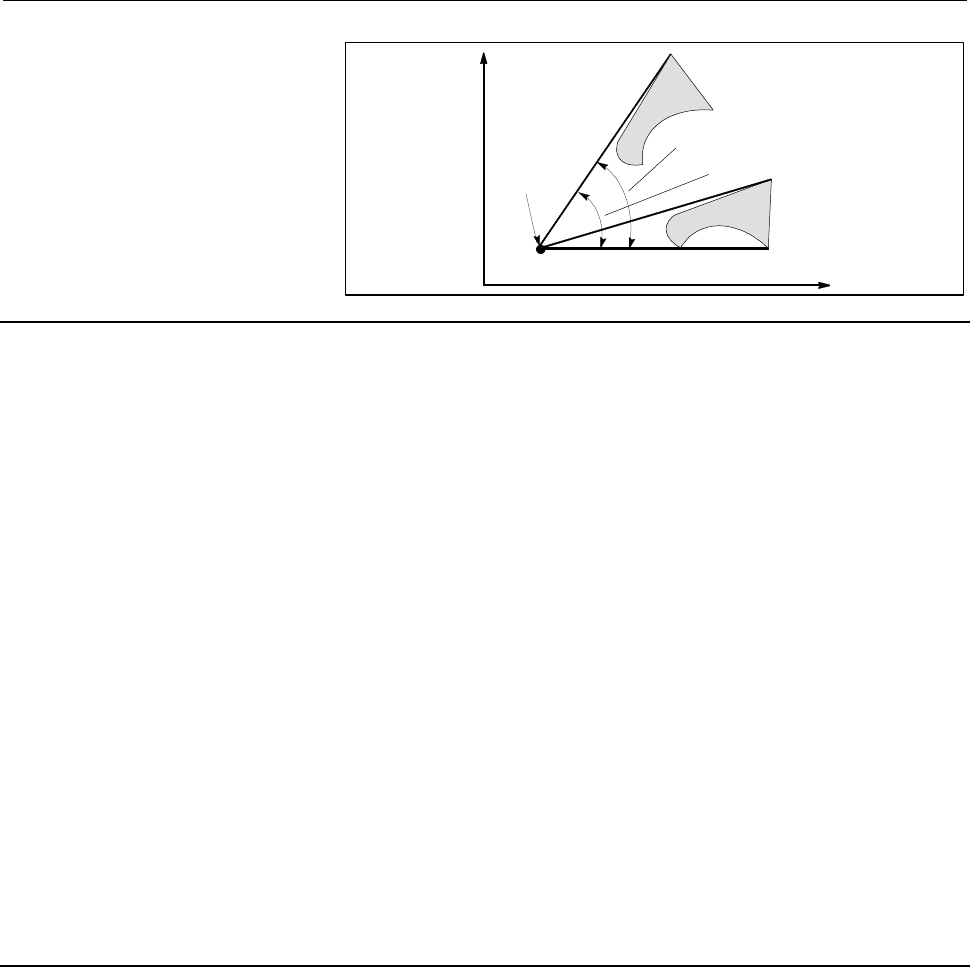

Rotation angle R (incremental value)

Rotation

center

(

)

Rotation angle R (absolute value)

Explanation

- Plane selection G code, G17, G18, or G19

Plane selection G code (G17, G18, or G19) can be specified in a block

ahead of the coordinate system rotation G code (G68.1). Do not

specify G17, G18, or G19 in coordinate system rotation mode.

- Rotation center

If the rotation center (α_, β_) is not specified, the location of the tool

when G68.1 is issued is assumed as the rotation center.

- Rotation angle command

If the rotation angle command (R_) is not specified, the value

specified in parameter No. 5410 is used as the rotation angle.

- Coordinate rotation cancel

The coordinate rotation cancel G code (G69.1) can be specified in the

same block as other commands.

- Tool compensation

Tool compensation, such as tool offset or tool nose radius

compensation, is processed after coordinate system rotation is

performed for a program defining a figure.

G68.1 can be used in either G00 or G01 mode.

Limitation

- Reference position return

A reference position return command G27, G28, G29, or G30 can be

issued only in G69.1 mode.

- Changes to coordinates

Do not attempt to change coordinates in G68.1 mode (commands such

as G50, G54 to G59, and the tool offset command).

- Canned cycles

Coordinate system rotation cannot be used in simple canned cycles,

multiple repetitive canned cycles, or canned drilling cycles.
