4.FUNCTIONS TO SIMPLIFY PROGRAMMING PROGRAMMING B-63944EN-1/02

- 128 -

4.7 DIRECT DRAWING DIMENSION PROGRAMMING

Overview

Angles of straight lines, chamfering value, corner R values, and other

dimensional values on machining drawings can be programmed by

directly inputting these values. In addition, the chamfering and

corner R can be inserted between straight lines having an optional

angle.

This programming is only valid in memory operation mode.

Format

Examples of command formats for the G18 plane (ZX plane) are

shown. This function can be specified in the following formats also

for the G17 plane (XY plane) and G19 plane (YZ plane).

The following formats are changed as follows:

For the G17 plane: Z → X, X → Y

For the G19 plane: Z → Y, X → Z

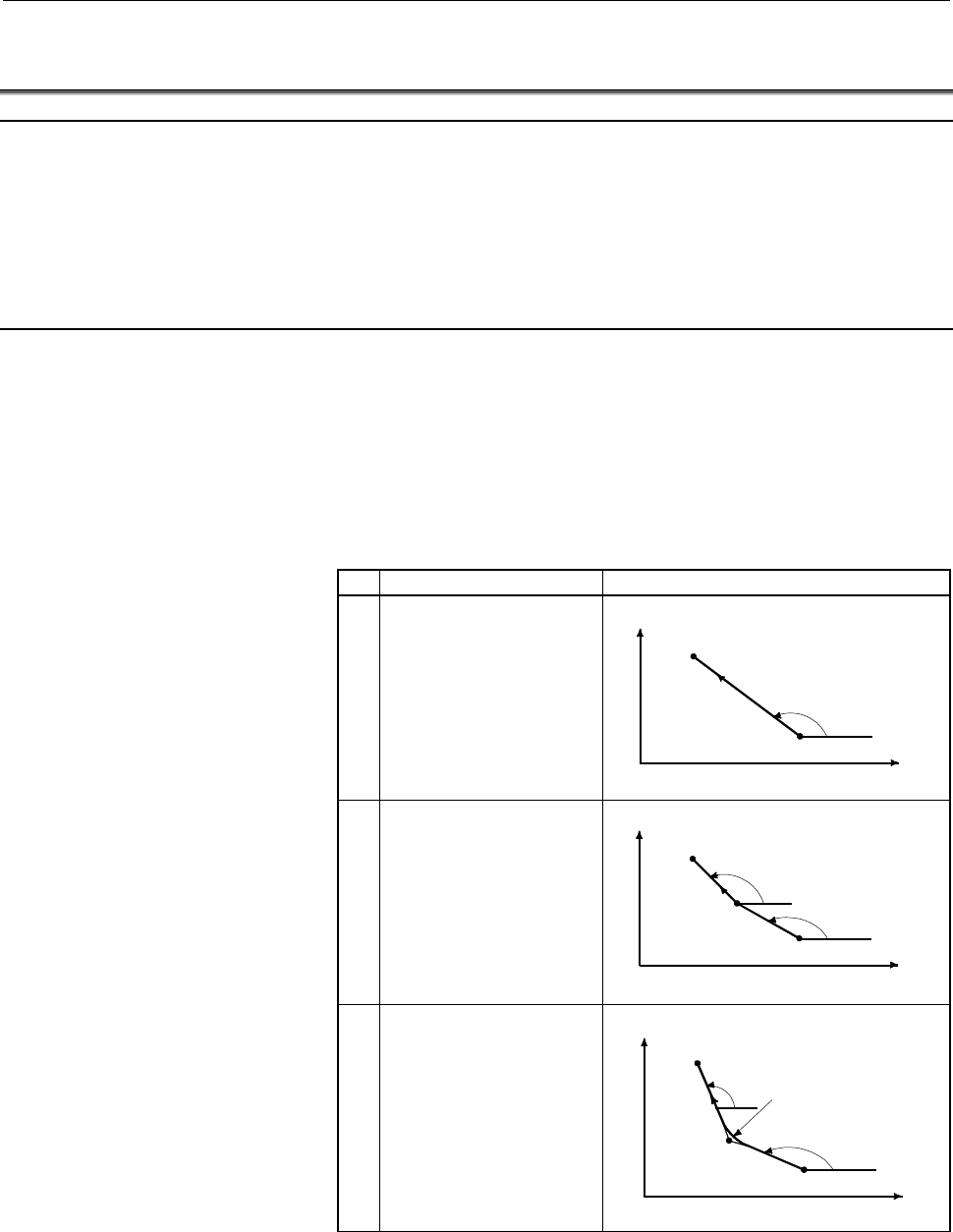

Table 4.7 (a) Commands table

Commands Movement of tool

1 X2_ (Z2_), A_ ;

(X1 , Z1)

(X2 , Z2)

,A1_ ;

X3_ Z3_, A2_ ;

(X1 , Z1)

(X3 , Z3)

(X2 , Z2)

X2_ Z2_, R1_ ;

X3_ Z3_ ;

,A1_, R1_ ;

X3_ Z3_, A2_ ;

(X1 , Z1)

(X3 , Z3)

(X2 , Z2)
