B-63944EN-1/02 PROGRAMMING 6.MEMORY OPERATION BY Series 15 FORMAT

- 309 -

- Relationship between the sign of the taper amount and tool path

The signs of incremental dimensions for the cycle shown in Fig. 6.4.7

(q) are as follows:

Cutting end point in the direction of the length for U and W:

Minus (determined according to the directions of paths A-C and

C-D)

Taper amount (i):

Minus (determined according to the direction of path A-C)

Height of thread (k):

Plus (always specified with a plus sign)

Depth of cut in the first cut (∆d):

Plus (always specified with a plus sign)

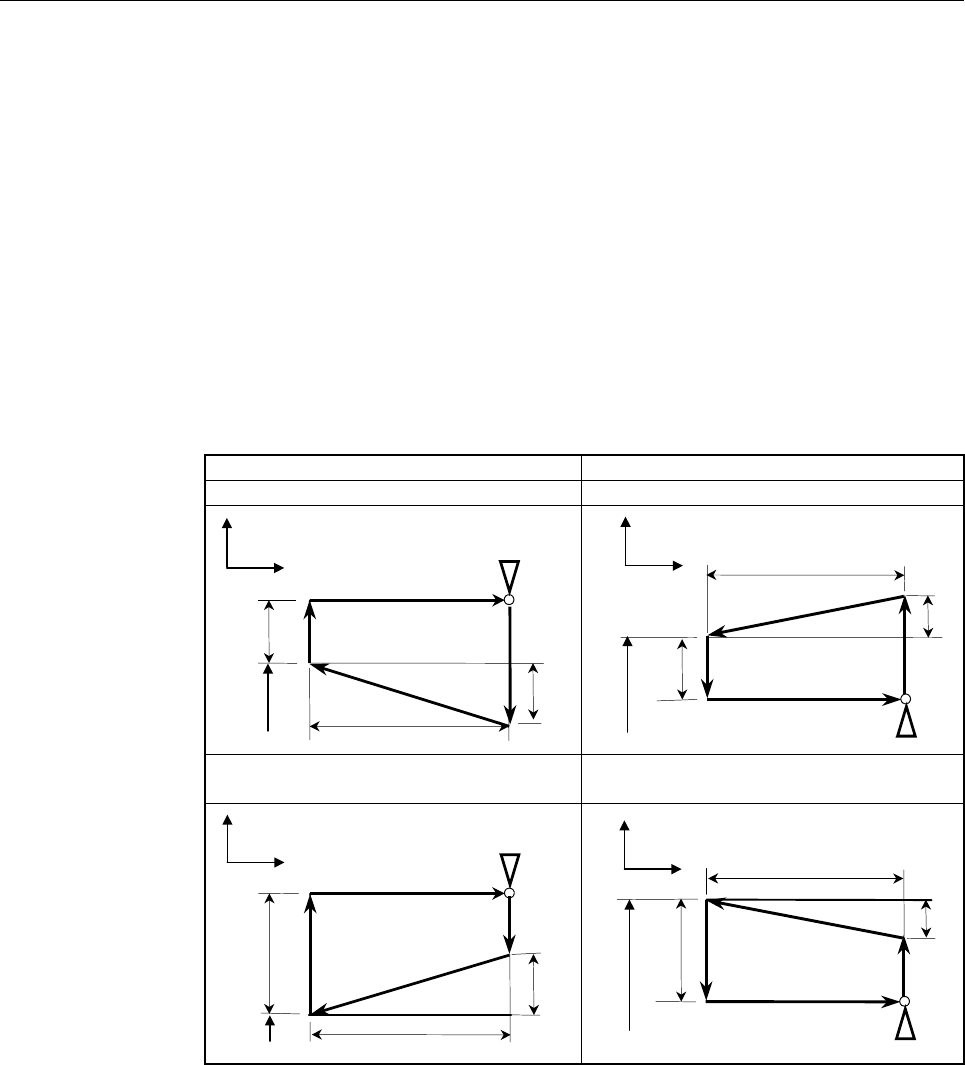

The four patterns shown in the table below are considered

corresponding to the sign of each address. A female thread can also

be machined.

Outer diameter machining Internal diameter machining

1. U < 0, W < 0, i < 0 2. U > 0, W < 0, i > 0

U/2

3(R)

4(R)

1(R)

2(F)

X/2

U/2 3(R)

4(R)

1(R)

2(F)

X/2

3. U < 0, W < 0, i > 0

at |i|

≤|U/2|

4. U > 0, W < 0, i < 0

at |i|≤|U/2|

U/2

3(R)

4(R)

1(R)

2(F)

X/2

U/2

3(R)

4(R)

1(R)

2(F)

X/2

- Time constant and FL feedrate for threading

The time constant for acceleration/deceleration after interpolation for

threading specified in parameter No. 1626 and the FL feedrate

specified in parameter No. 1627 are used.
