6.MEMORY OPERATION BY Series 15 FORMAT PROGRAMMING B-63944EN-1/02

- 268 -

6.3.5 Canned Cycle and Tool Nose Radius Compensation

When tool nose radius compensation is applied, the tool nose center

path and offset direction are as shown below. At the start point of a

cycle, the offset vector is canceled. Offset start-up is performed for

the movement from the start point of the cycle. The offset vector is

temporarily canceled again at the return to the cycle start point and

offset is applied again according to the next move command. The

offset direction is determined depending of the cutting pattern

regardless of the G41 or G42 mode.

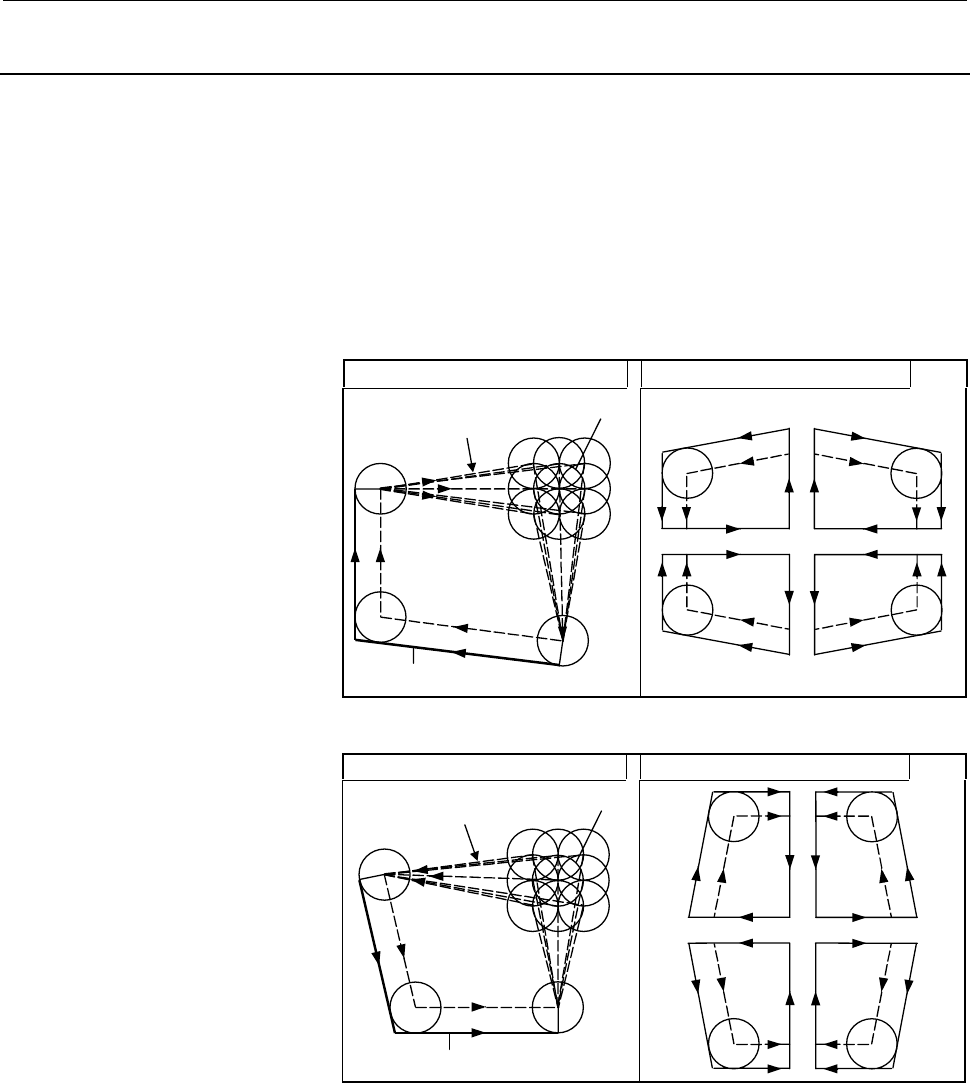

Outer diameter/internal diameter cutting cycle (G90)

Tool nose radius center path Offset direction

Whole tool nose

Tool nose radius center path

Programmed path

Whole

tool nose

Whole tool nose

End face cutting cycle (G94)

Tool nose radius center path Offset direction

Whole tool nose

Tool nose radius center path

Programmed path

Whole

tool nose

Whole tool nose

Threading cycle (G92)

Tool nose radius compensation cannot be applied.
