4.1.2 Threading Cycle (G92)

4.1.2.1 Straight threading cycle

Format

G92 X(U)_Z(W)_F_Q_;

X_,Z_ : Coordinates of the cutting end point (point A' in the

figure below) in the direction of the length

U_,W_ : Travel distance to the cutting end point (point A' in

the figure below) in the direction of the length

Q_ : Angle for shifting the threading start angle

(Increment: 0.001 degrees,

Valid setting range: 0 to 360 degrees)

F_ : Thread lead (L in the figure below)

X/2

X axis

Z axis

(

)

(

)

(

)

4(R)

Detailed chamfered thread

(The chamfered angle in the left figure is 45

degrees or less because of the delay in the

servo system.)

Approx.

45°

(R) ... Rapid traverse

(F).... Cutting feed

’

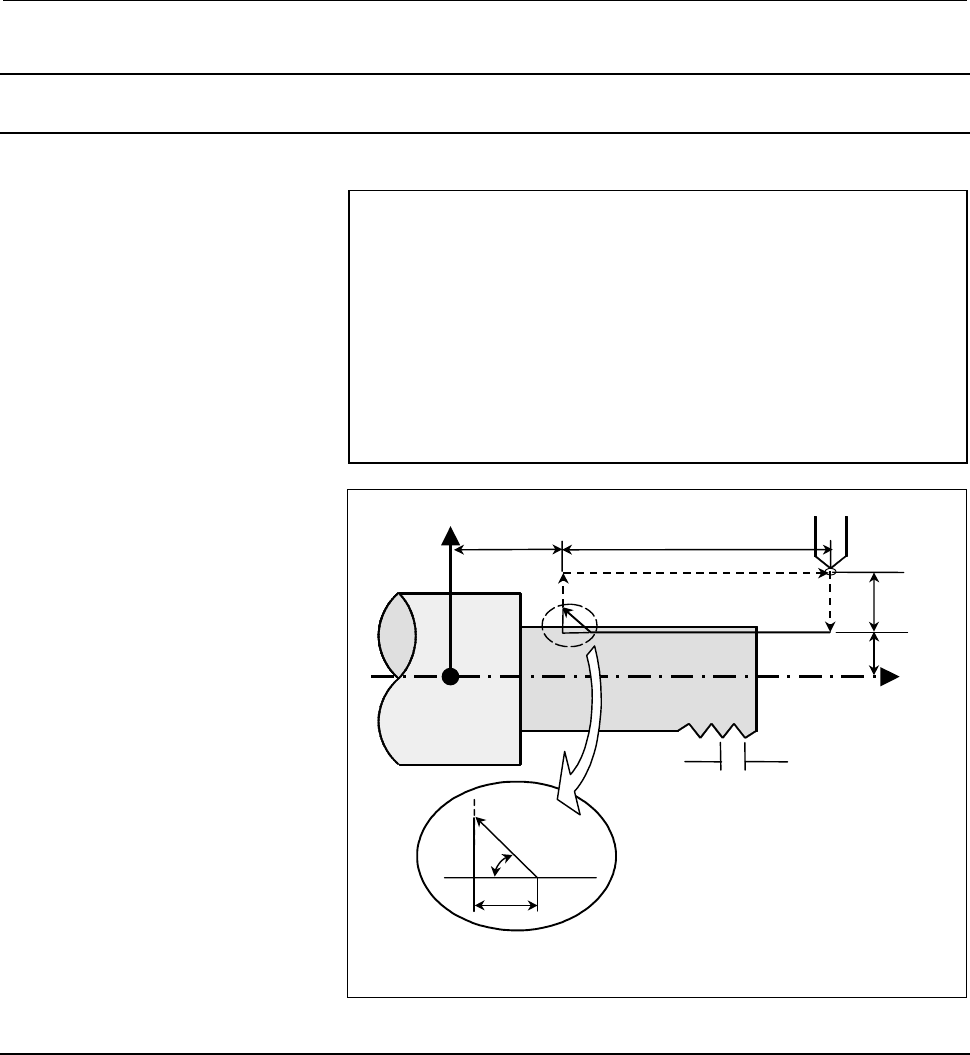

Fig. 4.1.2 (c) Straight threading

Explanation

The ranges of thread leads and restrictions related to the spindle speed

are the same as for threading with G32.

- Operations

A straight threading cycle performs four operations:

(1) Operation 1 moves the tool from the start point (A) to the

specified coordinate of the second axis on the plane (specified

X-coordinate for the ZX plane) in rapid traverse.

(2) Operation 2 moves the tool to the specified coordinate of the first

axis on the plane (specified Z-coordinate for the ZX plane) in

cutting feed. At this time, thread chamfering is performed.
