4.FUNCTIONS TO SIMPLIFY PROGRAMMING PROGRAMMING B-63944EN-1/02

- 64 -

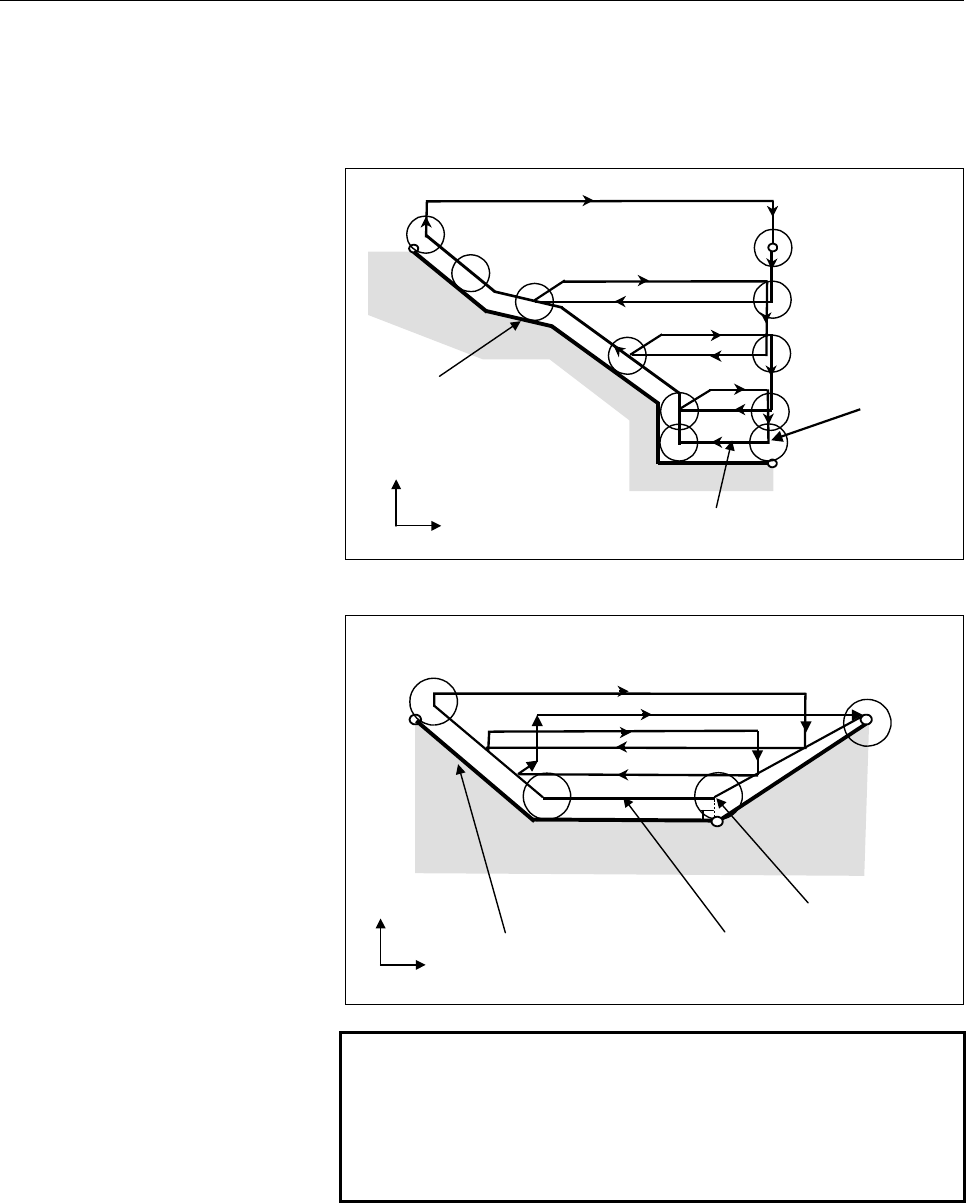

This cycle operation is performed according to the figure determined

by the tool nose radius compensation path when the offset vector is 0

at start point A and start-up is performed in a block between path

A-A'.

Target figure program for

which tool nose radius

compensation is not applied

’

Tool nose center path when tool nose radius

compensation is applied with G42

Position between A-

' in which start-up is

performed

Fig. 4.2.1 (p) Path when tool nose radius compensation is applied

Target figure program for

which tool nose radius

compensation is not applied

Tool nose center path when tool

nose radius compensation is

applied with G42

’

Position between

-A' in which start-

up is performed

NOTE

To perform pocketing in the tool nose radius

compensation mode, specify the linear block A-A'

outside the workpiece and specify the figure of an

actual pocket. This prevents a pocket from being

dug.
