B-63944EN-1/02 PROGRAMMING 5.COMPENSATION FUNCTION

- 227 -

5.5 VECTOR RETENTION (G38)

In cutter or tool nose radius compensation, by specifying G38 in offset

mode, it is possible to retain the compensation vector at the end

position of the previous block, without performing intersection

calculation.

Format

(In offset mode)

G38 IP_ ;

IP :Value specified for axial movement

Explanation

- Vector retention

By specifying the above command, a vector is created at the end point

of the block immediately preceding the G38 block, vertical to that

block. In the G38 block, the vertical vector output in the previous

block is retained. G38 is a one-shot G code. With the next move

command without a G38 command, the compensation vector is

re-created.

Limitation

- Mode

Specify G38 in either G00 or G01 mode. If it is specified in G02 or

G03 (circular interpolation) mode, a radial error may occur at the start

and end points.

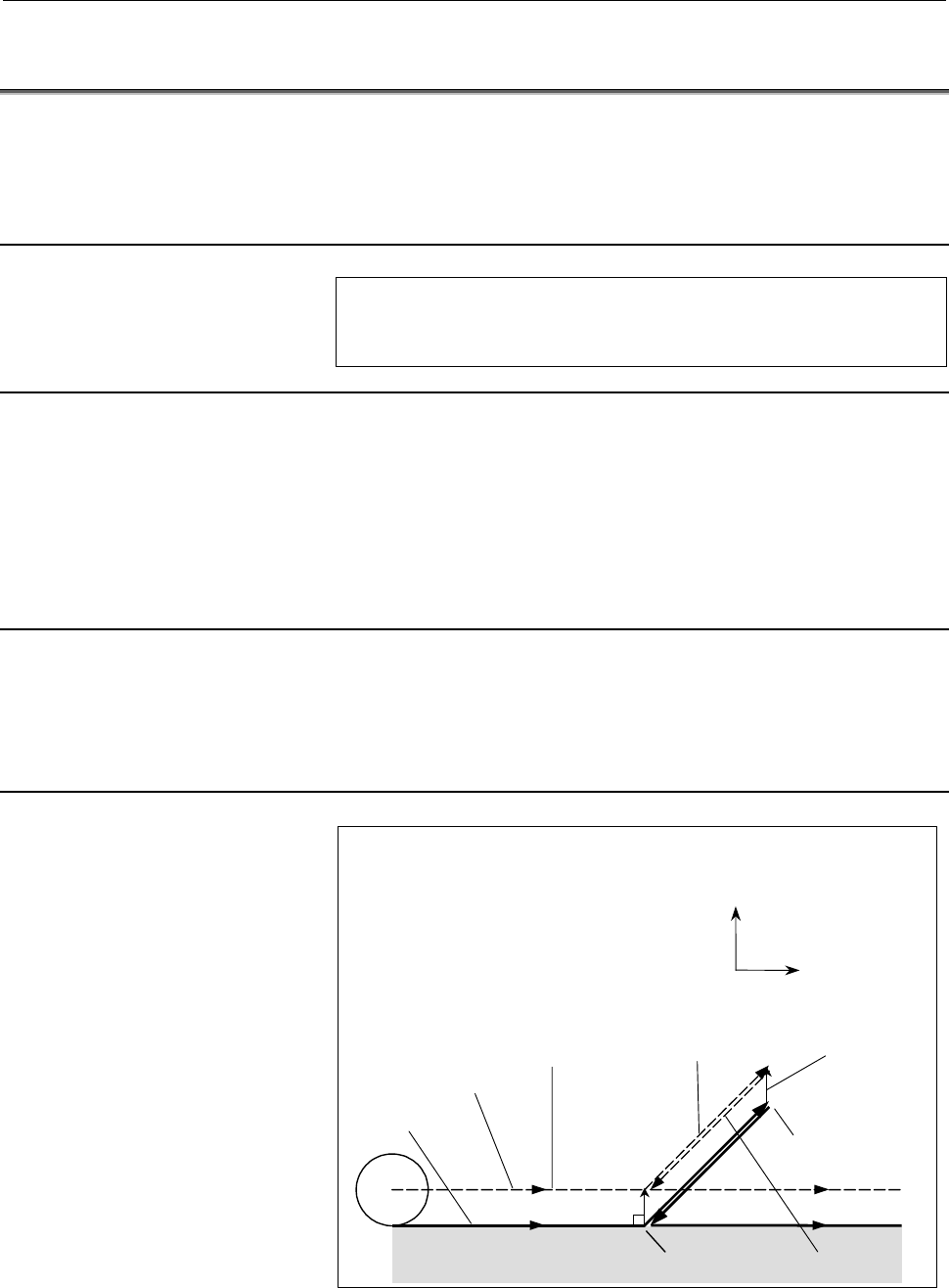

Example

X axis

Z axis

(10.0, 0.0)

(15.0, 5.0)

Block N1

Offset vector

Block N2

Block N3

Program command

Tool nose radius

center path

: (In offset mode)

N1 G38 X0.0 Z10.0 ;

N2 G38 X5.0 Z15.0 ;

N3 G38 X0.0 Z10.0 ;

N4 Z20.0 ;
