5.COMPENSATION FUNCTION PROGRAMMING B-63944EN-1/02

- 148 -

CAUTION

In a machine with reference positions, a standard position like the turret center can

be placed over the start point. The distance from this standard position to the nose

radius center or the imaginary tool nose is set as the tool offset value.

Setting the distance from the standard position to the tool nose radius center as the

offset value is the same as placing the tool nose radius center over the start point,

while setting the distance from the standard position to the imaginary tool nose is

the same as placing the imaginary tool nose over the standard position. To set the

offset value, it is usually easier to measure the distance from the standard position

to the imaginary tool nose than from the standard position to the tool nose radius

center.

OFX

(Tool offset

in X axis)

OFZ

(Tool offset

in Z axis)

Setting the distance from the standard position

to the tool nose center as the tool offset value

Setting the distance from the standard position to

the imaginary tool nose center as the tool offset

value

The start position is placed over the tool nose cente

The start position is placed over the imaginary tool

nose

OFX

(Tool offset

in X axis)

OFZ

(Tool offset

in Z axis)

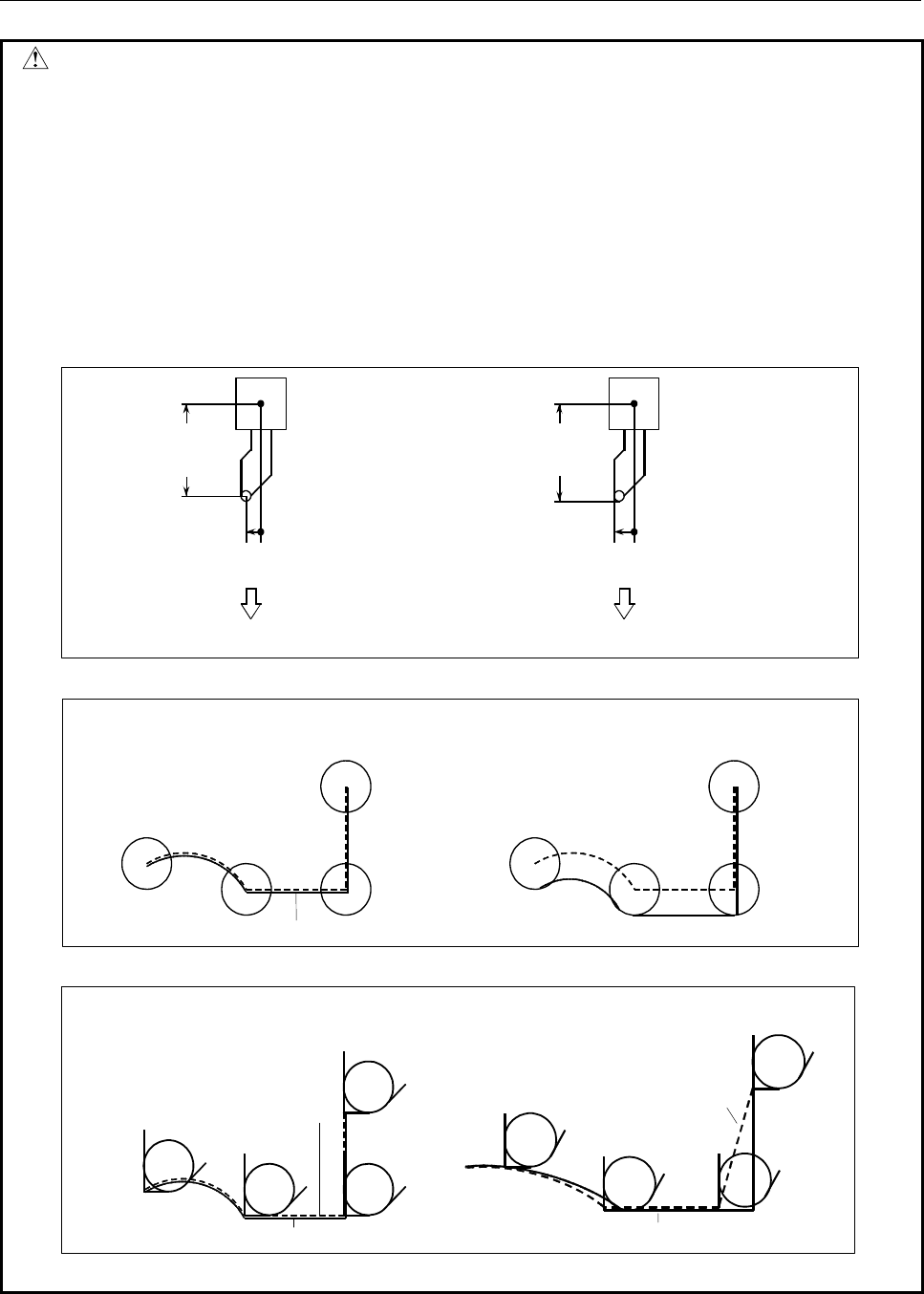

Fig. 5.2.1 (b) Tool offset value when the turret center is placed over the start point

Unless tool nose radius compensation is

performed, the tool nose center path is the

same as the programmed path.

If tool nose radius compensation is used, accurate

cutting will be performed.

Tool nose center path

Programmed path

Start-

Programmed path

Tool nose center path

Fig. 5.2.1 (c) Tool path when programming using the tool nose center

Without tool nose radius compensation, the

tool nose radius center path is the same as

the programmed path.

With tool nose radius compensation, accurate

cutting will be performed.

Imaginary tool

nose path

Imaginary tool

nose path

Start-

Programmed path

Fig. 5.2.1 (d) Tool path when programming using the imaginary tool nose
