4.FUNCTIONS TO SIMPLIFY PROGRAMMING PROGRAMMING B-63944EN-1/02

- 48 -

Threading cycle (G92)

Tool nose radius compensation cannot be applied.

Differences between this CNC and the FANUC Series 16i/18i/21i

NOTE

This CNC is the same as the FANUC Series

16i/18i/21i in the offset direction, but differs from

the series in the tool nose radius center path.

- For this CNC

Cycle operations of a canned cycle are replaced

with G00 or G01. In the first block to move the

tool from the start point, start-up is performed.

In the last block to return the tool to the start

point, offset is canceled.

- For the FANUC Series 16i/18i/21i

This series differs from this CNC in operations in

the block to move the tool from the start point

and the last block to return it to the start point.

For details, refer to "FANUC Series 16i/18i/21i

Operator's Manual."

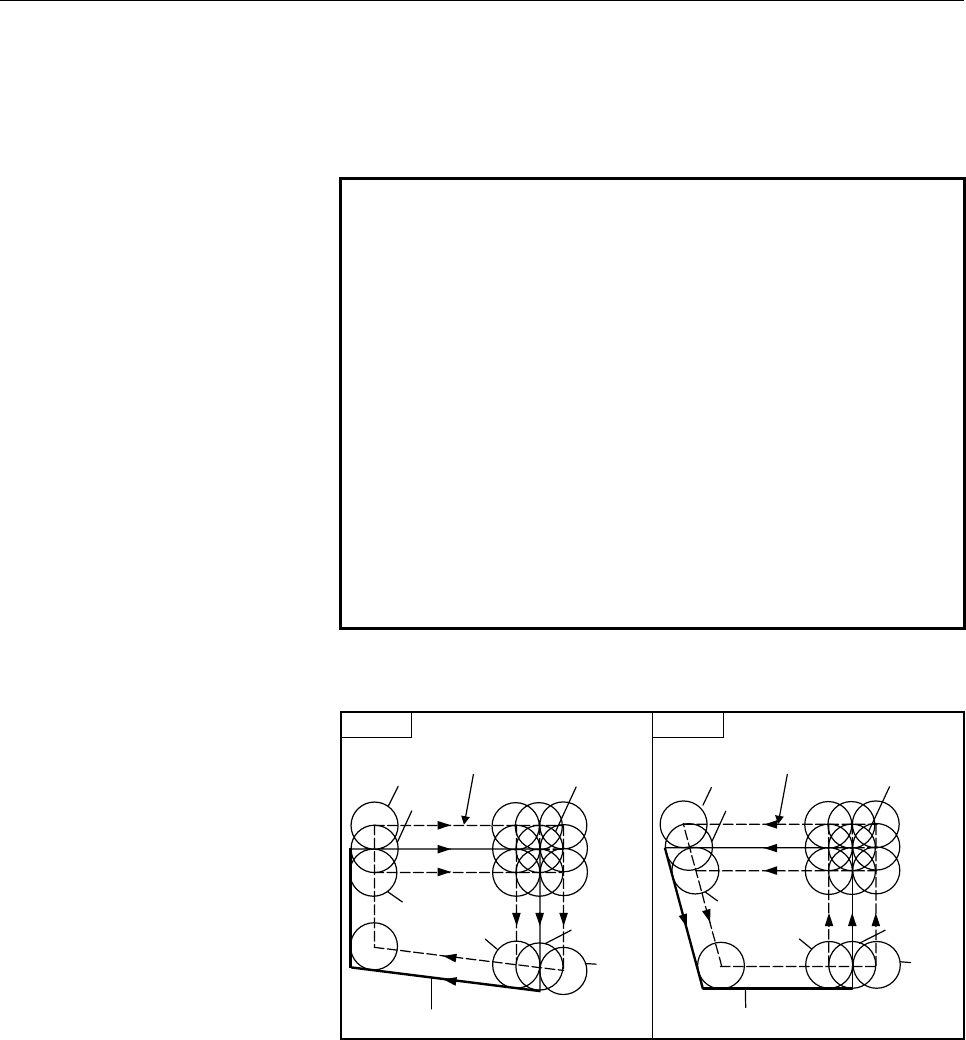

How compensation is applied for the FANUC Series 16i/18i/21i

G90 G94

4,8,3

5,0,7

1,6,2

4,5,1

8,0,6

3,7,2

Whole

tool nose

Tool nose radius center path

Programmed path

4,5,1

8,0,6

3,7,2

Whole

tool nose

4,8,3

5,0,7

1,6,2

Programmed path

Tool nose radius center path
