B-63944EN-1/02 PROGRAMMING 4.FUNCTIONS TO SIMPLIFY PROGRAMMING

- 41 -

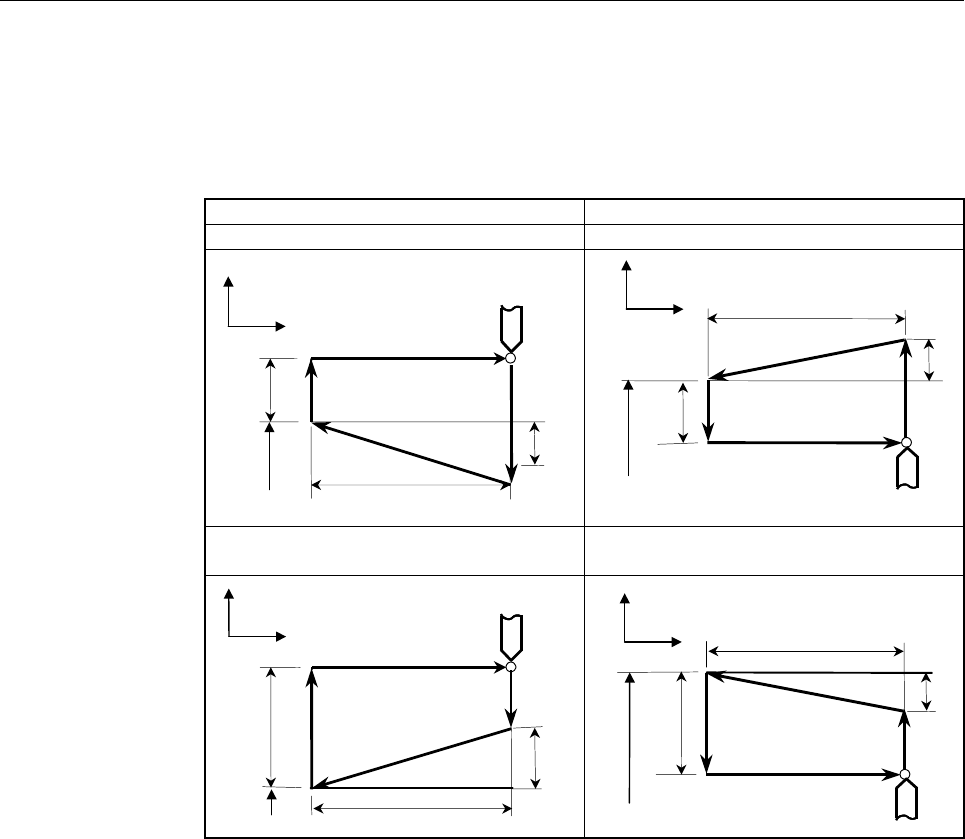

- Relationship between the sign of the taper amount and tool path

The tool path is determined according to the relationship between the

sign of the taper amount (address R) and the cutting end point in the

direction of the length in the absolute or incremental programming as

follows.

Outer diameter machining Internal diameter machining

1. U < 0, W < 0, R < 0 2. U > 0, W < 0, R > 0

U/2

3(F)

4(R)

1(R)

2(F)

U/2 3(F)

4(R)

1(R)

2(F)

3. U < 0, W < 0, R > 0

at |R|≤|U/2|

4. U > 0, W < 0, R < 0

at |R|≤|U/2|

U/2

3(F)

4(R)

1(R)

2(F)

U/2

3(F)

4(R)

1(R)

2(F)

- Canceling the mode

To cancel the canned cycle mode, specify a group 01 G code other

than G90, G92, or G94.

- Time constant and FL feedrate for threading

- Thread chamfering

- Retraction after chamfering

- Shifting the start angle

- Threading cycle retract

- Inch threading

See the pages on which a straight threading cycle is explained.
