B-63944EN-1/02 PROGRAMMING 5.COMPENSATION FUNCTION

- 217 -

5.4.6.1 Operation to be performed if an interference is judged to

occur

Explanation

The operation to be performed if an interference check judges that an

interference (due to overcutting) occurs can be either of the following

two, depending on the setting of parameter CAV (No. 19607#5).

CAV Function Operation

Interference check

alarm function

An alarm stop occurs before the execution

of the block in which overcutting

(interference) occurs.

Interference check

avoidance function

The tool path is changed so that

overcutting (interference) does not occur,

and processing continues.

5.4.6.2 Interference check alarm function

Explanation

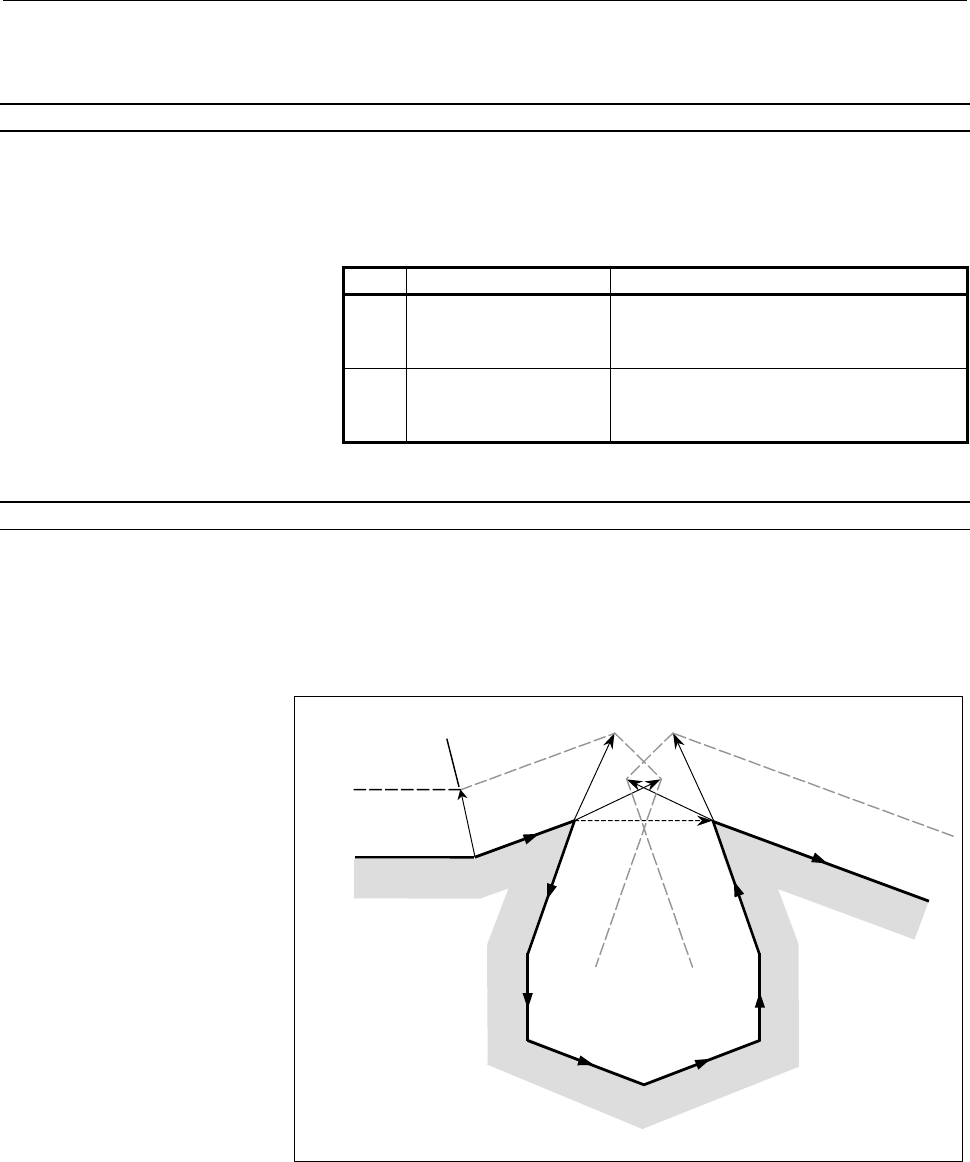

- Interference other than those between adjacent three blocks

If the end-point vector of block 1 and the end-point vector of block 7

are judged to interfere as shown in the figure, an alarm will occur

before the execution of block 1 so that the tool stops. In this case,

the vectors will not be erased.

Block

Stopped

Tool nose radius

center path

Programmed path

Block
