B-63944EN-1/02 APPENDIX A.PARAMETERS

- 405 -

#7 #6 #5 #4 #3 #2 #1 #0

TGC SUV SUP

5003

[Input type] Parameter input

[Data type] Bit path

# 0 SUP

# 1 SUV These bits are used to specify the type of startup/cancellation of cutter

or tool nose radius compensation.

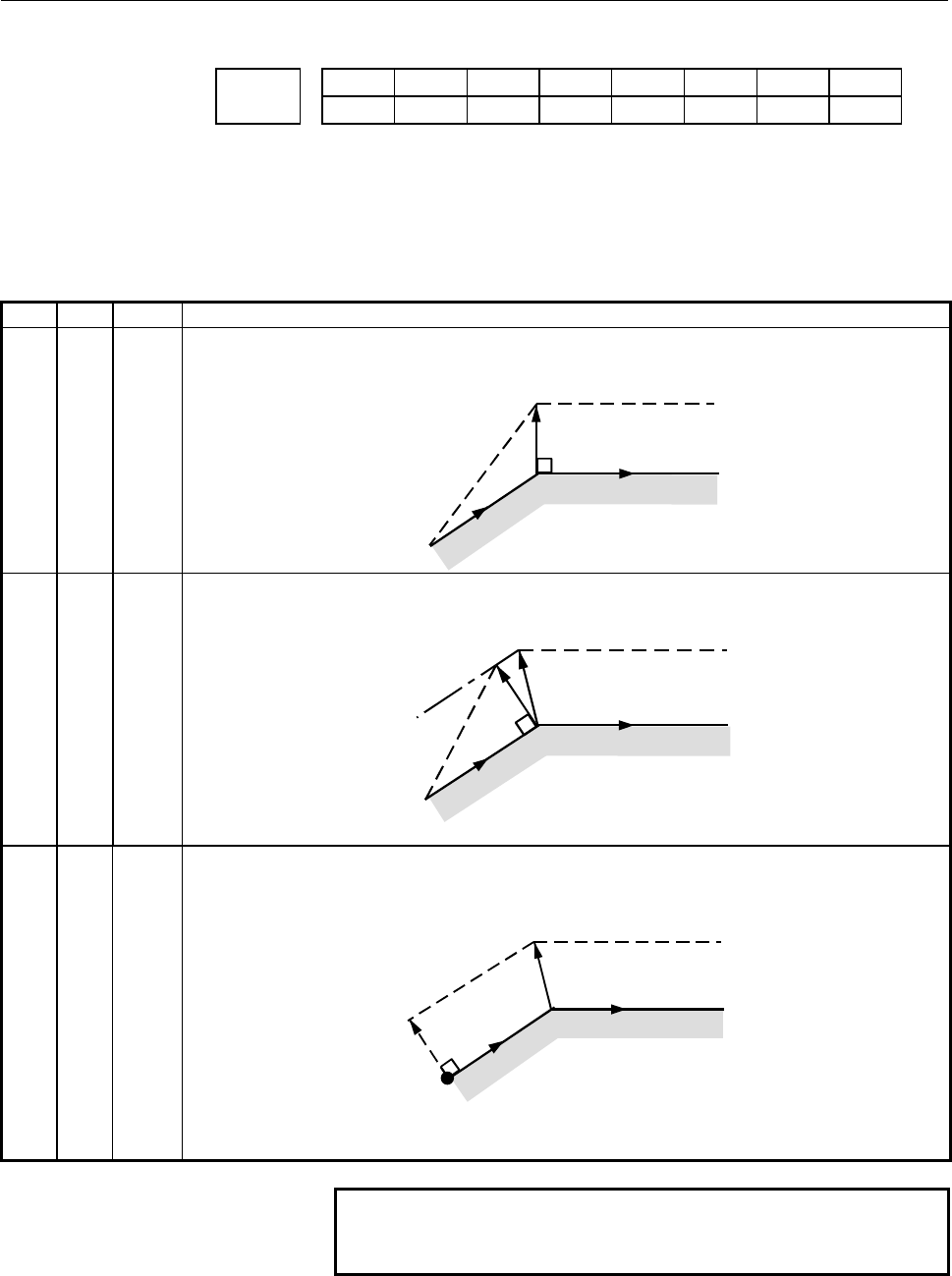

CSC CSU Type Operation

0 0 Type A A compensation vector perpendicular to the block next to the startup block or the block preceding

the cancellation block is output.

0 1 Type B A compensation vector perpendicular to the startup block or cancellation block and an

intersection vector are output.

1 0

Type C When the startup block or cancellation block specifies no movement operation, the tool is shifted

by the cutter compensation amount in a direction perpendicular to the block next to the startup or

the block before cancellation block.

When the block specifies movement operation, the type is set according to the SUP setting; if

SUP is 0, type A is set, and if SUP is 1, type B is set.

NOTE

When SUV,SUP = 0,1 (type B), an operation

equivalent to that of Series 16i-T is performed.

Tool center path

Programmed path

G41

Intersection point

Shift

G41

Tool center path

Intersection point

G41

Programmed path

Tool center path
