B-63944EN-1/02 PROGRAMMING 6.MEMORY OPERATION BY Series 15 FORMAT

- 283 -

(3) After turning, the tool cuts the workpiece along its figure and

escapes in cutting feed.

Escaping amount e (specified in the command o

parameter No. 5133)

Depth of cut ∆d (specified in the

command or parameter No. 5132)

Escaping after cutting

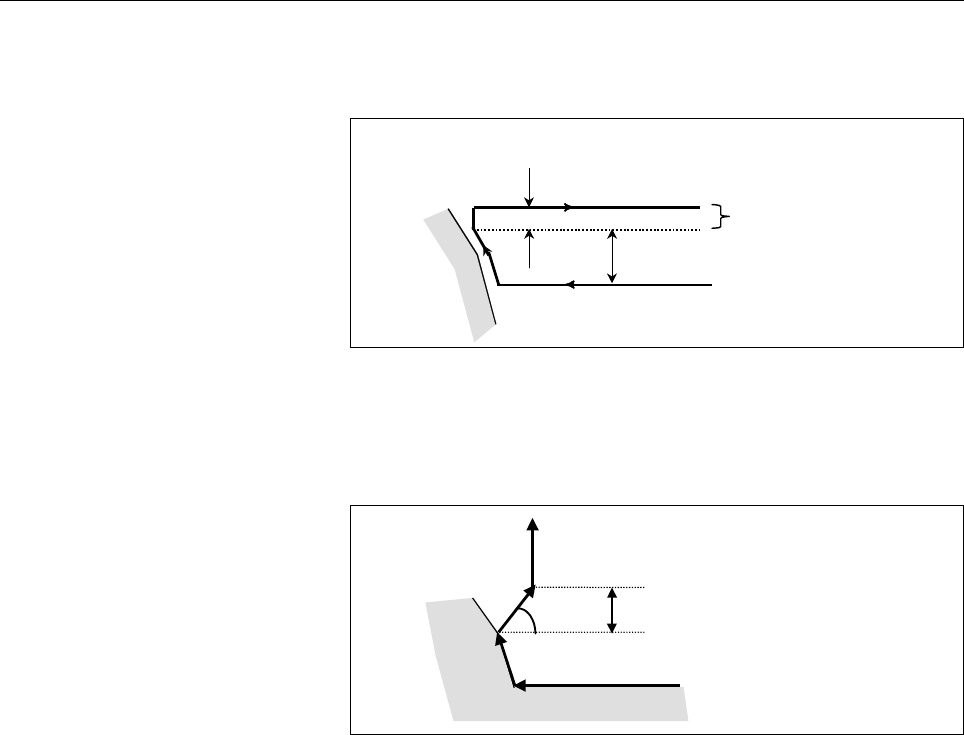

Fig. 6.4.1 (j) Cutting along the workpiece figure (type II)

The escaping amount e after cutting is set in parameter No. 5133.

When moving from the bottom, however, the tool escapes to the

direction of 45 degrees.

e (specified in the command or

parameter No. 5133)

45°

Bottom

Fig. 6.4.1 (k) Escaping from the bottom to the direction of 45 degrees

(4) When a position parallel to the first axis on the plane (Z-axis for

the ZX plane) is specified in a block in the program for the target

figure, it is assumed to be at the bottom of a pocket.

(5) After all rough cutting terminates along the first axis on the plane

(Z-axis for the ZX plane), the tool temporarily returns to the

cycle start point. At this time, when there is a position whose

height equals to that at the start point, the tool passes through the

point in the position obtained by adding depth of cut ∆d to the

position of the figure and returns to the start point.

Then, rough cutting is performed as finishing along the target

figure. At this time, the tool passes through the point in the

obtained position (to which depth of cut ∆d is added) when

returning to the start point.

Bit 2 (RF2) of parameter No. 5105 can be set to 1 so that rough

cutting as finishing is not performed.
