5.COMPENSATION FUNCTION PROGRAMMING B-63944EN-1/02

- 216 -

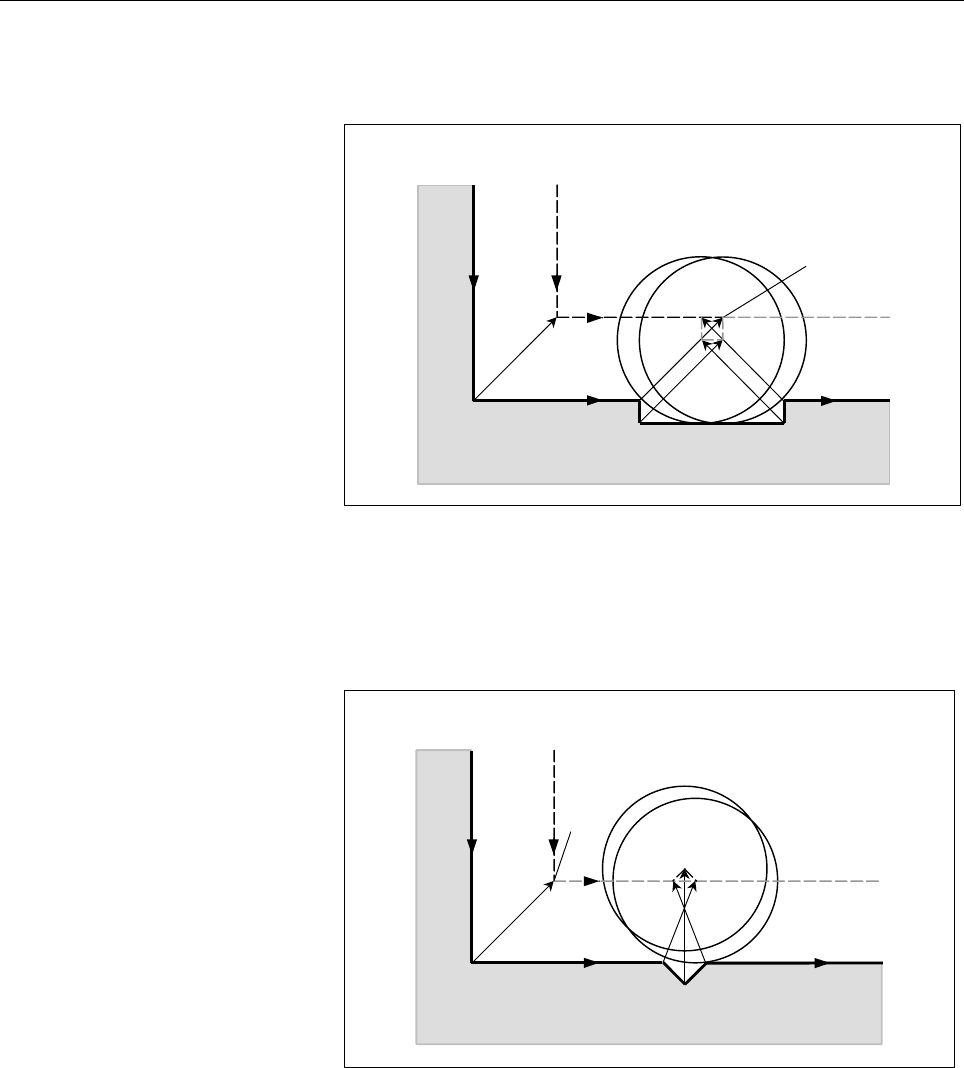

- When interference is assumed although actual interference does not occur

<1> Depression which is smaller than the cutter or tool nose radius

compensation value

Programmed

path

Tool nose radius center path

Stopped

There is no actual interference, but since the direction

programmed in block B is opposite to that of the path after the

tool nose radius compensation, the tool stops and an alarm is

displayed.

<2> Groove which is smaller than the cutter or tool nose radius

compensation value

Stopped

Programmed

path

Tool nose radius center path

Like <1>, an alarm is displayed because of the interference as the

direction is reverse in block B.
