B-63944EN-1/02 PROGRAMMING 6.MEMORY OPERATION BY Series 15 FORMAT

- 333 -

6.5.7 Boring Cycle (G85)

This cycle is used to bore a hole.

Format

G89 X_ Y_ Z_ R_ P_ F_ L_ ;

X_ Y_ : Hole position data

Z_ : The distance from point R to the bottom of the hole

R_ : The distance from the initial level to point R level

P_ : Dwell time at the bottom of a hole

F_ : Cutting feedrate

L_ : Number of repeats (When it is needed.)

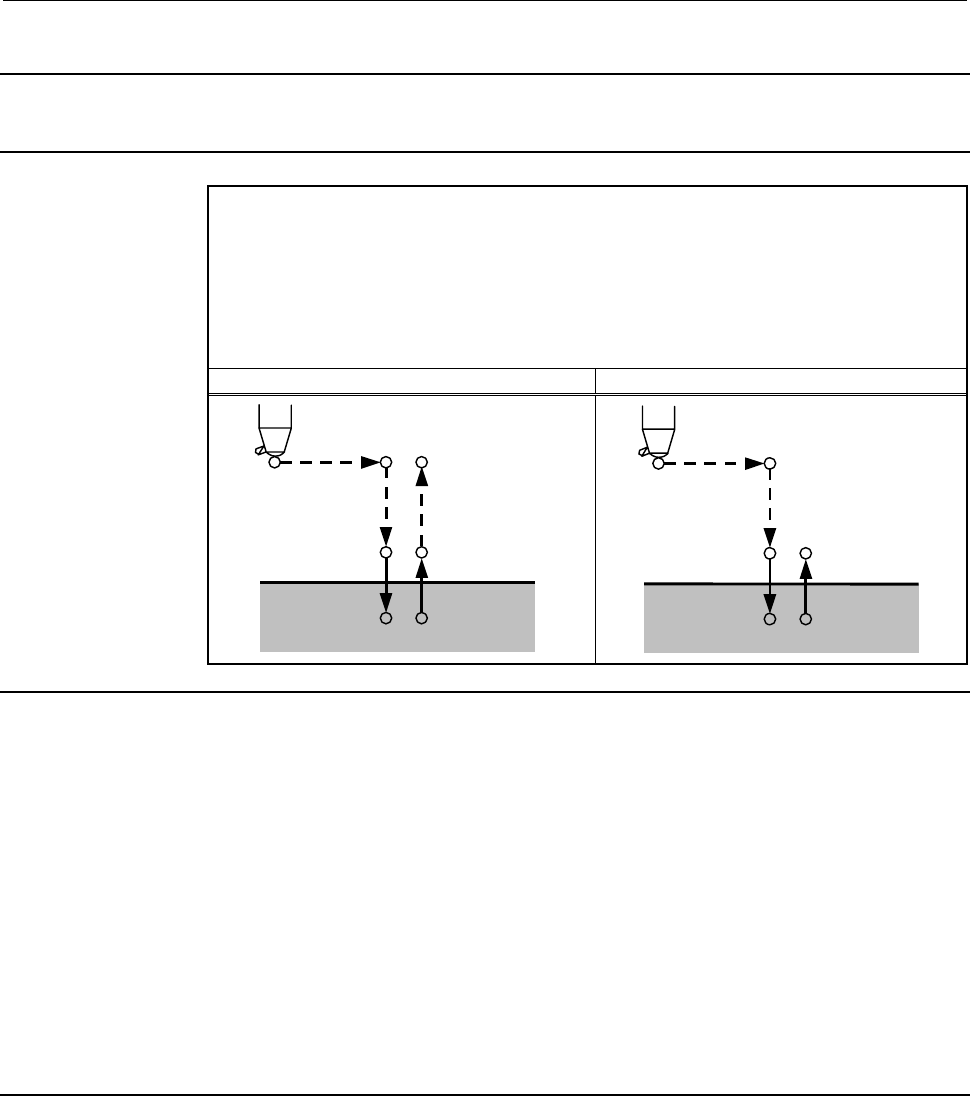

G85 (G98 mode) G85 (G99 mode)

Point R

Point Z

Initial level

Point R

Point Z

Point R level

Explanation

- Operations

This is the same as G85, but dwelling is performed at the bottom of

the hole.

- Spindle rotation

Before specifying G89, use an auxiliary function (M code) to rotate

the spindle.

- Auxiliary function

If the G89 command and an M code are specified in the same block,

the M code is executed at the first positioning. When repetitive count

L is specified, the operation above is performed for the first time and

the M code is not performed second and later times.

Limitation

- Axis switching

Before switching between drilling axes, cancel canned cycles for

drilling.

- Drilling

In a block that does not include X, Y, Z, R, or an additional axis,

drilling is not performed.
