6.MEMORY OPERATION BY Series 15 FORMAT PROGRAMMING B-63944EN-1/02

- 306 -

NOTE

1 Even if pocket calculator type decimal point

programming is specified (DPI (bit 0 of parameter

No. 3401) = 1), the unit of address D is least input

increment. In addition, when a decimal point is

input in address D, the alarm (PS0007) is issued.

2 A decimal point included in address A has no

meaning. That is, A120. is equivalent to A120 in

specifying 120 degrees.

3 To use P2, P3, or P4 as a cutting method, the

option for multiple repetitive lathe canned cycle II is

required.

Unit

Diameter/radius

programming

Sign

Depends on the increment

system for the reference axis.

Radius programming Required

Depends on the increment

system for the reference axis.

Radius programming

Not

required

∆d

Depends on the increment

system for the reference axis.

Radius programming

Not

required

(F)

(R) A

U/2

∆

(R)

r: Amount of thread chamfering (parameter No.5130)

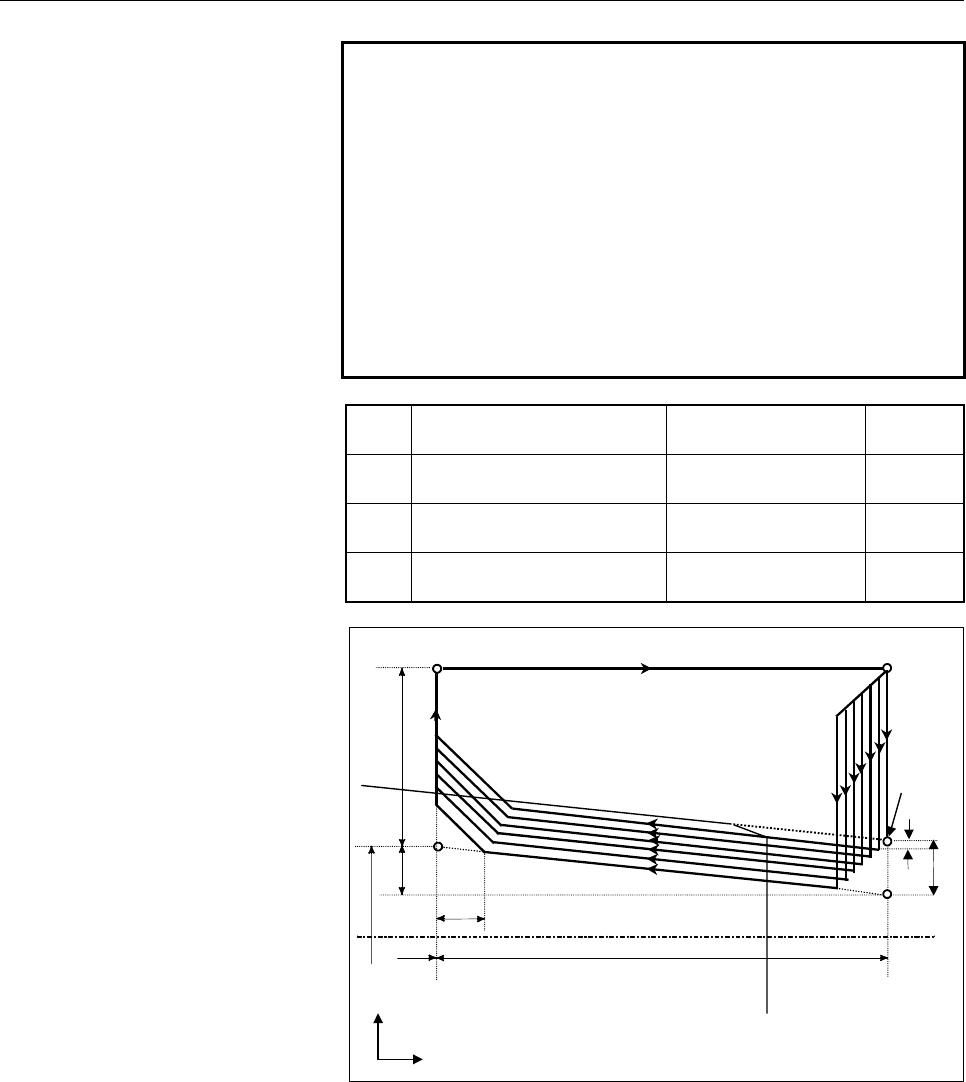

Fig. 6.4.7 (c) Cutting path in multiple threading cycle
