B-63944EN-1/02 OPERATION 2.SETTING AND DISPLAYING DATA

- 371 -

2.1.6 Setting Tool Compensation/Second Geometry Offset Values

To compensate for a difference in tool attachment position or selection

position, second geometry offset can be applied in addition to tool

offset. As second geometry offset values, X-axis, Y-axis, and Z-axis

offset values can be set.

Procedure for displaying and setting second geometry offset values

Procedure

1 Press function key

OFFSET

SETTING

2 Press the continuous menu key

several times until the

screen with soft key [GEOM.2] is displayed.

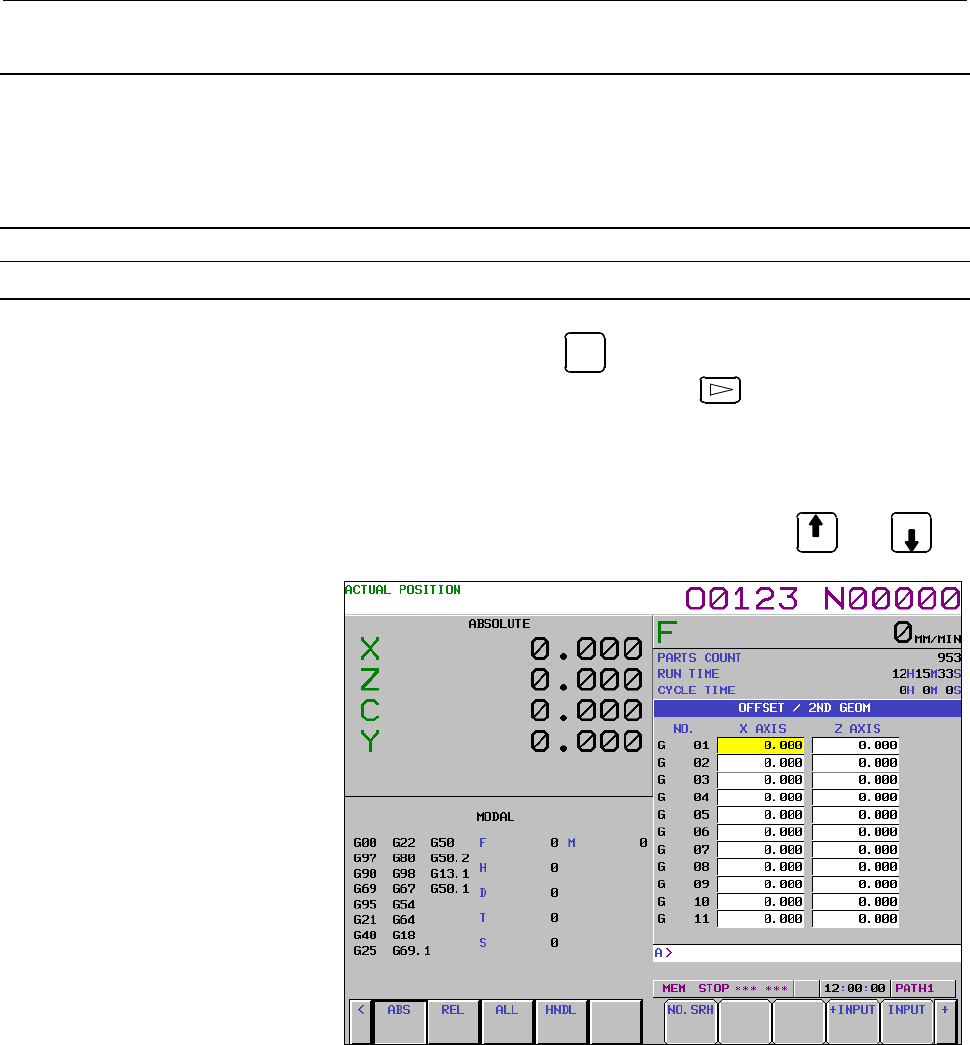

3 Press the soft key [GEOM.2]. The tool compensation/second

geometry offset screen is displayed. When displaying data

other than the data of the second geometry offset number

currently displayed, press the page key

PAGE

display the screen for a desired second geometry offset number.

Fig. 2.1.6 (a)
