B-63944EN-1/02 PROGRAMMING 6.MEMORY OPERATION BY Series 15 FORMAT

- 321 -

6.5.1 High-speed Peck Drilling Cycle (G83.1)

This cycle performs high-speed peck drilling. It performs cutting feed

intermittently while discharging chips.

Format

G83.1 X_ Y_ Z_ R_ P_ Q_ F_ L_ ;

X_ Y_ : Hole position data

Z_ : The distance from point R to the bottom of the hole

R_ : The distance from the initial level to point R level

P_ : Dwell time

Q_ : Depth of cut for each cutting feed

F_ : Cutting feedrate

L_ : Number of repeats (When it is needed)

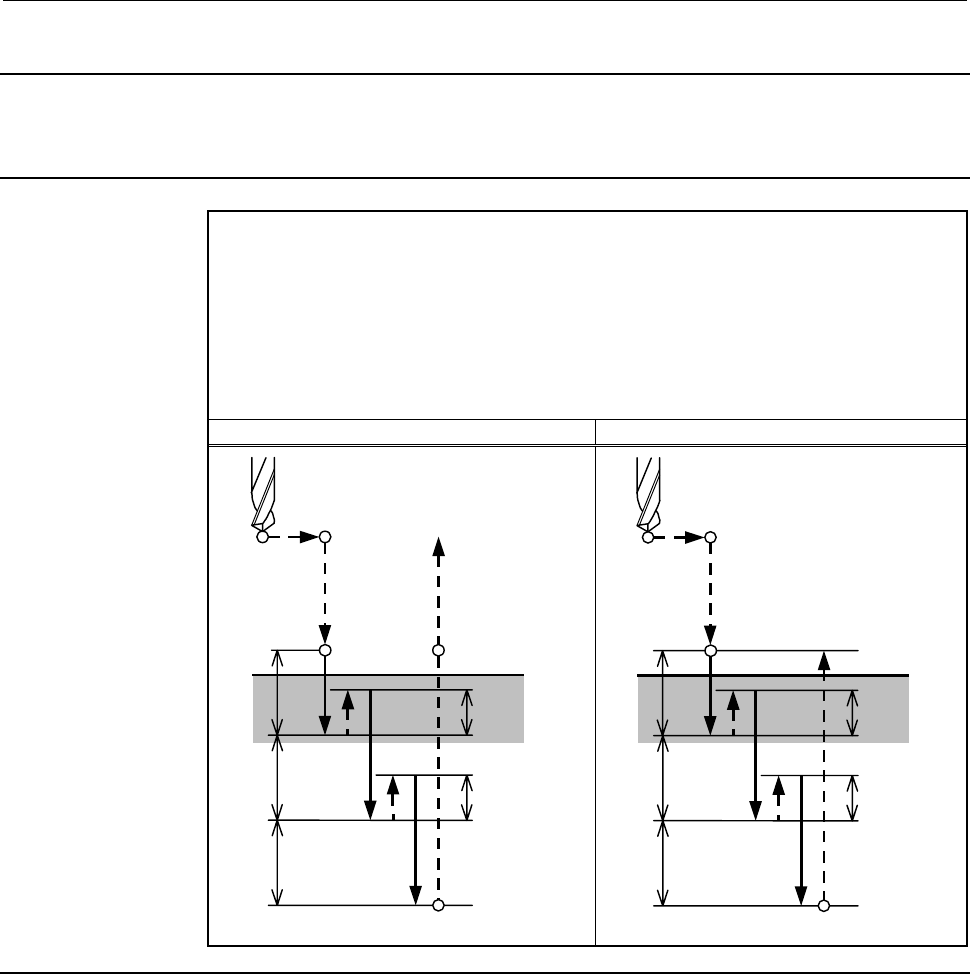

G83.1 (G98 mode) G83.1 (G99 mode)

Point R

Point Z

Initial level

Point R level

Point R

Point Z

Explanation

- Operations

Since intermittent feed in the Z-axis direction makes discharge of

chips easier and allows the fine setting of the escaping amount,

efficient machining can be performed.

Escape amount d is set in parameter No. 5114.

Escaping moves in rapid traverse.

- Spindle rotation

Before specifying G83.1, use an auxiliary function (M code) to rotate

the spindle.
