B-63944EN-1/02 PROGRAMMING 5.COMPENSATION FUNCTION

- 157 -

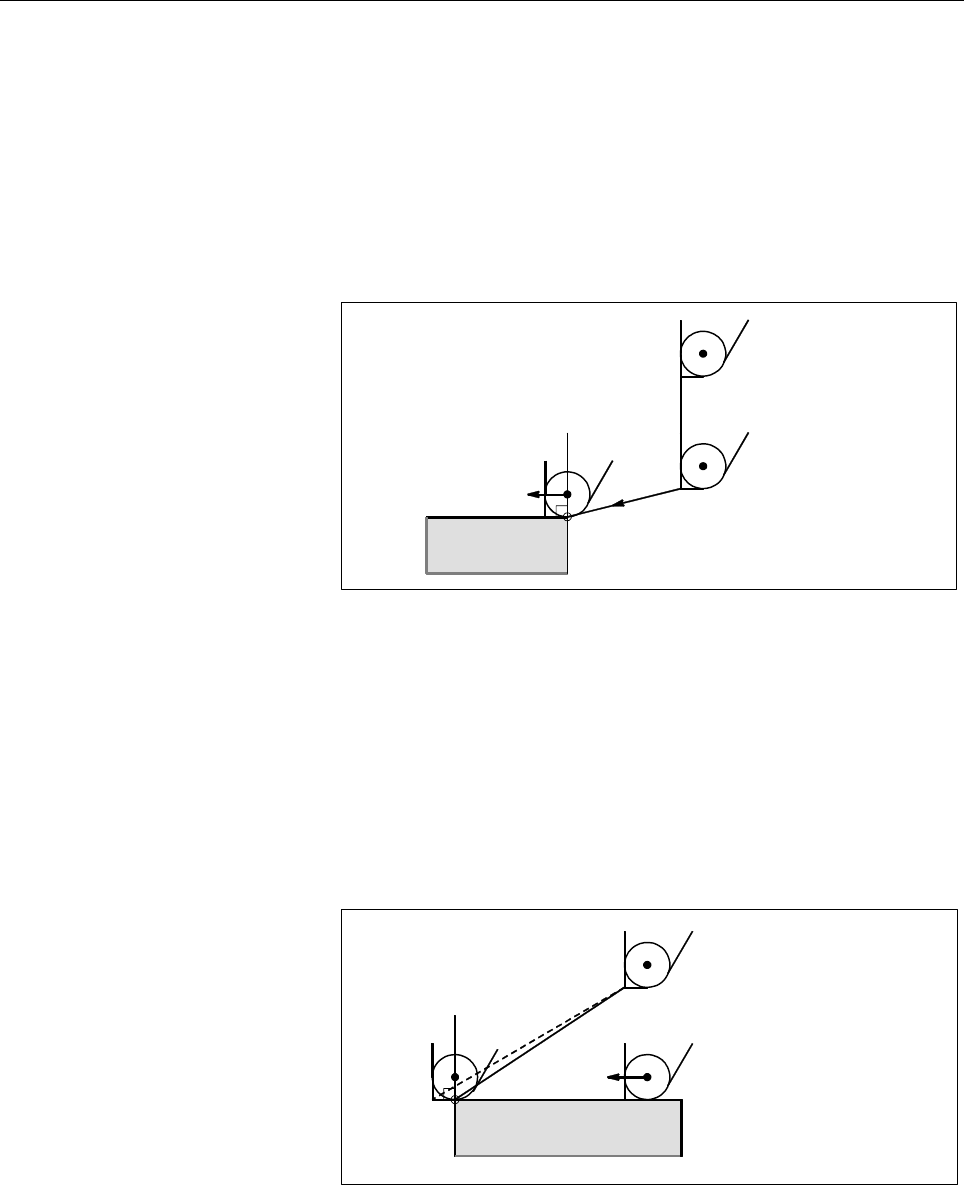

- Start-up

The block in which the mode changes to G41 or G42 from G40 is

called the start-up block.

G40 _ ;

G41 _ ; (Start-up block)

Transient tool movements for offset are performed in the start-up

block. In the block after the start-up block, the tool nose center is

positioned Vertically to the programmed path of that block at the start

point.

G40

(G42)

G42 (Start-up)

Fig. 5.2.4 (e) Start-up

- Offset cancel

The block in which the mode changes to G40 from G41 or G42 is

called the offset cancel block.

G41 _ ;

G40 _ ; (Offset cancel block)

The tool nose center moves to a position vertical to the programmed

path in the block before the cancel block.

The tool is positioned at the end position in the offset cancel block

(G40) as shown below.

G40

(G42)

End position

Fig. 5.2.4 (f) Offset cancel
