B-63944EN-1/02 PROGRAMMING 6.MEMORY OPERATION BY Series 15 FORMAT

- 259 -

6.3.2.2 Taper threading cycle

Format

ZpXp-plane

G92 X(U)_ Z(W)_ I_ F_ Q_ ;

YpZp-plane

G92 Y(V)_ Z(W)_ K_ F_ Q_ ;

XpYp-plane

G92 X(U)_ Y(V)_ J_ F_ Q_ ;

X_,Y_,Z_ : Coordinates of the cutting end point (point A' in

the figure below) in the direction of the length

U_,V_,W_ : Travel distance to the cutting end point (point A'

in the figure below) in the direction of the length

Q_ : Angle for shifting the threading start angle

(Increment: 0.001 degrees,

Valid setting range: 0 to 360 degrees)

R_ : Taper amount (R in the figure below)

F_ : Thread lead (L in the figure below)

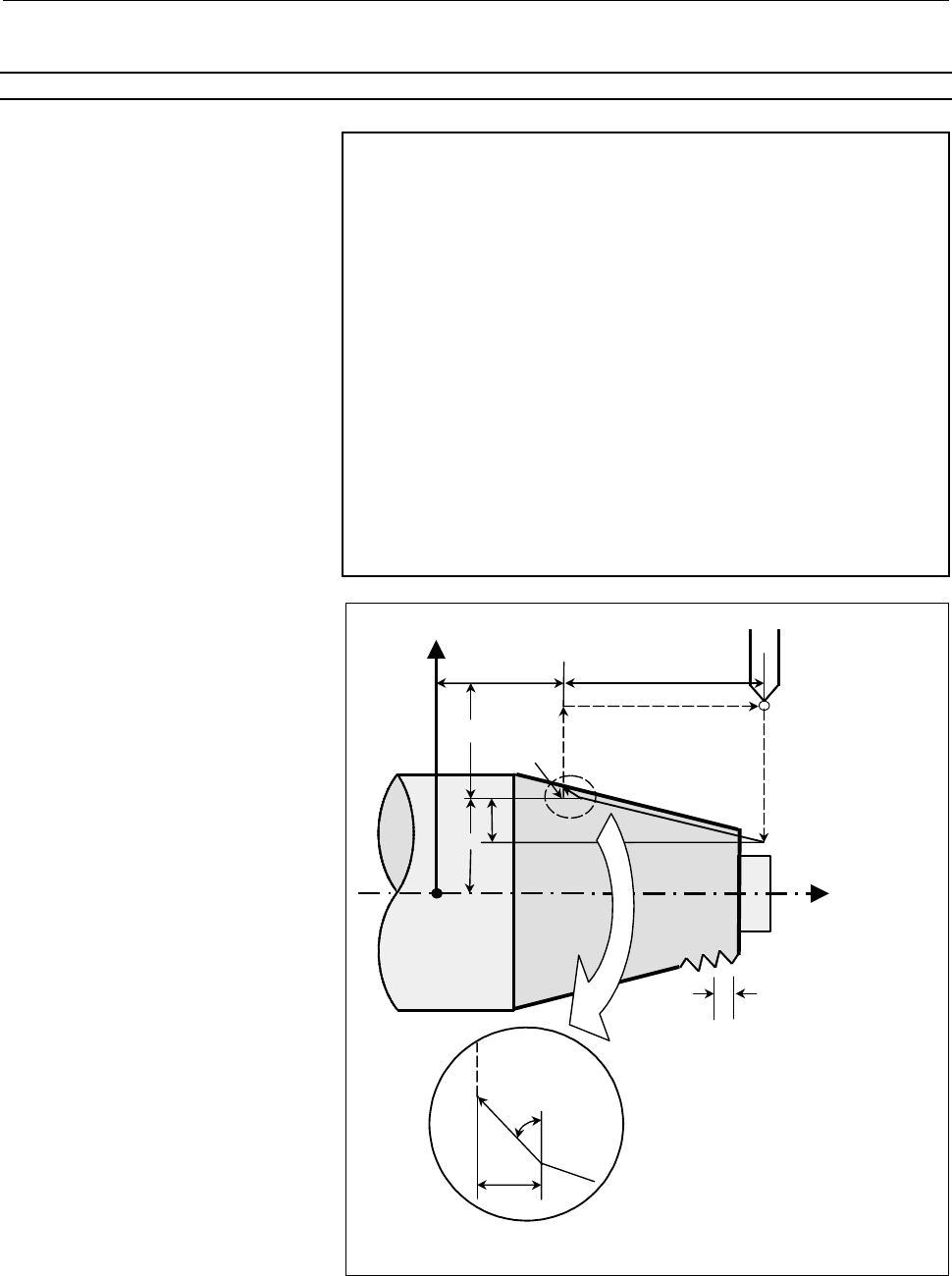

Detailed chamfered thread

1(R)

Z axis

3(R)

4(R)

2(F)

U/2

X/2

X axis

pprox. 45°

(The chamfered angle in the left figure

is 45 degrees or less because of the

delay in the servo system.)

(R)....Rapid traverse

(F) ....Cutting feed

’

Fig. 6.3.2 (d) Taper threading cycle
