PROGRAMMING

9. PRESSING FUNCTION

B–63124EN/01

, y

)

, y

)

’, y

’)

, y

)(x

, y

)(x

, y

)(x

, y

)

, y

)

’, y

’)

, y

)

N220

N230

N240

N250

N260

N270

N290

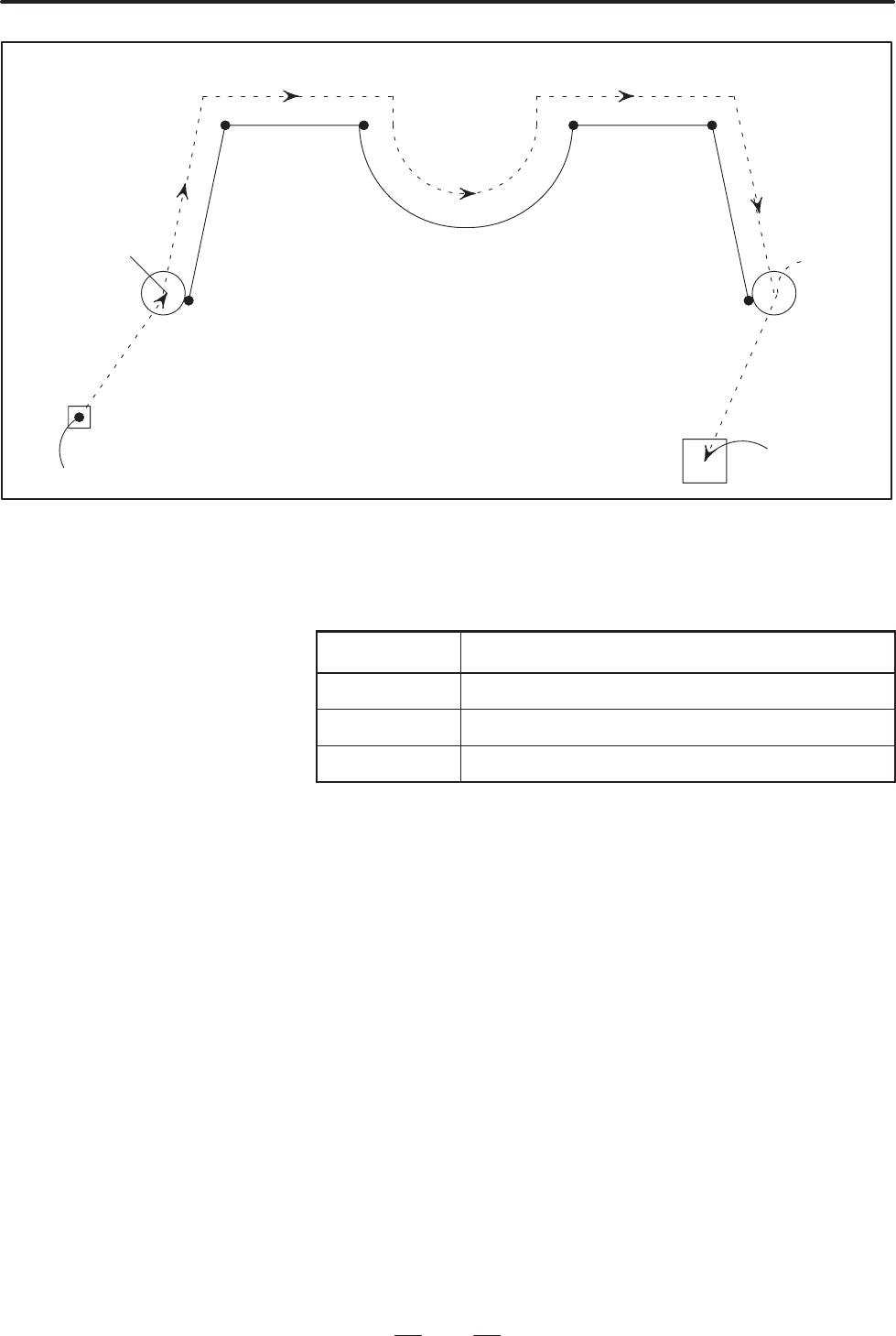

The G40, G41, and G42 codes function as follows.

For details, refer to 13.1 Cutter compensation.

G code Function

G40 Cutter compensation cancel

G41 Leftward offset for moving direction of tool

G42 Rightward offset for moving direction of tool

Assume that the diameter (radius) of the tool selected by T02 is preset to

offset No. 02.

(1)The first punch point of nibbling and either G41 or G42 to offset the

tool leftwards or rightwards as viewed from the moving direction of

the tool are commanded in the block next to M12 block. The first

punch point is commanded by G00.

The first punch point (x

, y

) of nibbling is commanded and also

G41 is commanded in the N220 block.

Accordingly, positioning is done at rapid traverse to the point (x

’,

’) being offset leftwards to the commanded position by the tool

diameter being preset to offset No. 02.

Nibbling is started when the positioning has been completed and

the motion corresponding to T code has been finished.

(2)The straight line is commanded by G01, the circular arc is commanded

by G02, G03, and the pitch is commanded by Q, starting with the block

next to the block where the first punch point was commanded.

Since pitch Q is a modal data, it is no longer needed to designate pitch

Q after pitch Q was designated once.

The axis movement to pitch Q is done at rapid traverse.
