PROGRAMMING

B–63124EN/01

14. FUNCTIONS TO SIMPLIFY

PROGRAMMING

183

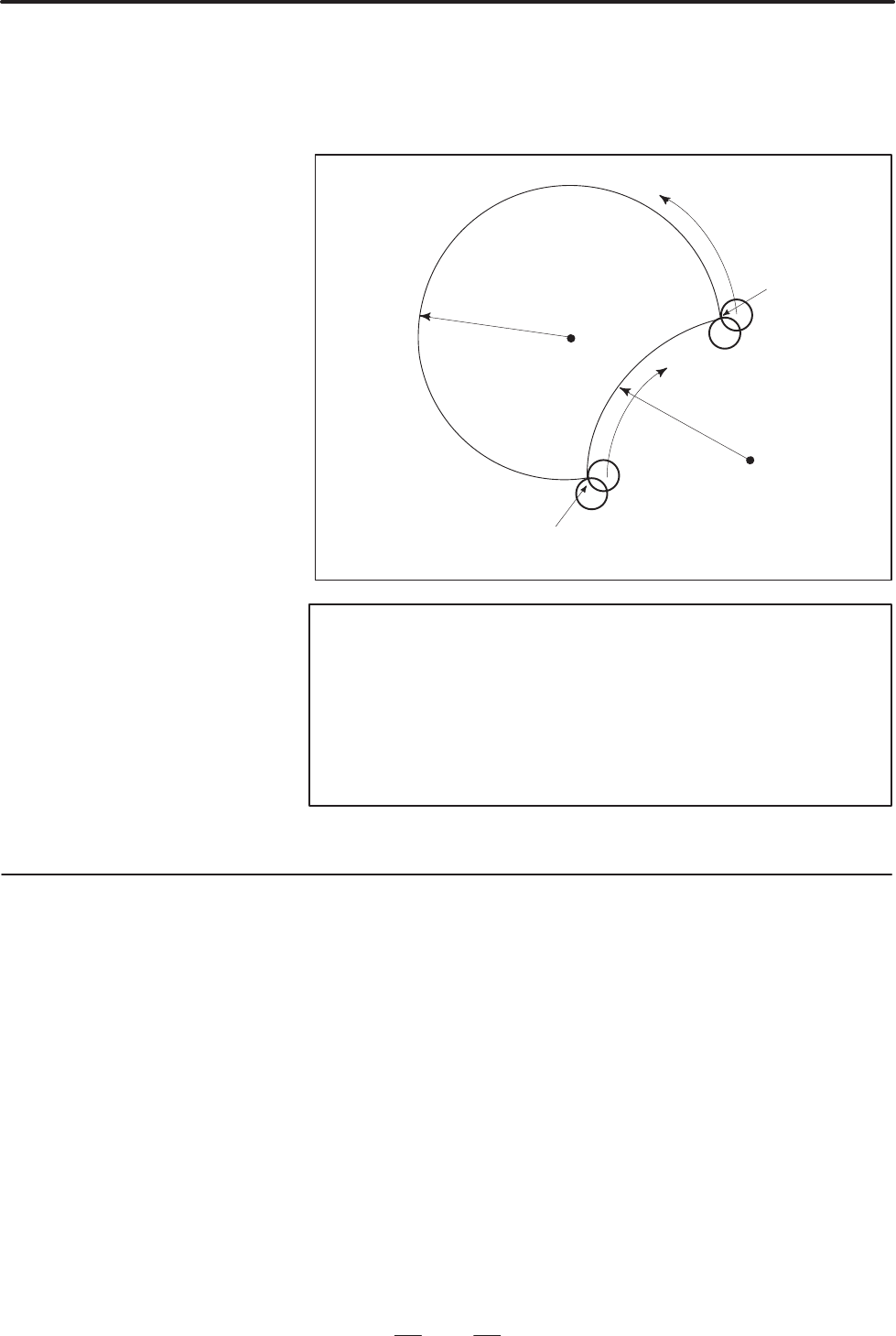

(1)G72G90X100.Y100. ;

G46X200.Y200.R100.P-20.Q10. ; 

G47X100.Y100.R-100.P20.Q10. ; 

r=100

(200, 200)

(100, 100)





NOTE

1 When the start and end points of an arc are the same in a

G46 or G47 command, if either the radius of the arc is zero

or the interval exceeds the circumference, alarm No. 4511

is issued.

2 If address R and address Q are not specified, alarm No.

4511 is issued.

When any of the tools which can be rotated around the C-axis are specified

in parameters No. 16370 to No. 16389 are selected in a block containing

a G45, G46, or G47 command or a preceding block, the C-axis is

automatically controlled in the following way in the block containing the

G45, G46, or G47 command.

When a G45 command is specified, the C-axis is controlled at the first

punch position so that the C-axis is oriented to the angle formed by the

X-axis and the line connecting the start and end points.

When a G46 or G47 command is specified, the C-axis is controlled at each

punch position so that one side of the tool is oriented to the center of the

arc.

Examples

14.7.3

Controlling the C-axis
