PROGRAMMING

B–63124EN/01

14. FUNCTIONS TO SIMPLIFY

PROGRAMMING

179

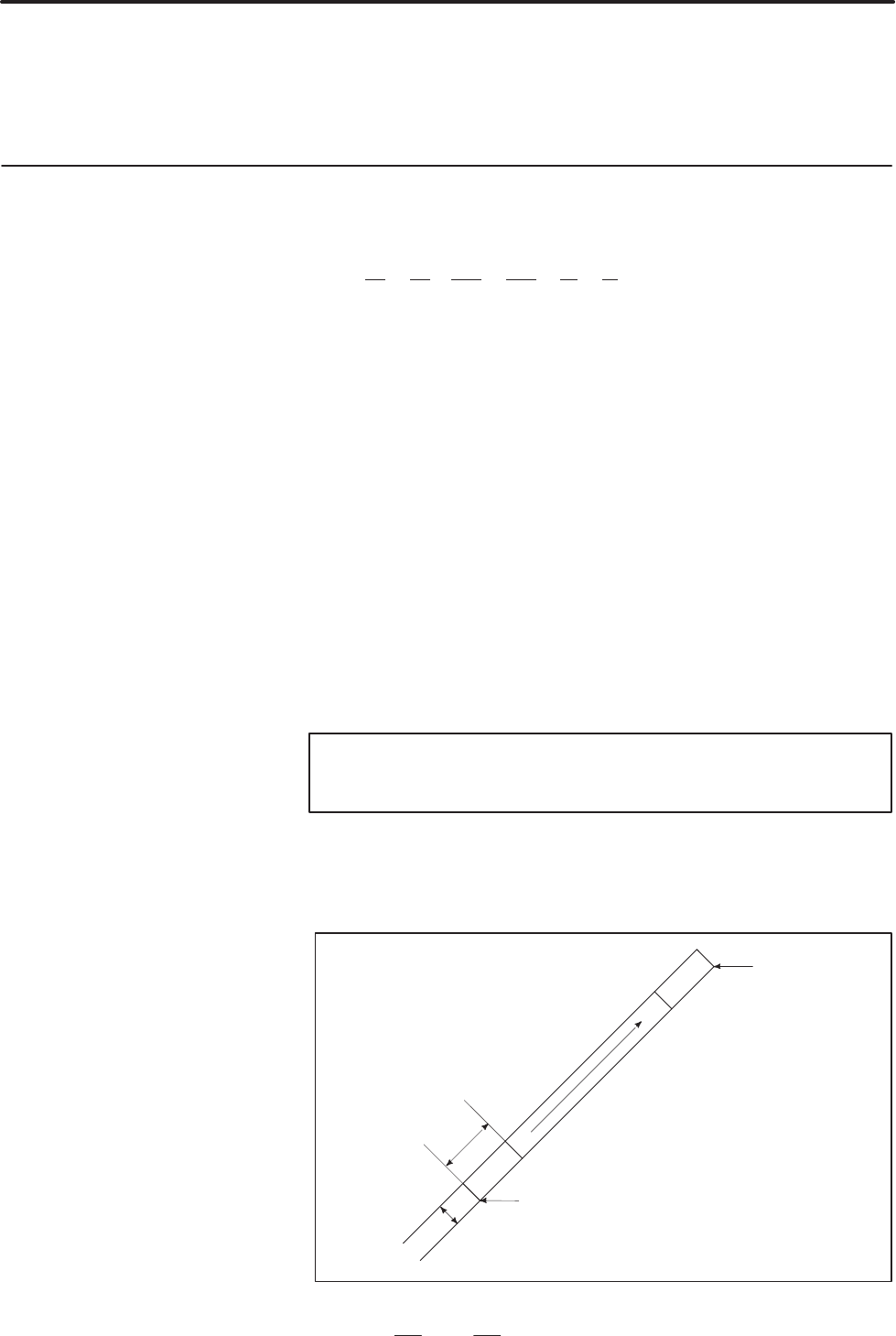

This command specifies the punch operation from the current position or

the position specified by the G72 command to an end point at coordinates

(x, y) with a tool which is dx wide and dy long.

G45X y Y y P dx Q dy R r D j ;

x : X coordinate of the end point

y : Y coordinate of the end point

dx : Dimension of the tool in the direction along which the punch

moves

dy : Dimension of the tool in the direction perpendicular to that in

which the punch moves

r : Direction in which a tool is shifted relative to the direction in

which the punch moves (can be omitted)

r = 0 : No shift (on the line programmed)

r < 0 : Right

r > 0 : Left

j : Width of a micro-joint (can be omitted)

j = 0 : No compensation

j < 0 : The setting reduces the dimension of the punched portion in the

direction the punch moves at both ends.

j > 0 : The setting increases the dimension of the punched portion in

the direction the punch moves at both ends.

NOTE

Enter data in the specified units.

(1)G72G90X10.Y50. ;

G45X200.Y200.P20.Q10.R1 ;

(200, 200)

(10, 50)

14.7

LINEAR AND

CIRCULAR PUNCH

COMMAND

14.7.1

Linear Punch

Command (G45)

Examples
