PROGRAMMING

4. INTERPOLATION FUNCTIONS

B–63124EN/01

G33 G91X100.0 F100;

Y50.0;

Y50.0

50.0

100.0

Skip signal is input here

Actual motion

Motion without skip signal

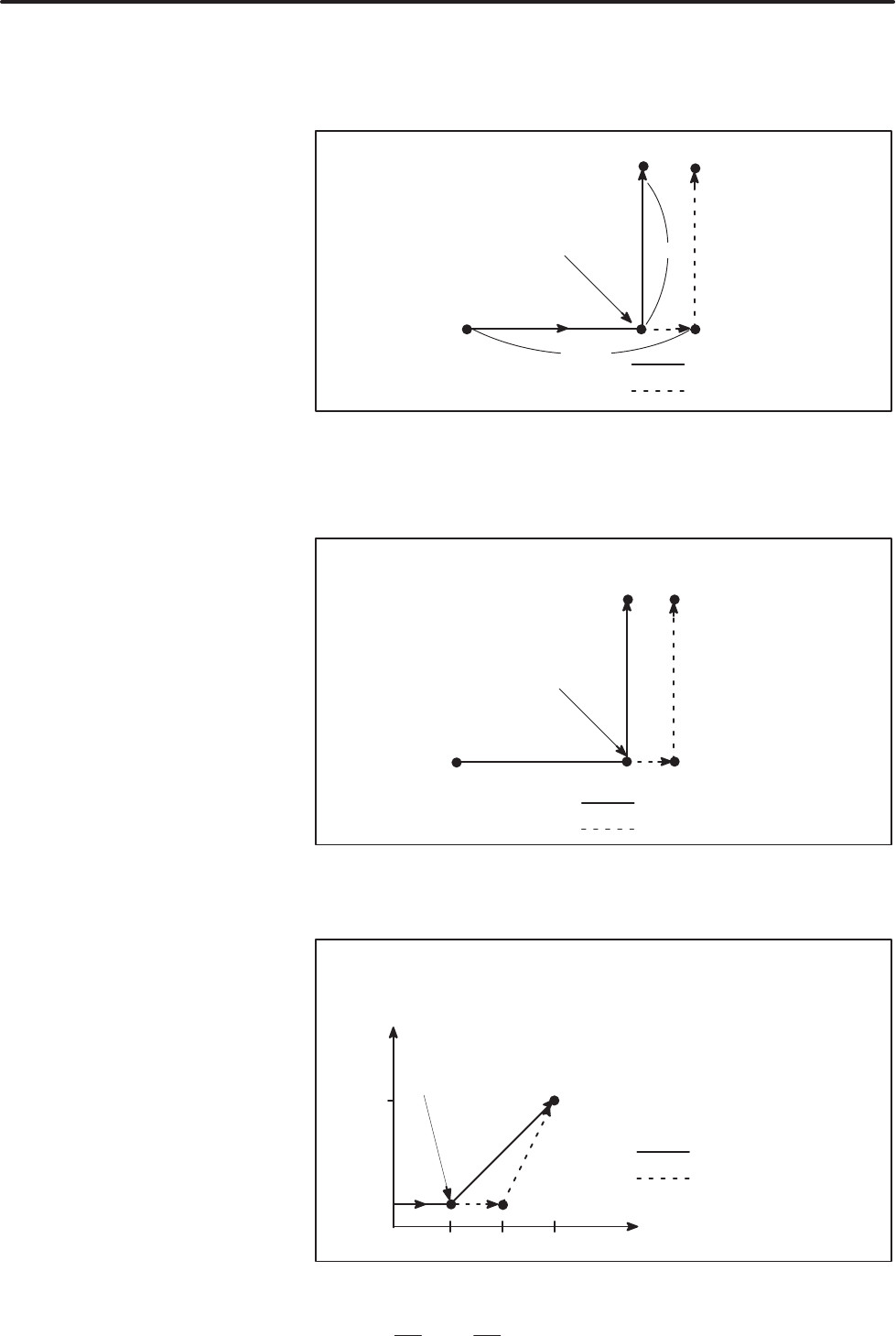

Fig.4.4 (a) The next block is an incremental command

G33 G90X200.00 F100;

Y100.0;

Y100.0

X200.0

Skip signal is input here

Actual motion

Motion without skip signal

Fig.4.4 (b) The next block is an absolute command for 1 axis

(300,100)

100 200 300

100

G33 G90X200.0 F100;

X300.0 Y100.0;

Actual motion

Motion without skip signal

Skip signal is input here

Fig 4.4 (c) The next block is an absolute command for 2 axes

Examples

D The next block to G33 is

an incremental

command

D The next block to G33 is

an absolute command

for 1 axis

D The next block to G33 is

an absolute command

for 2 axes
