PROGRAMMING

11. TOOL FUNCTION

(T FUNCTION)

B–63124EN/01

112

The tools of a multiple-tool system are selected by turning the C axis. A

tool is selected by placing it at the tool reference position. This position

is parallel to the Y axis and on the center line of the tool holder of a

multiple-tool system.

For each tool in a multiple-tool system, the angle the tool makes with the

tool reference position is set in tool registering screen for. When the T

code of a multiple-tool system is issued, the CNC system sends an internal

command to the C axis, indicating the angle with the tool reference

position corresponding to the selected tool. The CNC system places the

selected tool in the tool reference position.

–

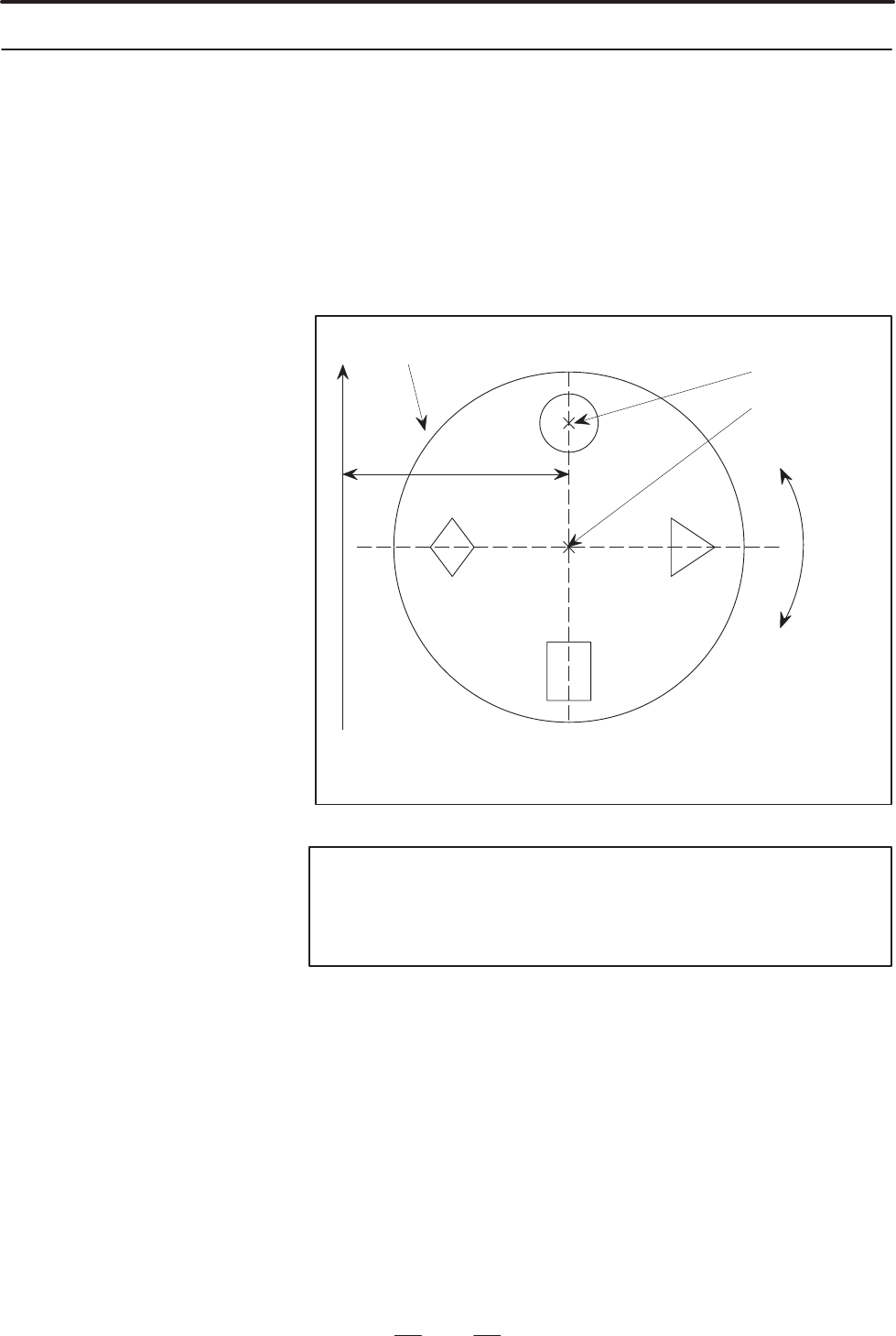

T1104 T1102

T1103

T1101

Direction

of rota-

tion

Tool reference

position

Center of the

tool holder

Multiple-tool system T11

Parallel

Angle with the tool

reference position

T1101 = 0.0°

T1102 = 90.0°

T1103 = 180.0°

T1104 = 270.0°

Fig. 11.5.2

WARNING

Setting the angle with the tool reference position to 0

indicates the tool that is selected when the indexing of the

multiple-tool system is finished.

11.5.2

Relationship Between

the Multiple-Tool

System and the C axis
