PROGRAMMING

15. COMPENSATION FUNCTION

B–63124EN/01

202

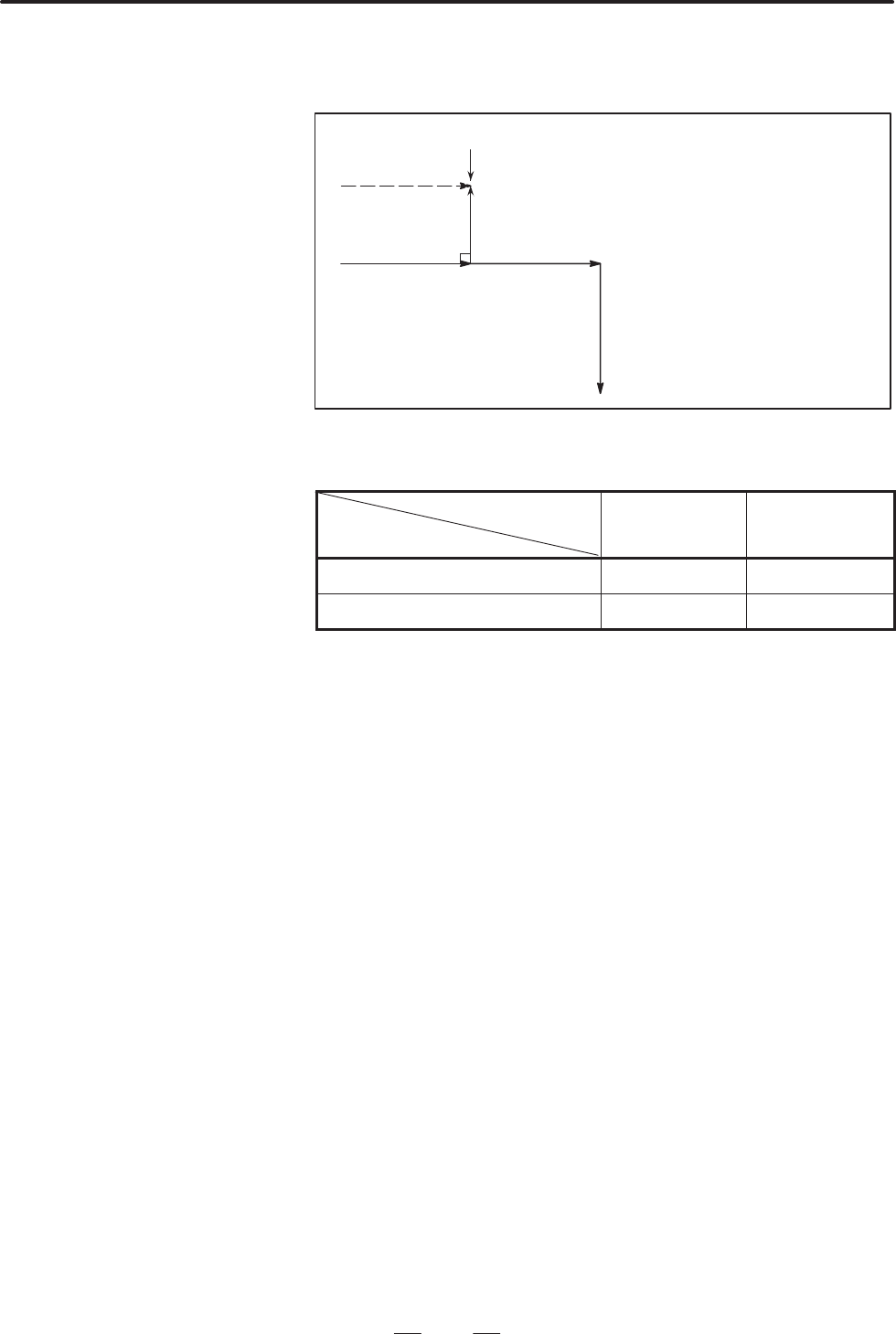

If the center of the arc is identical with the start position or end point,

alarm (No. 038) is displayed, and the tool will stop at the end position of

the preceding block.

N5 N6

Alarm(No.038)is displayed and the tool

stops

(G41)

N5 G01 X100.0 ;

N6 G02 X100.0 I0 J0 ;

N7 G03 Y–100.0 J–100.0 ;

Tool center path

Programmed path

The offset direction is decided by G codes (G41 and G42) for cutter radius

and the sign of cutter compensation value as follows.

Sign of offset amount

Gcode

+ –

G41 Left side offset Right side offset

G42 Right side offset Left side offset

The offset direction can be changed in the offset mode. If the offset

direction is changed in a block, a vector is generated at the intersection

of the tool center path of that block and the tool center path of a preceding

block. However, the change is not available in the start–up block and the

block following it.

      

     

  

D Change in the offset

direction in the offset

mode
