PROGRAMMING

B–63124EN/01

15. COMPENSATION FUNCTION

207

During offset mode, if G92 (absolute zero point programming) is

commanded,the offset vector is temporarily cancelled and thereafter

offset mode is automatically restored.

In this case, without movement of offset cancel, the tool moves directly

from the intersecting point to the commanded point where offset vector

is canceled. Also when restored to offset mode, the tool moves directly

to the intersecting point.

G92 block

(G41)

N5 G91 G01 X300.0 Y700.0 ;

N6 X–300.0 Y600.0 ;

N7 G92 X100.0 Y200.0 ;

N8 G90 G01 X400.0 Y800.0 ;

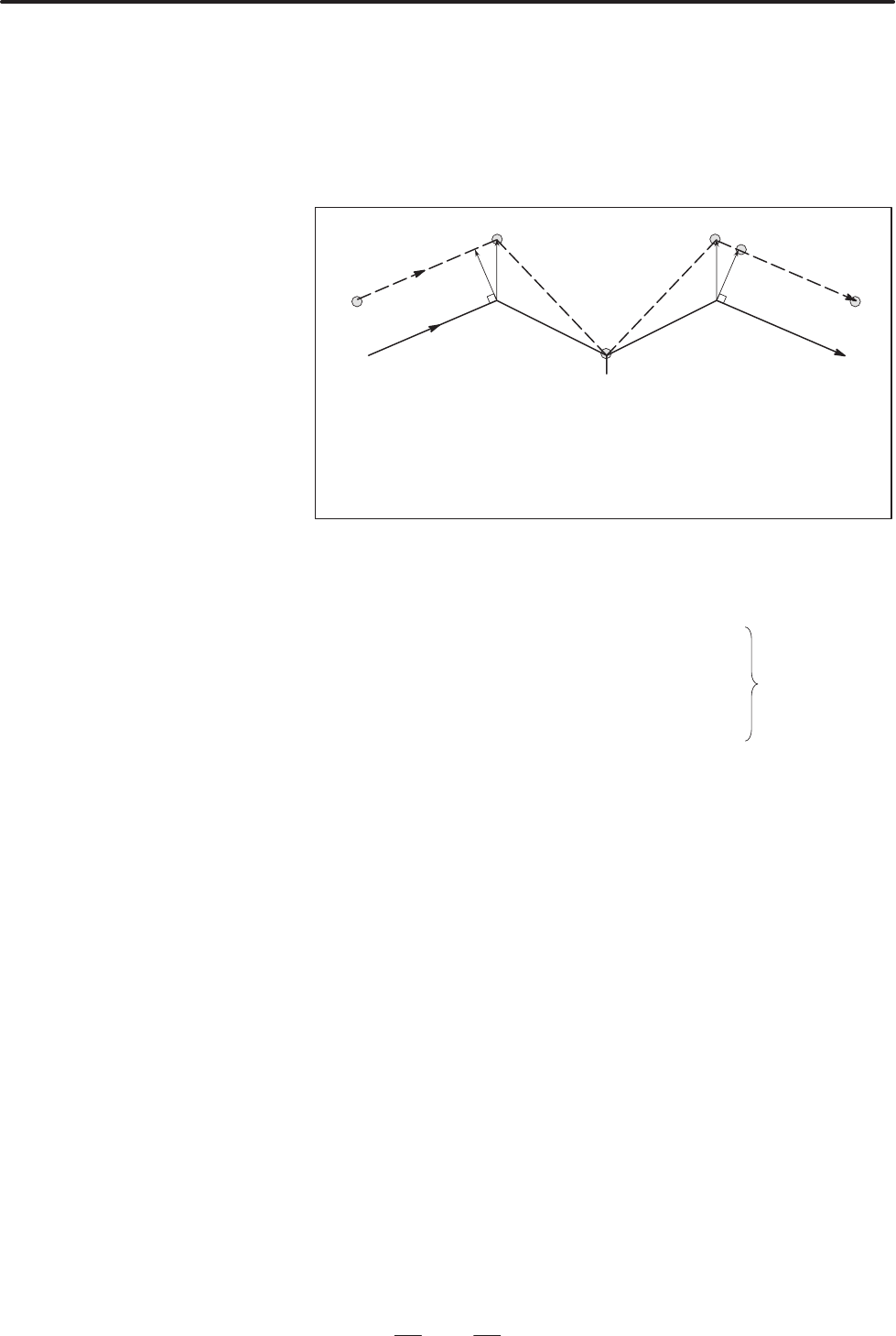

Tool center path

Programmed path

The following blocks have no tool movement. In these blocks, the tool

will not move even if cutter compensation is effected.

M05 ;. . . . . . . . . . . M code output

S21 ;

. . . . . . . . . . . S code output

G04 X100.0 ;

. . . . . Dwell

G10 L11 P01 R10.0 ; Cutter compensation value setting

(G17) Z200.0 ;

. . . . Move command not included in the

offset plane.

G90 ;

. . . . . . . . . . G code only

G91 X0 ;

. . . . . . . . Move distance is zero.

Commands (1) to

(6) are of no

movement.

D Command cancelling the

offset vector temporarily

D A block without tool

movement
