PROGRAMMING

5. FEED FUNCTIONS

B–63124EN/01

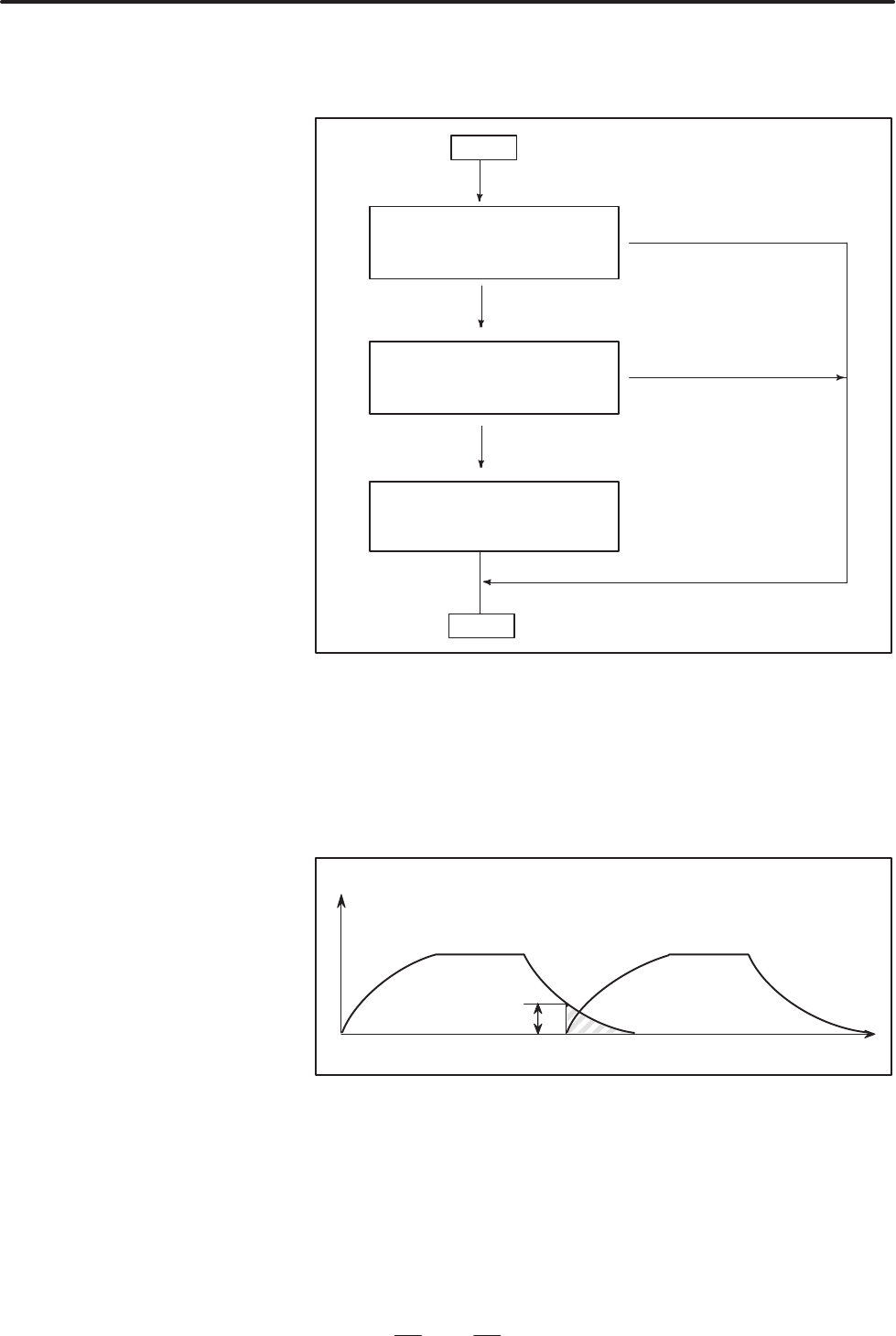

The flowchart for feedrate control is shown below.

START

Yes

END

Is the corner angle smaller than

the angle specified in parameter

No. 1740?

Are the feedrates along the X–

and Y–axes smaller than that

specified in parameter No. 1741?

Further decelerates the

feedrate in block A

The number of accumulated

pulses is determined to be zero

and block B is executed

When the corner angle is smaller than the angle specified in the

parameter, the relationship between the feedrate and time is as shown

below. Although accumulated pulses equivalent to the hatched area

remain at time t, the next block is executed because the feedrate of the

automatic acceleration/deceleration circuit is smaller than the

parameter–set value. This function is effective only for movement on

the selected plane.



Feedrate V

Block A

Block B

Parameter–set feedrate

Time t

Explanations

D Flowchart for feedrate

control

D Feedrate and time
