PROGRAMMING

B–63124EN/01

13. PROGRAM CONFIGURATION

123

A program consists of the following components:

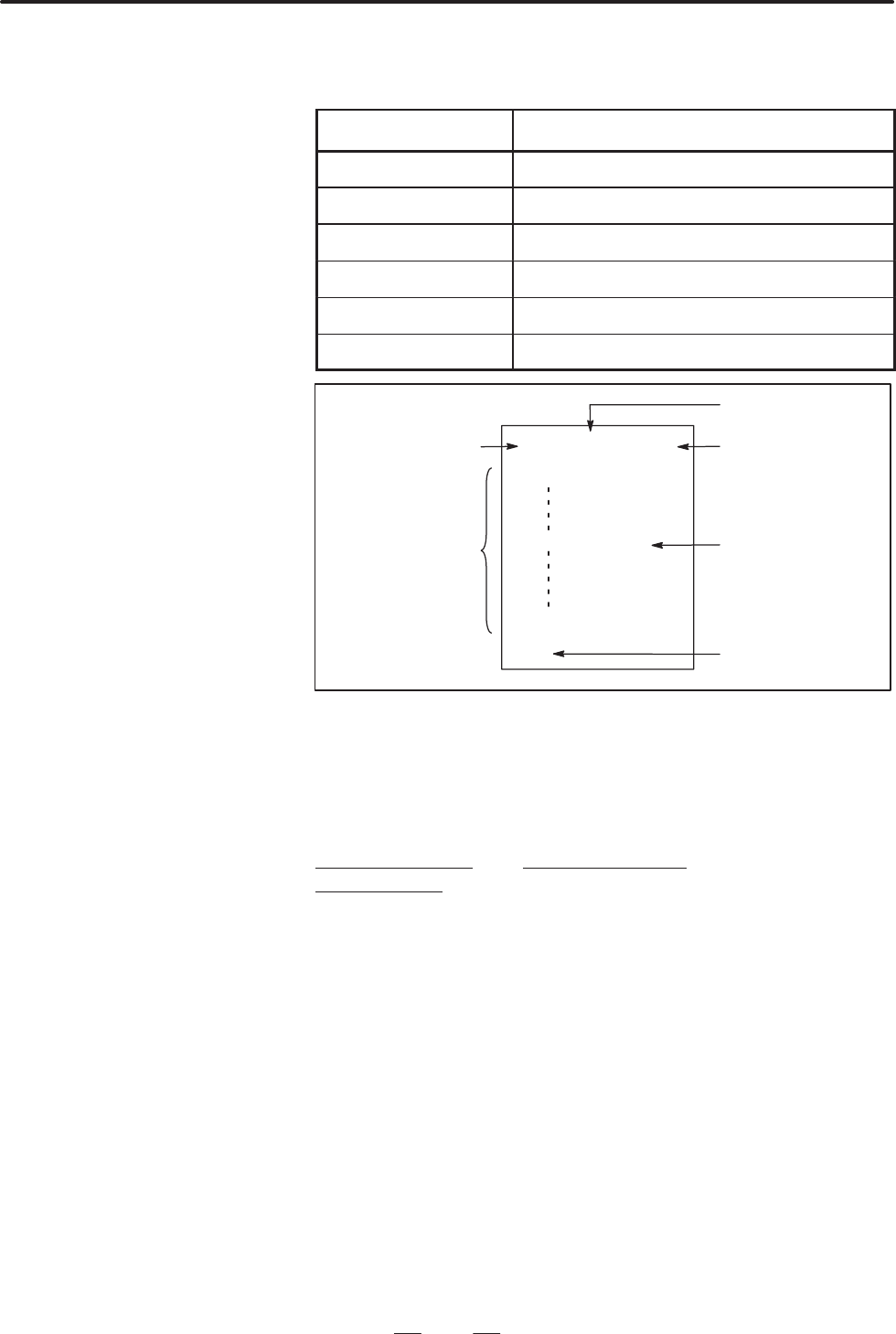

Table 13 (a) Program components

Components Descriptions

Tape start Symbol indicating the start of a program file

Leader section Used for the title of a program file, etc.

Program start Symbol indicating the start of a program

Program section Commands for machining

Comment section Comments or directions for the operator

Tape end Symbol indicating the end of a program file

Tape start

% TITLE ;

O0001 ;

M30 ;

(COMMENT)

Program section

Leader section

Program start

Comment section

Tape end

Fig.13 (b) Program configuration

A program section consists of several blocks. A program section starts

with a program number and ends with a program end code.

 



Program number O0001 ;

Block 1 N1 G91 G00 X120.0 Y80.0 ;

Block 2 N2 G00 X100.T02 ;

: :

Block n Nn M2 ;

Program end M30 ;

A block contains information necessary for machining, such as a move

command or coolant on/off command.Specifying a value following a

slash (/) at the start of a block disables the execution of some blocks (see

“optional block skip” in Section 13.2).

D Program components

D Program section

configuration
