Series 16i/18i/160i/180i - PA Operators manual Page 75

Operators manual

Page of 756

/ 756

PROGRAMMING

6. REFERENCE POSITION

B–63124EN/01

The reference point is a certain fixed point on the machine. It is defined

as the point, to which a tool can be moved easily by the reference point

return.

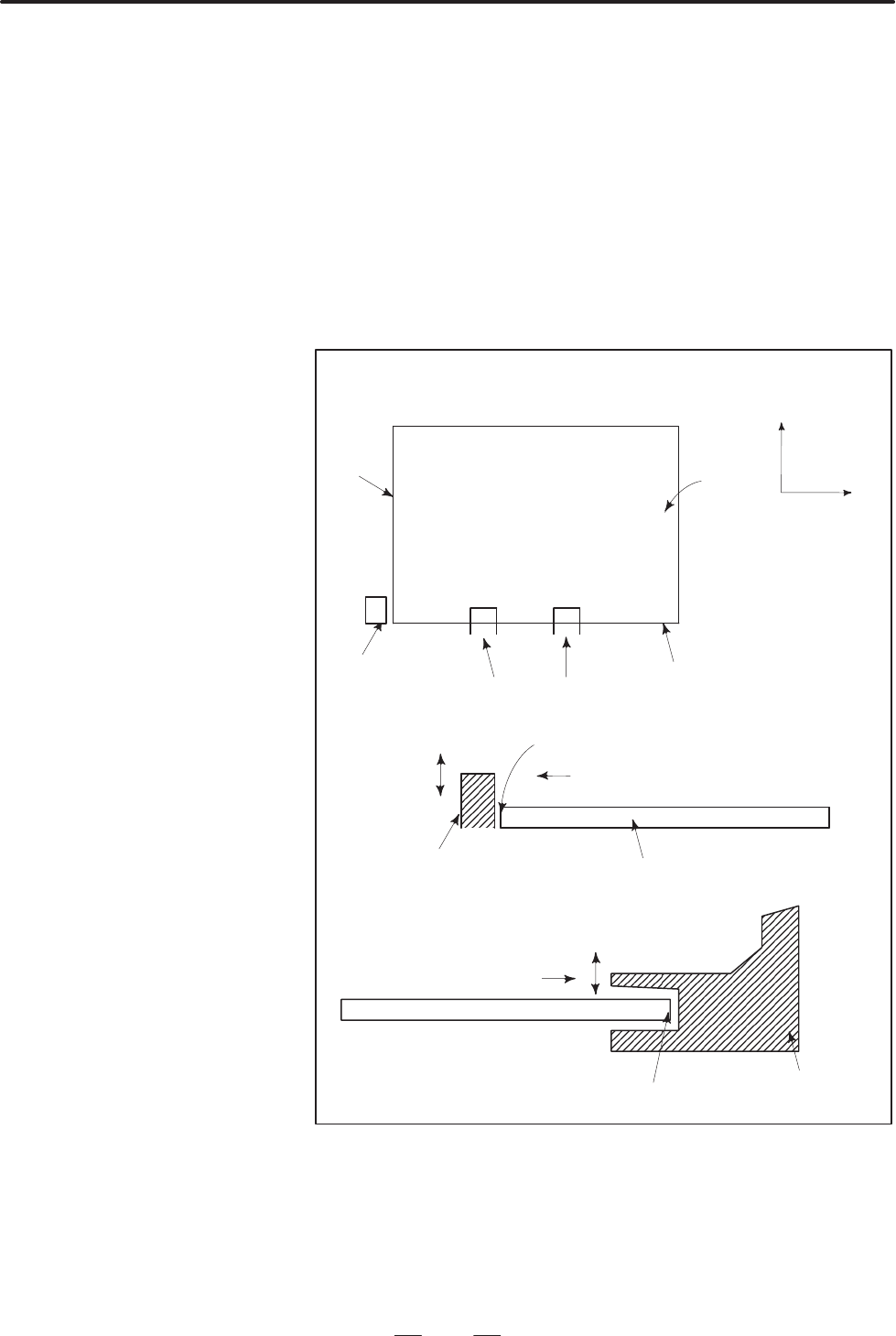

When setting a workpiece to be machined to general turret punch press,

the workpiece is held by the workpiece holders after positioning it by

applying the end face of the workpiece to the end locator and workpiece

holders mounted on the machine as illustrated below.

Face

Workpiece

End locator

Workpiece holder

Face A

Face B

Apply face B to the end locator.

End locator

Workpiece

Apply face A to workpiece holder.

Face A

Workpiece holder

Fig.6.1 (a)

Generally, the distance between the reference point and the end locator as

well as the distance between the reference point and the workpiece holders

are intrinsically determined according to machines, and they are separated

from each other by a fixed distance.

6.1

REFERENCE

POSITION RETURN

General
