PROGRAMMING

5. FEED FUNCTIONS

B–63124EN/01

This function enables producing a smooth cutting surface by decelerating

tool movement automatically between an inside corner and an inside arc

to reduce the load on the cutter during cutter compensation.

When G62 is specified, and the tool path with cutter compensation

applied forms an inner corner, the feedrate is automatically overridden

at both ends of the corner.

There are four types of inner corners (Fig. 5.4.2.1 (a)).

xθxθpx178, in Fig. 5.4.2.1 (a)

θp is a value set with parameter No. 1711. When θ is approximately

equal to

θp, the inner corner is determined with an error of 0.001,or

less.

Cutter center path

Tool

Programmed path

1. Straight line–straight line 2. Straight line–arc

3. Arc–straight line 4. Arc–arc

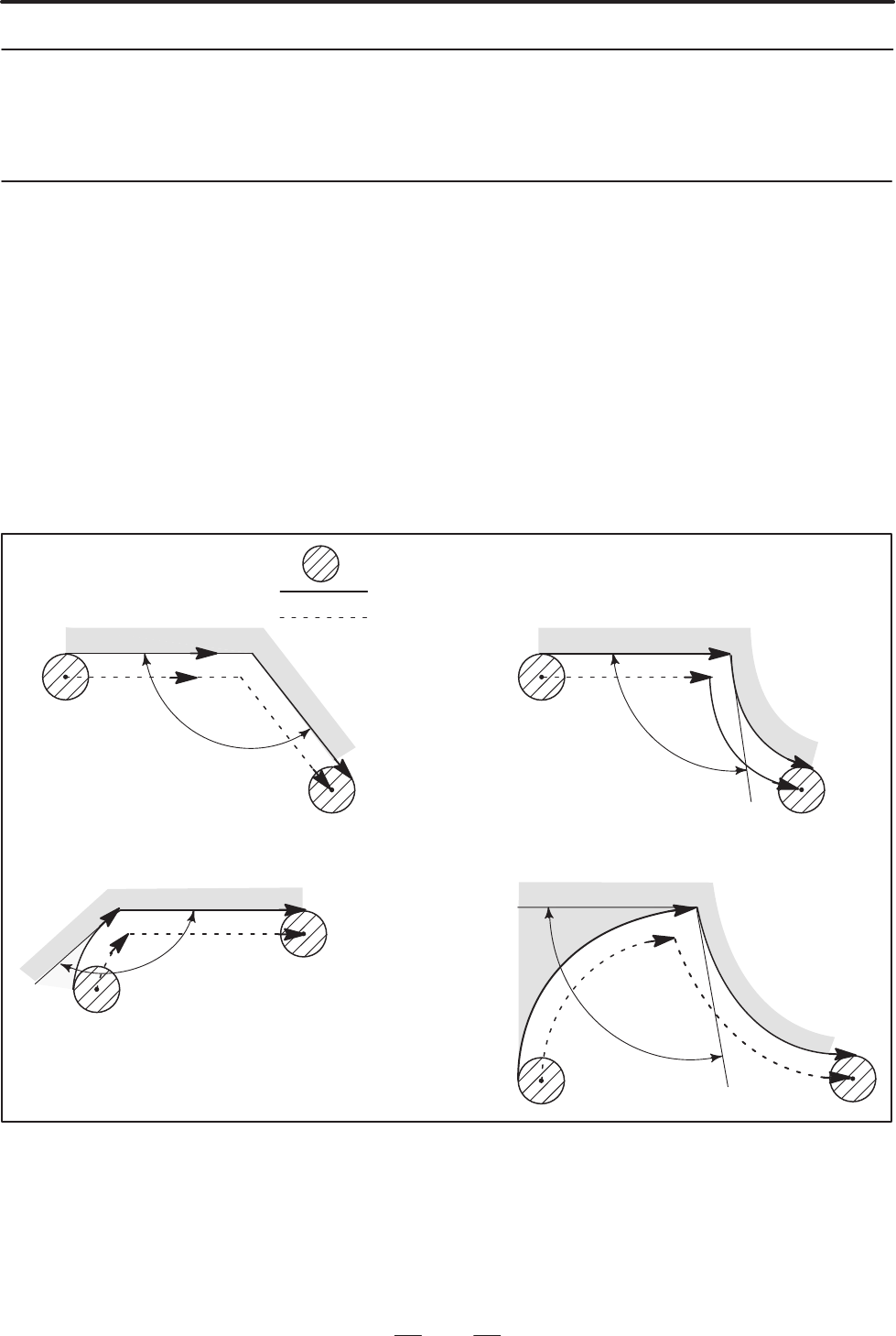

Fig. 5.4.2.1 (a) Inner corner

5.4.2

Automatic Override for

Inner Corners

5.4.2.1

Inside–corner Override

(G62)

Explanations

D Override condition
