PROGRAMMING

B–63124EN/01

14. FUNCTIONS TO SIMPLIFY

PROGRAMMING

147

dy : Punch point intervals in the Y-axis direction

This is commanded by a positive number when the first punch point

in the Y-axis direction is located in the +Y direction as viewed from

the start point.

nx : Number of punch points in the X-axis direction (1 to 9999)

The start point is excluded from the number of punch points.

ny : Number of punch points in the Y-axis direction (1 to 9999)

The start point is excluded from the number of punch points.

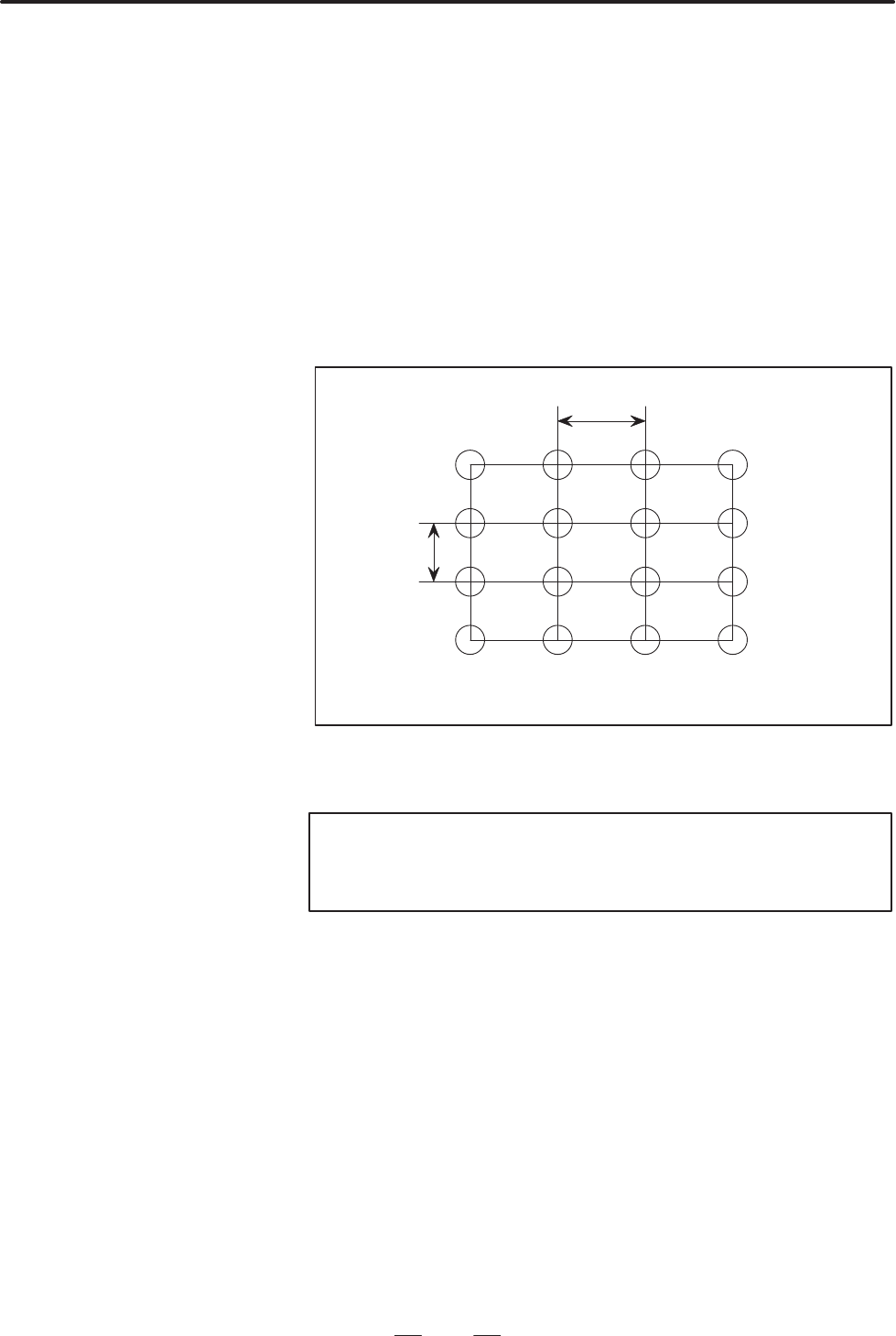

N551X500.0Y100.0 ;

N552G78I-30.0P3J20.0K3 ;

#3x #2x #1x (500, 100)

#3y

#2y

#1y

Start point

If it is not desired to punch the start point, command N551 block as

N551G72X500.0Y100.0;

NOTE

If the number of punch points is 0 in the X-axis or Y-axis

direction, alarm (No. 4505) is produced.

Examples
