Series 16i/18i/160i/180i - PA Operators manual Page 78

Operators manual

Page of 756

/ 756

PROGRAMMING

B–63124EN/01

6. REFERENCE POSITION

Tools ca be returned to the floating reference position.

A floating reference point is a position on a machine tool, and serves as

a reference point for machine tool operation.

A floating reference point need not always be fixed, but can be moved as

required.





Command of the intermediate position of the floating reference

position

(Absolute command/incremental command)



A floating reference point becomes a machine coordinate position

memorized by pressing the soft key

[SET FRP] on the current positions

display screen (see III–11.1.8). The G30.1 block first positions the tool

at the intermediate point along the specified axes at rapid traverse rate,

then further moves the tool from the intermediate point to the floating

reference point at rapid traverse rate.

Before using G30.1, cancel cutter compensation and tool length

compensation.

A floating reference point is not lost even if power is turned off.

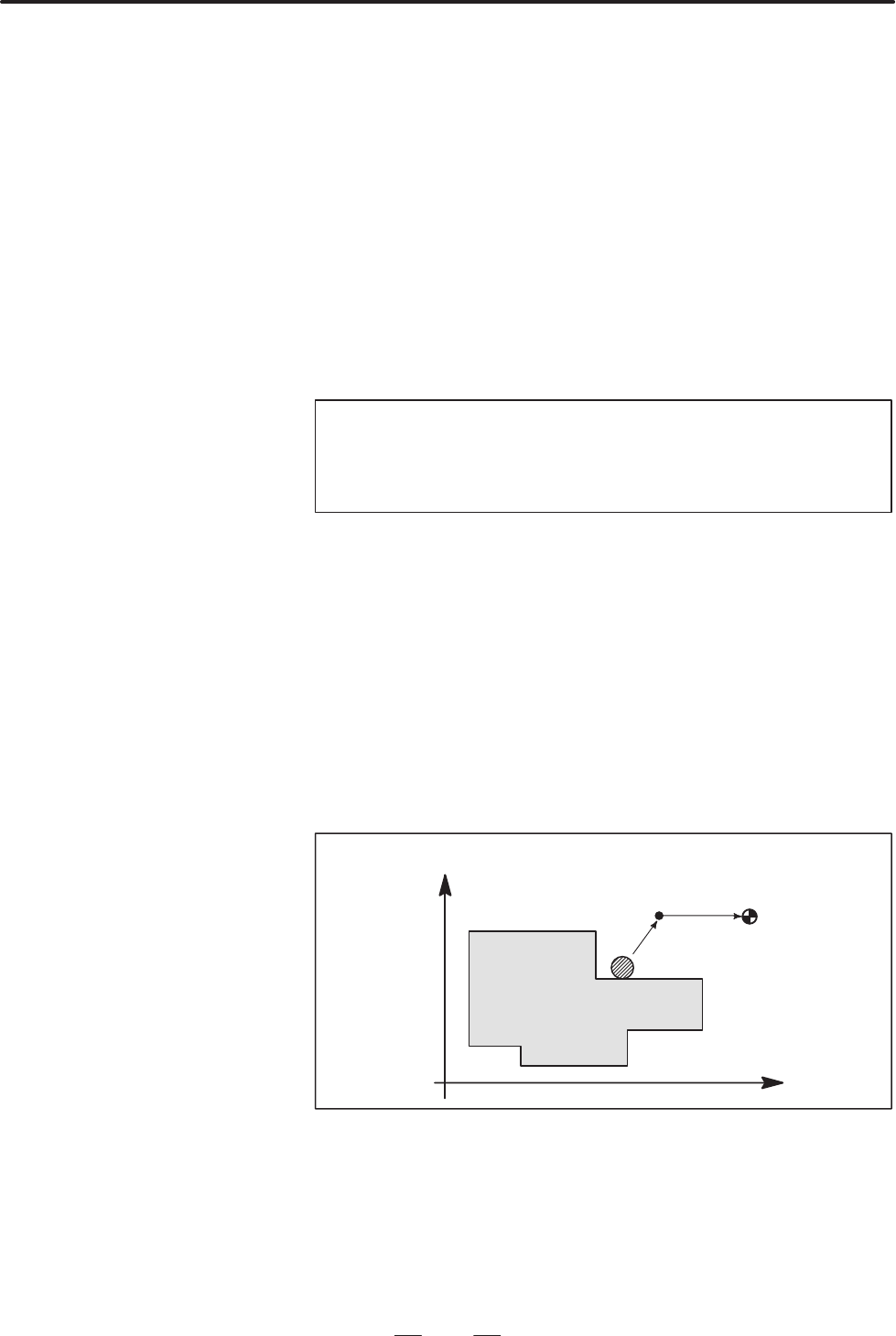

Workpiece

Intermediate position (50,40)

Floating reference

position

G30.1 G90 X50.0 Y40.0 ;

6.2

FLOATING

REFERENCE

POSITION RETURN

(G30.1)

General

Format

Explanations

Examples
