PROGRAMMING

B–63124EN/01

4. INTERPOLATION FUNCTIONS

Tools can move along a line

F_:Speed of tool feed (Feedrate)

_:For an absolute command, the coordinates of an end point ,

and for an incremental commnad, the distance the tool moves.

G01 _F_;

A tools move along a line to the specified position at the feedrate

specified in F.

The feedrate specified in F is effective until a new value is specified. It

need not be specified for each block.

The feedrate commanded by the F code is measured along the tool path.

If the F code is not commanded, the feedrate is regarded as zero.

The feedrate of each axis direction is as follows.

Fa +

Fg +

Feed rate of α axis direction :

L + a

) b

) g

) z

G01ααββγγζζ

Ff ;

Feed rate of Γ axis direction :

Feed rate of Β axis direction :

Feed rate of Ζ axis direction :

100.0

200.00

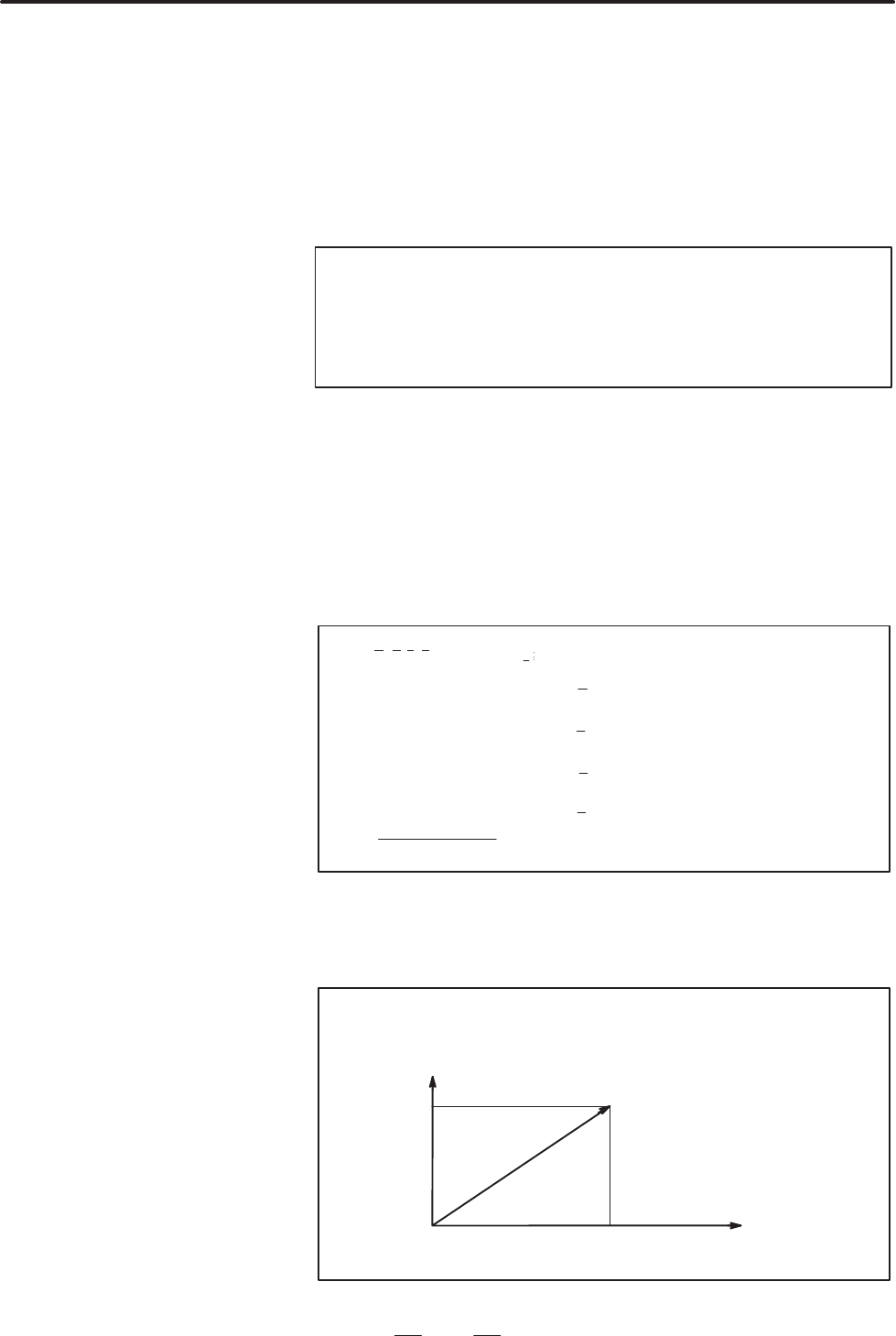

G91 G01X200.0Y100.0F200.0 ;

Y axis

(End position)

X axis

(Start position)

4.2

LINEAR

INTERPOLATION

(G01)

Format

Explanations

Examples

D Linear interpolation
