PROGRAMMING

16. CUSTOM MACRO

B–63124EN/01

278

A macro is created which drills H holes at intervals of B degrees after a

start angle of A degrees along the periphery of a circle with radius I.

The center of the circle is (X,Y). Commands can be specified in either

the absolute or incremental mode. To drill in the clockwise direction,

specify a negative value for B.

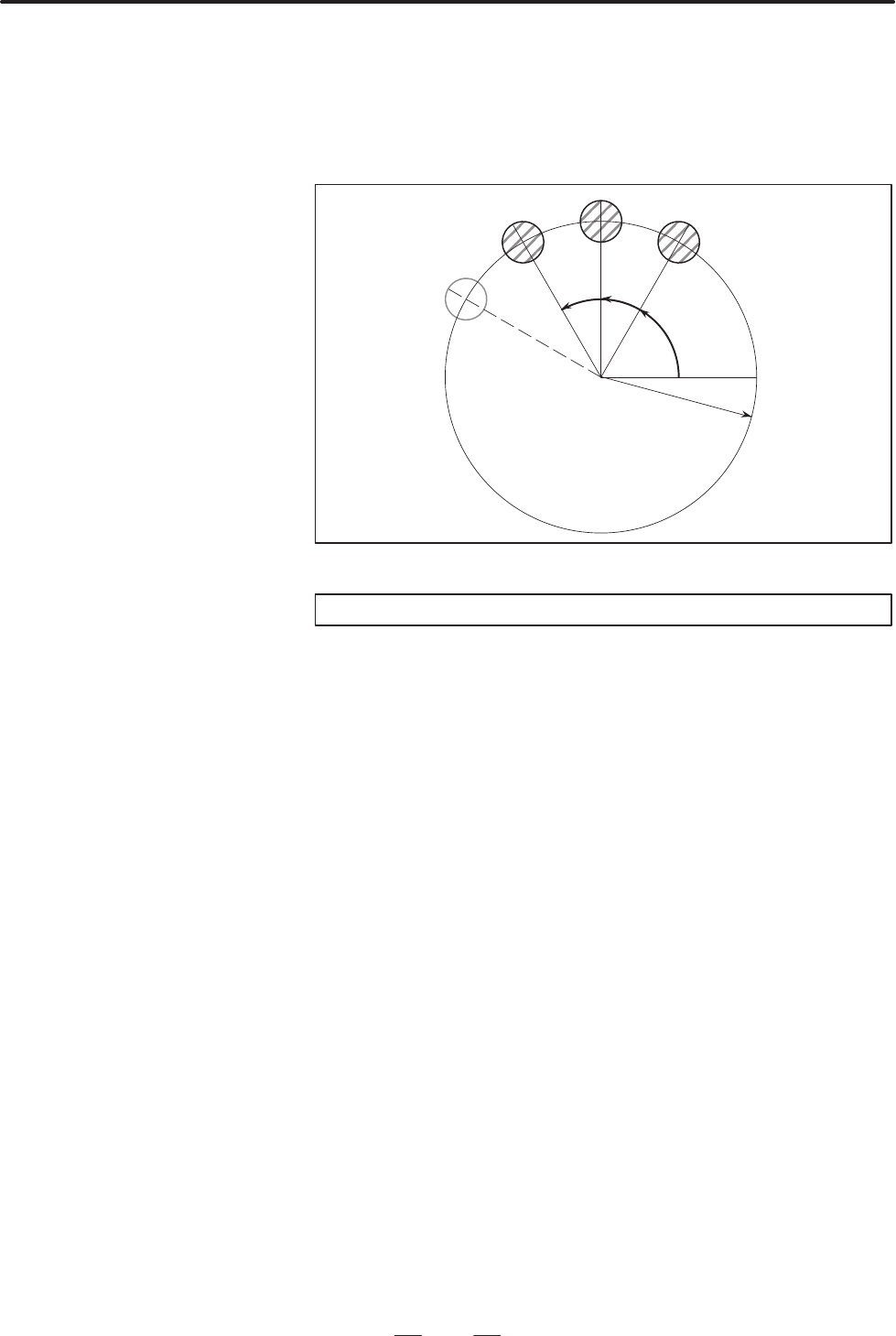

H=3

H=4

H=2

H=1

Center (X,Y)

Radius I

G65 P9100 X x Y y Z z R r F f I i A a B b H h ;

X: X coordinate of the center of the circle (absolute or incremental

specification) (#24). .

Y: Y coordinate of the center of the circle (absolute or incremental

specification) (#25). .

Z : Hole depth (#26). . . .

R: Coordinates of an approach point (#18)

F : Cutting feedrate (#9)

I : Radius of the circle (#4)

A: Drilling start angle (#1)

B: Incremental angle (clockwise when a negative value is specified)

(#2). . . . . . . . . . . . .

H: Number of holes (#11)

Sample program

(bolt hole circle)

D Calling format
