Series 16i/18i/160i/180i - PA Operators manual Page 660

Operators manual
12. GRAPHICS FUNCTION
B–63124EN/01
OPERATION
650

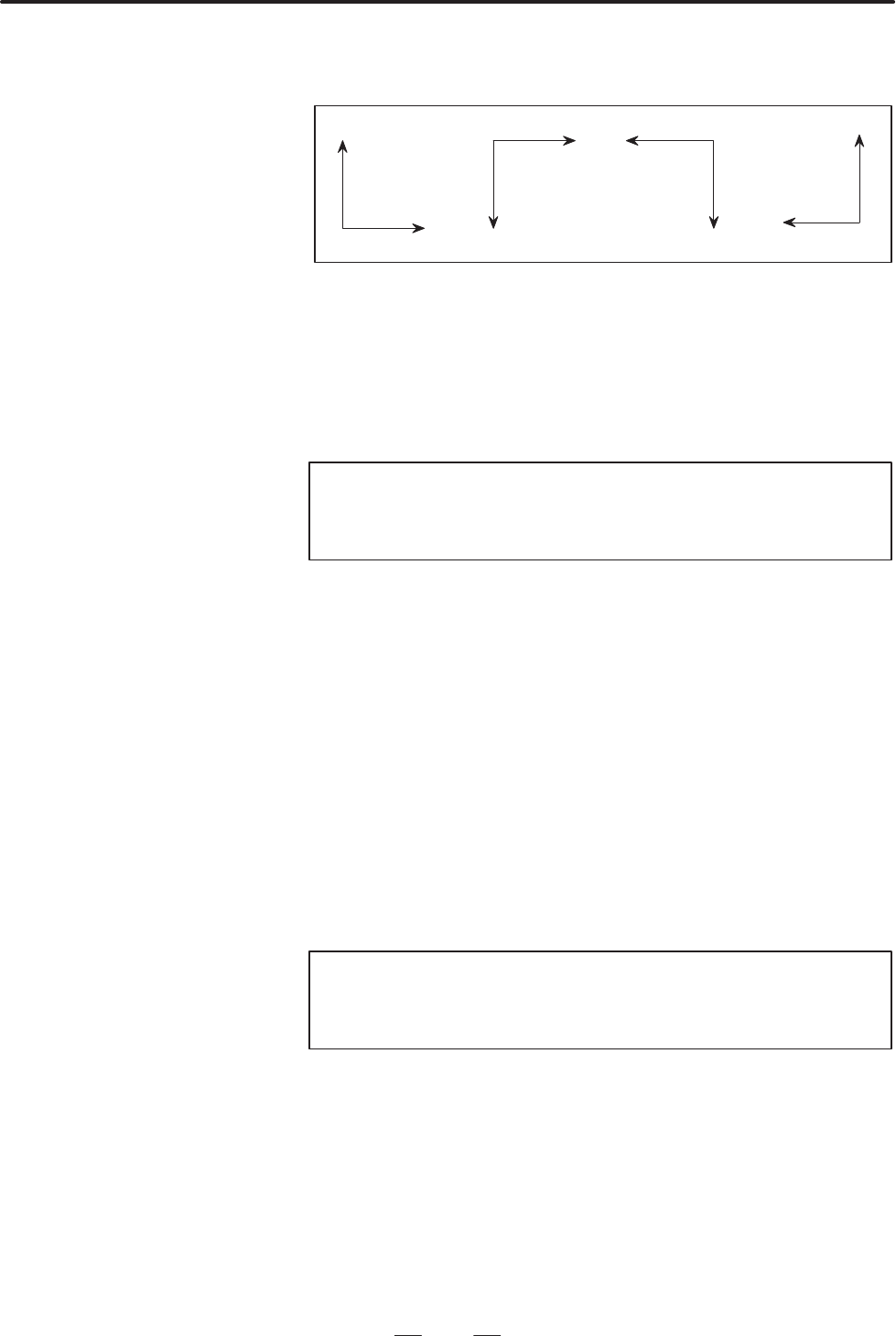

(a) Drawing plane
This parameter specifies a plane for drawing.
X
Y
P=0 P=1
P=2
P=3
0
Y
Y
Y
X
X
X
0
0
0
(b)Drawing range (maximum and minimum values)
This parameter specifies the desired drawing range for each axis using
the maximum and minimum values. Specifying these values
automatically determines the magnification for a screen so that the
drawing can be made using the whole drawing range. The center of
the drawing range matches that of the screen during drawing. (Setting:
0 to "99999999, unit is specified in the parameter)
NOTE
The drawing range cannot be specified for the Z-axis,
however.
(c) Magnification
This parameter specifies the screen magnification. The magnification
refers to the magnification to the center of the screen.
Specifying the drawing range in (b) automatically determines the
effective magnification. To magnify part of a figure, specify another
magnification based on the automatically specified value.
(Setting: 0 to 10000 multiplied by 0.01)
(d)Coordinates based on the center of a screen
This parameter specifies the coordinates in the workpiece coordinate
system whose origin matches the center of the screen.
Specifying the drawing range in (b) automatically determines the
coordinates. To magnify part of the figure, specify other coordinates
based on the automatically specified coordinates.
(Setting: 0 to "99999999, unit is specified in the parameter)
NOTE
The coordinates cannot be specified for the Z-axis,
however.
(e) Drawing end block
To display part of the programmed figure, specify the sequence
number of the end block. Once the figure is drawn, the sequence
number is automatically canceled.
