PROGRAMMING

14. FUNCTIONS TO SIMPLIFY

PROGRAMMING

B–63124EN/01

144

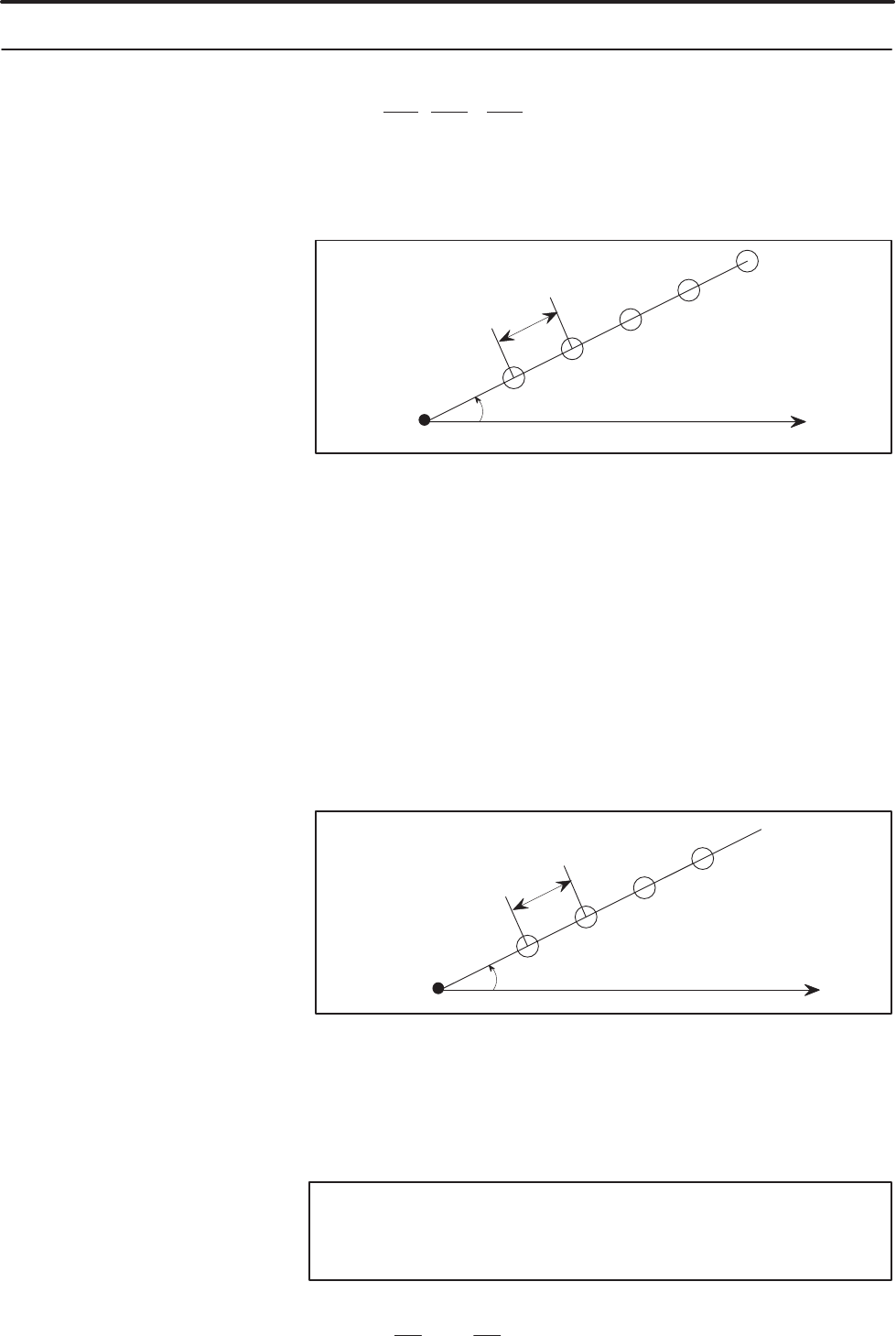

G76I d J θ K n ;

By the above command, punching is made at n pieces of points which lie

every intervals of d along the straight line which forms angle θ with

reference to the X axis, starting with the present tool position or the

position specified by G72 as the start point.

Start point

d : Punch point interval

The unit is input unit.

If this value is commanded with negative, punching is made in the

θ + 180

° direction.

θ : Angle which is formed between the +X axis and the line connecting

the start point and punch points

The unit is input unit (deg), and the counterclockwise direction is

commanded by a positive number.

n : Number of punch points (1 to 9999)

N531G00G90X50.0Y10.0T05 ;

N532G76I30.0J30.0K4 ;

30°

(50, 10)

N532 block may be commanded as

G76I–30.0J210.0K4;

or G76I30.0J–330.0K4;

If it is not desired to punch the start point, command as

N531G72G90X50.0Y10.0;

N532G76I30.0J30.0K4T05;

NOTE

If the number of punch points is 0, alarm (No. 4503) is

produced.

14.1.3

Line at Angle (G76)

Examples
