Series 16i/18i/160i/180i - PA Operators manual Page 461

Operators manual

Page of 756

/ 756

OPERATION

B–63124EN/01

6. SAFETY FUNCTIONS

451

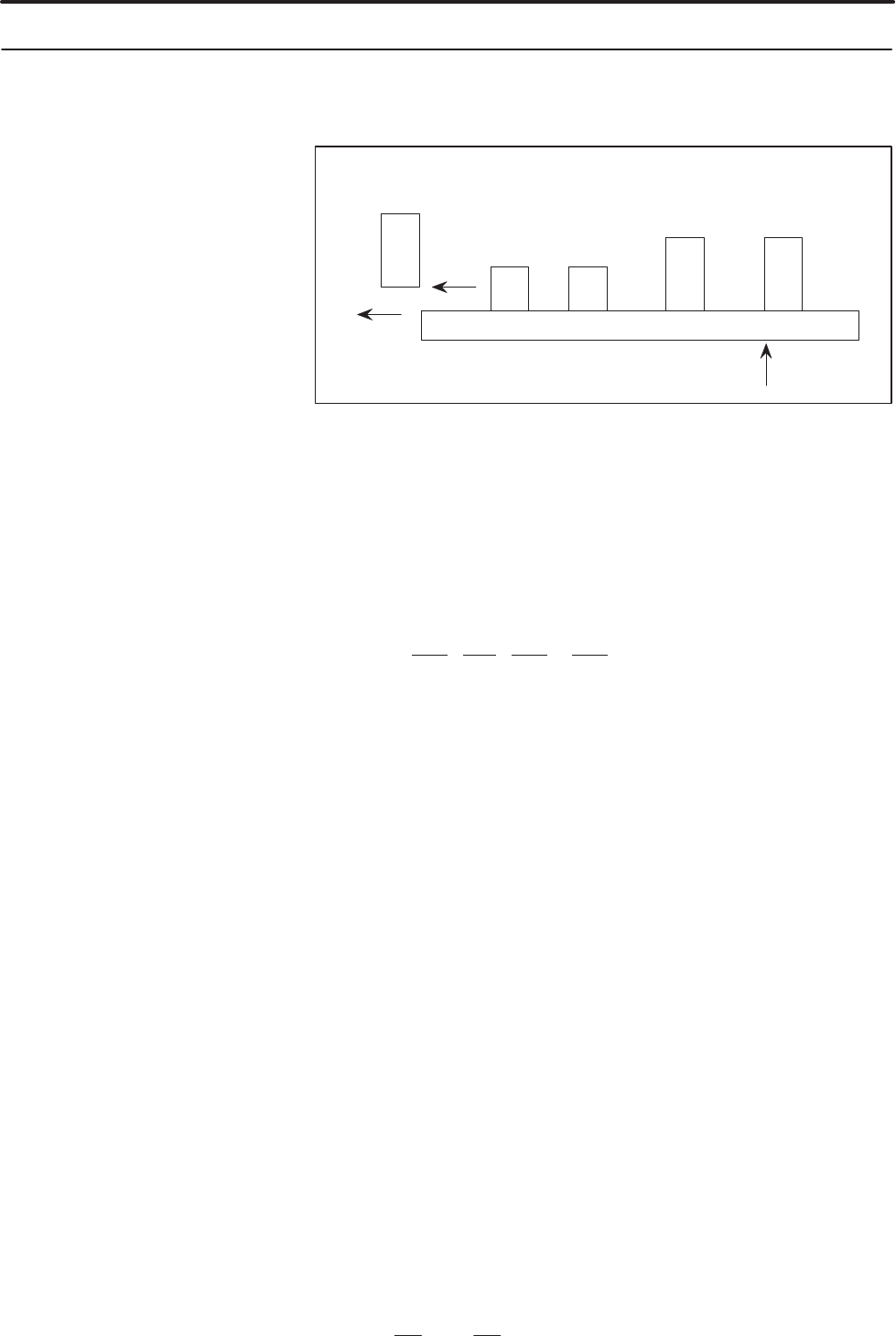

The detector on the machine automatically detects the positions of the

workpiece holders mounted on the carriage. Values representing the

detected positions are then set in the safety zone parameters.

# 1

# 2

# 3 # 4

Carriage

Detector (secured to the machine)

Fig. 6.5.5 (a)

The signal for detecting the position of the workpiece holders turns on and

off as workpiece holders #1 to #4 pass the detector as shown in Fig. 6.5.5

(a). The safety zone is determined from the signal. The position on the

X axis when the signal goes high is regarded as one end of a workpiece

holder, and the position when the signal goes low is regarded as the other

end.

Workpiece holder detection command format

G32X x

F f P p Q q ;

G32 is specified to detect the positions of workpiece holders. Before G32

can be specified, the workpiece holder position detector must be

activated.

Before detection is started, the X-axis move command must be specified

following address X. Either the positive or negative move direction is

allowed. If a positive move command is specified, the position at which

detection starts must be in the negative side with respect to workpiece

holder #1. Sufficient distance must be kept between the position at which

detection starts and workpiece holder #1 to enable stability of speed

before workpiece holder #1 is reached. Workpiece holders #1, #2, #3, and

#4 are detected in that order. If a negative move command is specified,

the workpiece holders are detected in the reverse order starting from #4.

The other conditions are the same as those used for a positive move

command.

The feed rate during detection is specified with F, in the same way as for

ordinary interpolation.

The position of a workpiece holder is obtained from the machine positions

indicated by the rising and falling edges of the workpiece holder detection

signal. There is a difference between the indicated machine position and

actual machine position because of an error such as a lag in the servo

system. This error must be compensated with numeric values following

addresses P and Q. The compensating value for the position on the rising

edge of the workpiece holder detection signal is set following address P,

and the compensating value for the position on the falling edge is set

following address Q.

The lag in the servo system is obtained from the following equations:

6.5.5

Automatic Setting of

the Safety Zone
