Series 16i/18i/160i/180i - PA Operators manual Page 186

Operators manual

Page of 756

/ 756

PROGRAMMING

B–63124EN/01

14. FUNCTIONS TO SIMPLIFY

PROGRAMMING

175

Specifying the position from which machining multiple products restarts

with address P in a block in which the G73 or G74 command for

machining multiple products is specified enables machining multiple

products to restart from the specified position.

Command format:

G73 (G74) W w

Q q P p ;

w : Macro number

q : Machining sequence

p : Position from which machining restarts

A P code specifies the position from which machining

multiple products restarts in a block where a G73 or G74

command is specified and a Q code is used to specify a

machining area.

Valid setting: 1xpxtotal number of products to be

machined

² Q4

² Q2

G98X–Y–I–J–P3K1 ;

U90 ;

V90 ;

G75W90Q–P5 ;

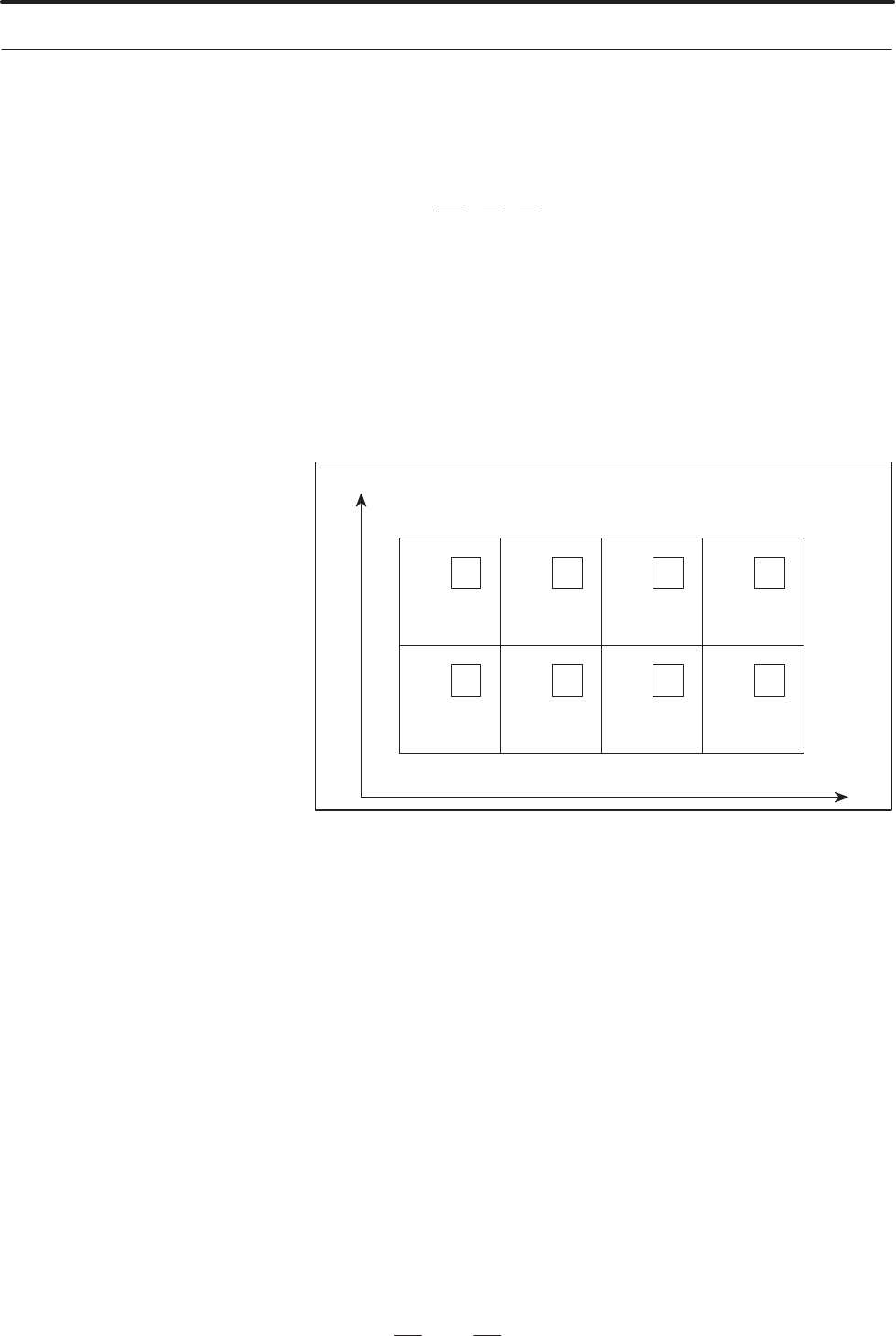

In the above program, products are machined in the order specified by the

following Q command.

(1)When machining restarts

(a) Q1 command: Products are machined in the order of E, F, G, and

(b)Q2 command: Products are machined in the order of H, G, F, and

(d)Q4 command: Products are machined in the order of B, C, and D.

14.5.4

Command for

Restarting Machining

Multiple Products

Examples
