Series 16i/18i/160i/180i - PA Operators manual Page 153

Operators manual

Page of 756

/ 756

PROGRAMMING

14. FUNCTIONS TO SIMPLIFY

PROGRAMMING

B–63124EN/01

142

G26I r J θ K n ;

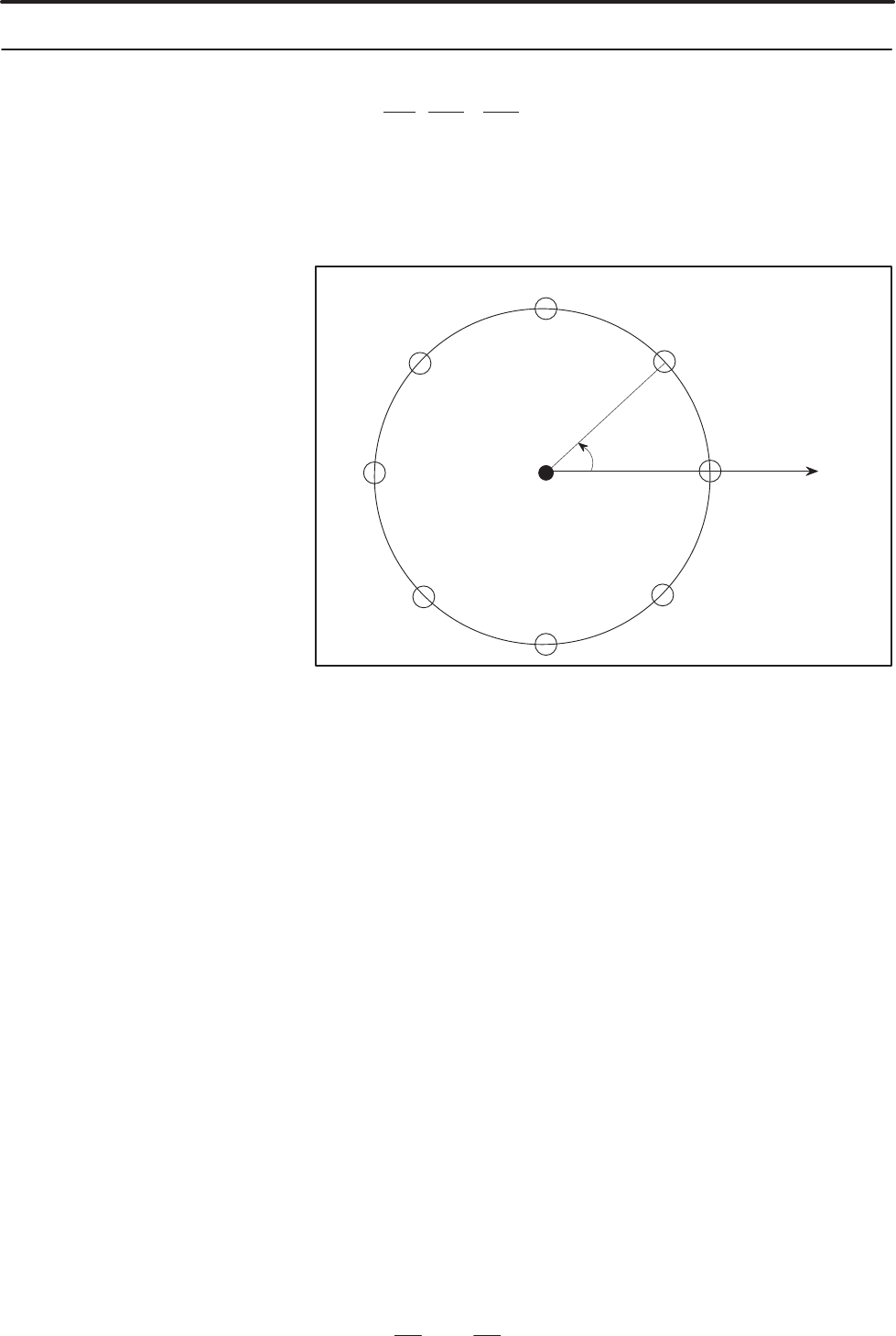

This G26 punches n pieces of equally divided points on the

circumference, starting with the point which forms angle θ with the

reference to X axis on the circumference having radius r with the present

tool position or the position commanded by G72 being set as the circle

center.

Center

r : Radius of circle

The unit is input unit.

It is commanded by a positive number.

θ : Angle between the first punch point and +X axis

This unit is input unit (deg), and the counterclockwise direction is

commanded as positive.

n : Number of punch points ("1 to "9999)

Counterclockwise punching is made by a positive number, while

clockwise punching is made by a negative number.

14.1.2

Bolt Hole Circle (G26)
